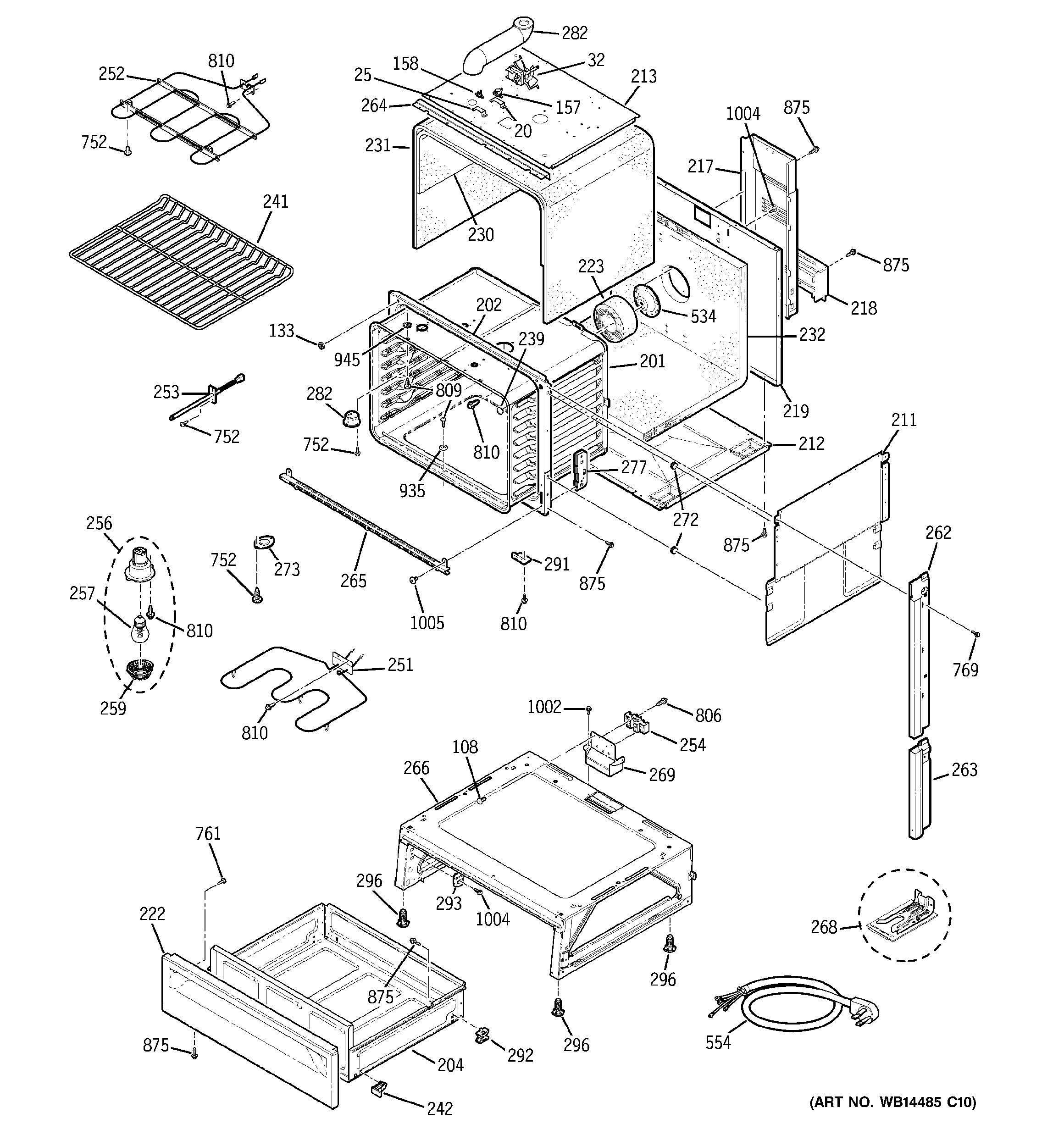

JCSP38DN2BB BODY PARTS

JCSP38DN2BB BODY PARTS

Written by

in

JCSP38DN2BB BODY PARTS

Products

PositionProduct
20WB02T10270 GE Oven Switch Bracket
25GEN WB02K5238
32WB26T10032 GE Oven Fan Assembly
108WB1X5364 GE Oven Mounting Screw
133WB01T10022 GE Oven Door Bumper
157WB24T10117 GE Oven Limit Switch
158WB24T10118 GE Oven Limit Switch Bimetal
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
204WB55T10180 GE Oven Drawer Body Assembly
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
213GEN WB02T10414
217WB34K10049 GE Oven Rear Cover Wire
218WB34T10054 GE Oven Right Rear Lower Cover Wire
219WB02X20948 GE Oven Back Insulation Retainer
222GEN WB56T10267
222GEN WB56T10268
230WB35T10126 GE Oven Insulation Top
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
239PLUG ROUND
241WB48T10095 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
251WB44K10009 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
254WB17T10011 GE Oven Terminal Block
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
262WB07T10520 GE Right Side Trim (Black)
262WB07T10521 GE Vertical Side Light Trim (Black)
262WB07T10522 GE Oven Trim Vertical Side RT (White)
262WB07T10523 GE Oven Vertical Trim Side Left (White)
263WB07T10632 GE Vertical Left Side Trim
263WB07T10635 GE Oven Vertical Side Trim RT (White)
263WB07T10636 GE Oven Vertical Side Trim (White)
263TRIM VERT SIDE RT (BK)
264GEN WB07T10475
265WB07T10516 GE Oven Front Trim Assembly
266WB63X28540 GE Base Assembly Rivet
268GEN WB02T10416
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10083
282WB38T10029 GE Oven Vent Tube Assembly
282WB38T10027 GE Oven Tube Vent Assembly
291GEN WB02X9152
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296GEN WB01M0018
296WB02X10521 GE Oven Leveling Leg
534WB26T10015 GE Oven Cavity Support
554WB08T10029 GE Range Cord 4' 3-Prong
752WB1K5200 GE Oven Screw 340531
761WB1K5029 GE Oven Screw
761WB1K5185 GE Oven White Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
769WB1X500D GE Oven Screw Package
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
