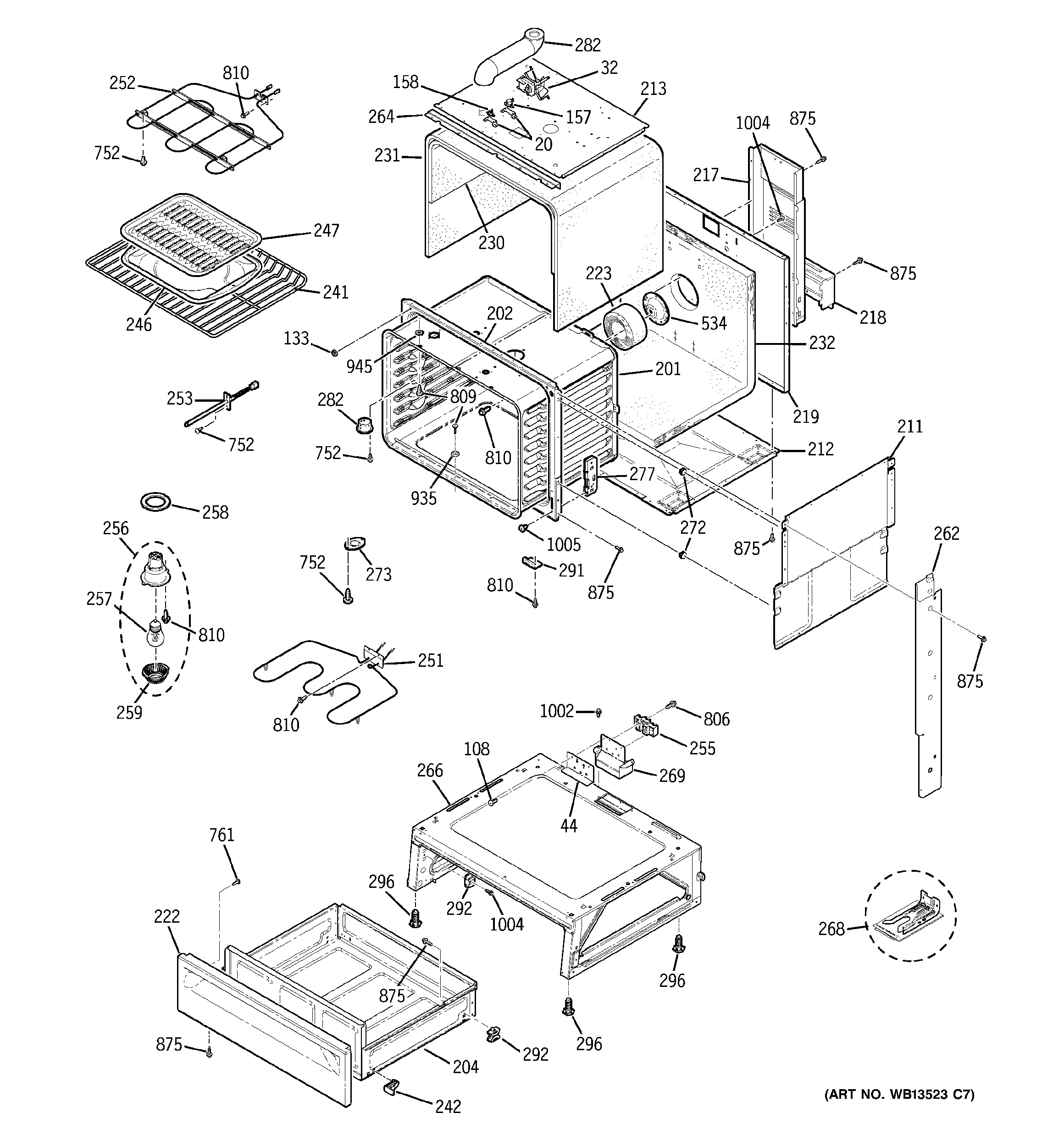

JCSP38WK1WW BODY PARTS

JCSP38WK1WW BODY PARTS

Written by

in

JCSP38WK1WW BODY PARTS

Products

PositionProduct
20WB02T10270 GE Oven Switch Bracket
20GEN WB02K5238
32WB26T10032 GE Oven Fan Assembly
44WB02T10242 GE Bracket
108WB1X5364 GE Oven Mounting Screw
133WB01T10052 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
157WB24T10117 GE Oven Limit Switch
158WB24T10118 GE Oven Limit Switch Bimetal
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
211GEN WB02K5306
212RETAINER INSLN BTM
213GEN WB02T10269
217WB34K10049 GE Oven Rear Cover Wire
218WB34T10054 GE Oven Right Rear Lower Cover Wire
219GEN WB56T10136
222GEN WB56T10024
230GEN WB35T10073
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10095 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K10009 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
255WB17T10011 GE Oven Terminal Block
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
258GEN WB04T10021
259WB25T10002 GE Oven Bulb Lens
262GEN WB07T10396
262GEN WB07T10395
264GEN WB07T10475
266WB63X28540 GE Base Assembly Rivet
268GEN WB02T10137
269TERMINAL BOX
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10053
282WB38T10027 GE Oven Tube Vent Assembly
282WB38T10029 GE Oven Vent Tube Assembly
291GEN WB02X9152
292WB02X33180 GE Oven Drawer Glide
292WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
296GEN WB01M0018
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
761WB1K5185 GE Oven White Screw
761WB1K5029 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
