JCSP39BW2BB OVEN DOOR

JCSP39BW2BB OVEN DOOR

Written by

in

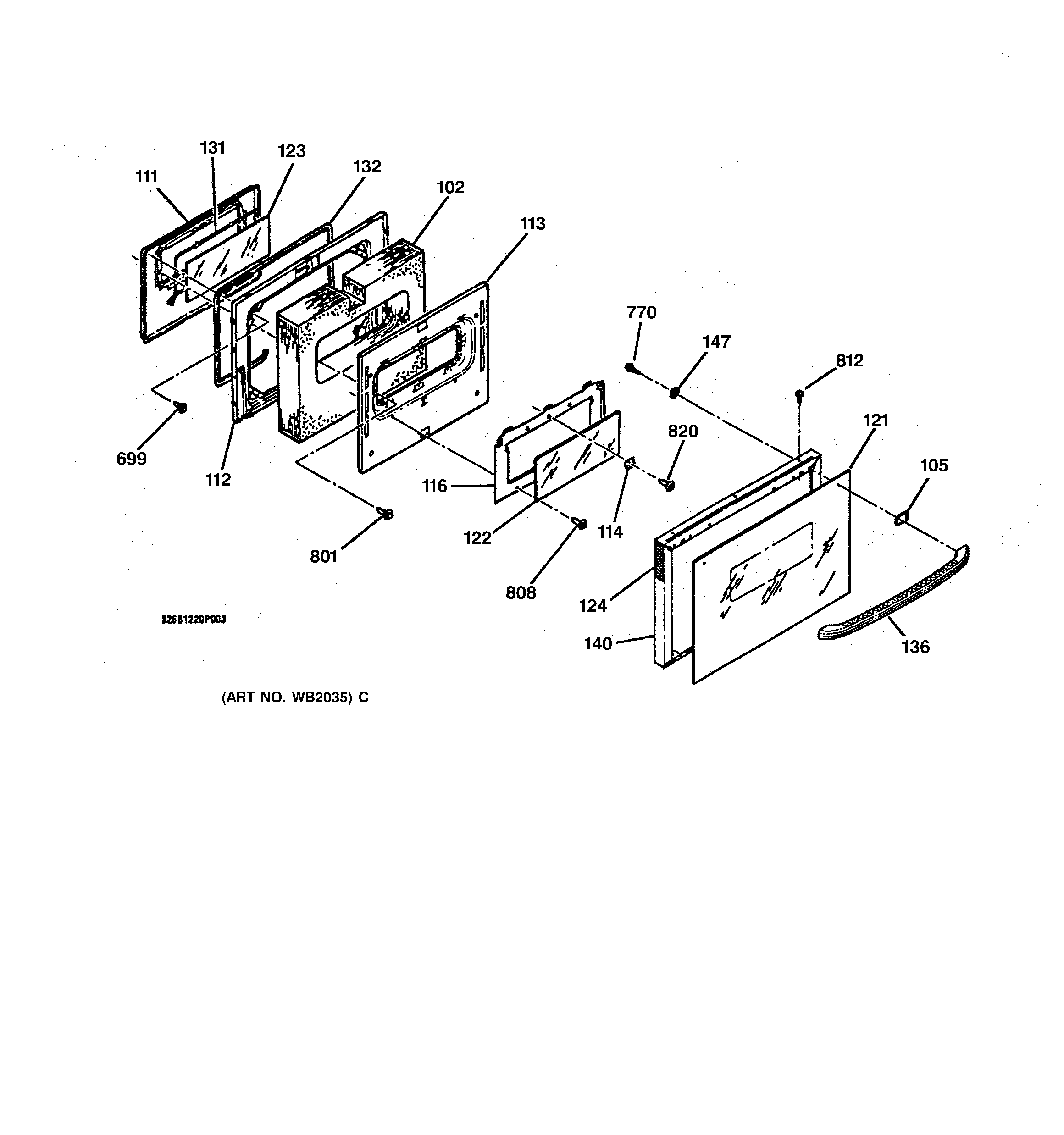

JCSP39BW2BB OVEN DOOR

Products

PositionProduct
102OVEN DOOR INSULATION
105HANDLE TRIM-BLACK
111GEN WB55T10005
112GEN WB55T10003
113INSULATION RETAINER
114GEN WB02M0001
116GEN WB02X9178
122GEN WB57K5141
123CENTER GLASS
124GEN WB35K5103
131WB2X9168 GE Oven Seal
132WB2K5319 GE Oven Door Gasket
136GEN WB15X5227
140GEN WB55K5054
147GEN WB02K5312
699WB1M1 GE Oven Screw
770WB1K5072 GE Oven Screw
808WB1X1116 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
812SCREW-BLACK
820WB1X1424D GE Oven Screw Package
