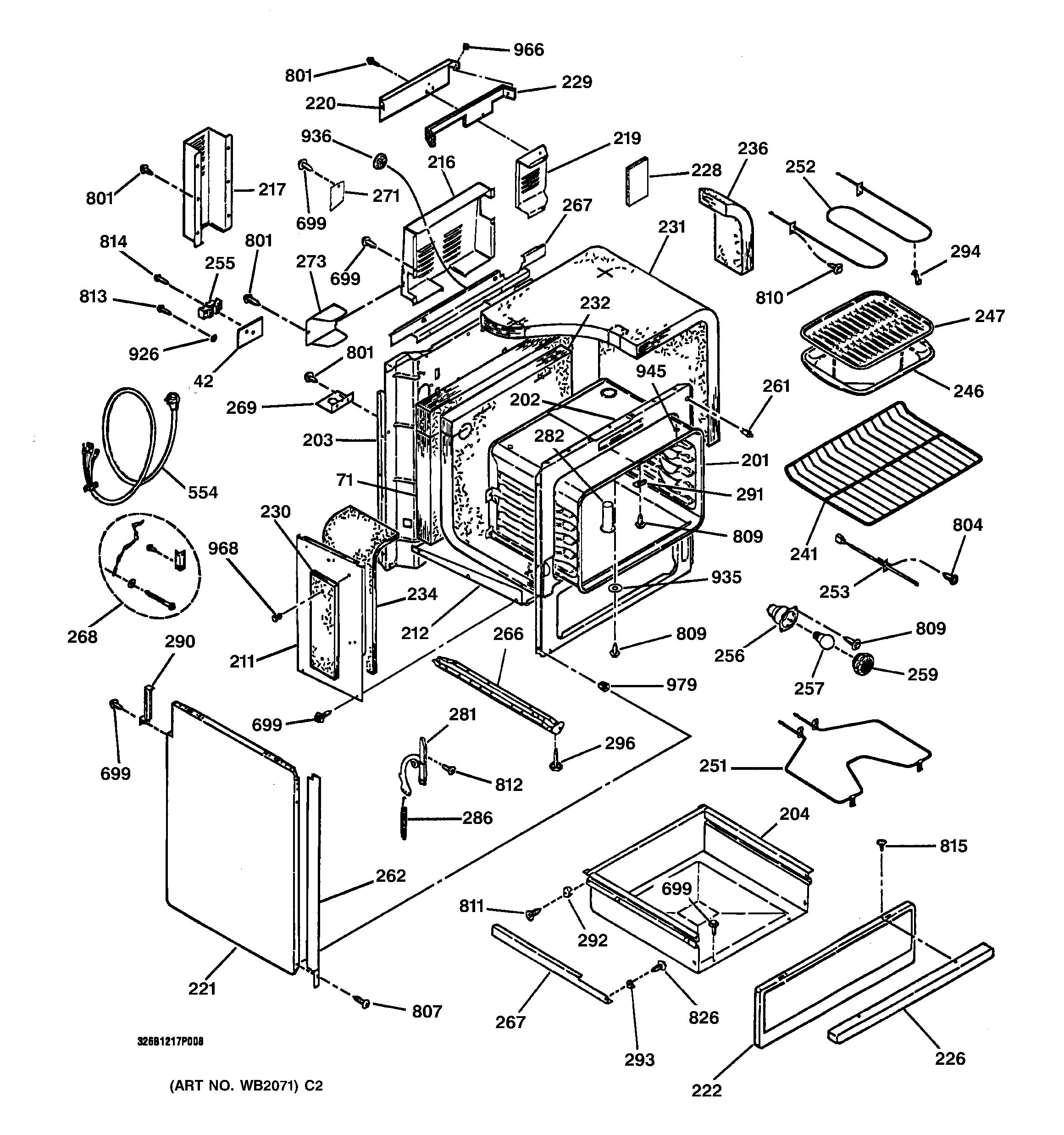

JCSP39WW3WW BODY & DRAWER PARTS

JCSP39WW3WW BODY & DRAWER PARTS

Written by

in

JCSP39WW3WW BODY & DRAWER PARTS

Products

PositionProduct
42GEN WB34K5251
42GEN WB34K5250
42UNKNOWN
71GEN WB35K5075
201GEN WB63T10002
202GEN WB63T10028
203GEN WB63M0056
204GEN WB58X0065
211GEN WB02M0038
212GEN WB02T10077
216UNKNOWN
217UPPER WIRE COVER
219GEN WB34K5221
220GEN WB34K5262
221GEN WB63K5195
221GEN WB63K5192
222GEN WB56K5017
226GEN WB15K5082
228INSULATION BARRIER
229GEN WB35K5136
230GEN WB35M0014
231GEN WB02X9676
232GEN WB35K5113
234OV SIDE FRT INSULATION
236INSULATION-TOP SIDES
241GEN WB48X0208
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
255WB17X5095 GE Black Oven Terminal
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5514
262GEN WB07K5301
262GEN WB07K5302
266GEN WB02K5334
267GEN WB56M0003
267GEN WB02M0080
268WB2X7909 GE Oven Anti-Tip Kit
269SERVICE RANGE MTG PLATE
271UNKNOWN
273GEN WB34M0027
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
281WB14X103 GE Range Oven Left Door Hinge
282GEN WB38M0014
286OV DR SPRING
290GEN WB63M0021
291GEN WB02X9152
292GEN WB02X9146
293GEN WB02X9148
294WB2X9719 GE Oven Support Bracket Clip
296GEN WB01M0018
554GEN WB08X5034
699WB1M1 GE Oven Screw
804WB1X681 GE Oven Screw
807WB1K5166 GE White Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
811GEN WB01X1172
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
814WB1X1258 GE Oven Screw
815SCREW-BLK
826GEN WB01X1167
926GROUND WASHER
935WB1K5174 GE Oven Washer
936GEN WB02M0021
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
968GEN WB02X9393
979SPACER
