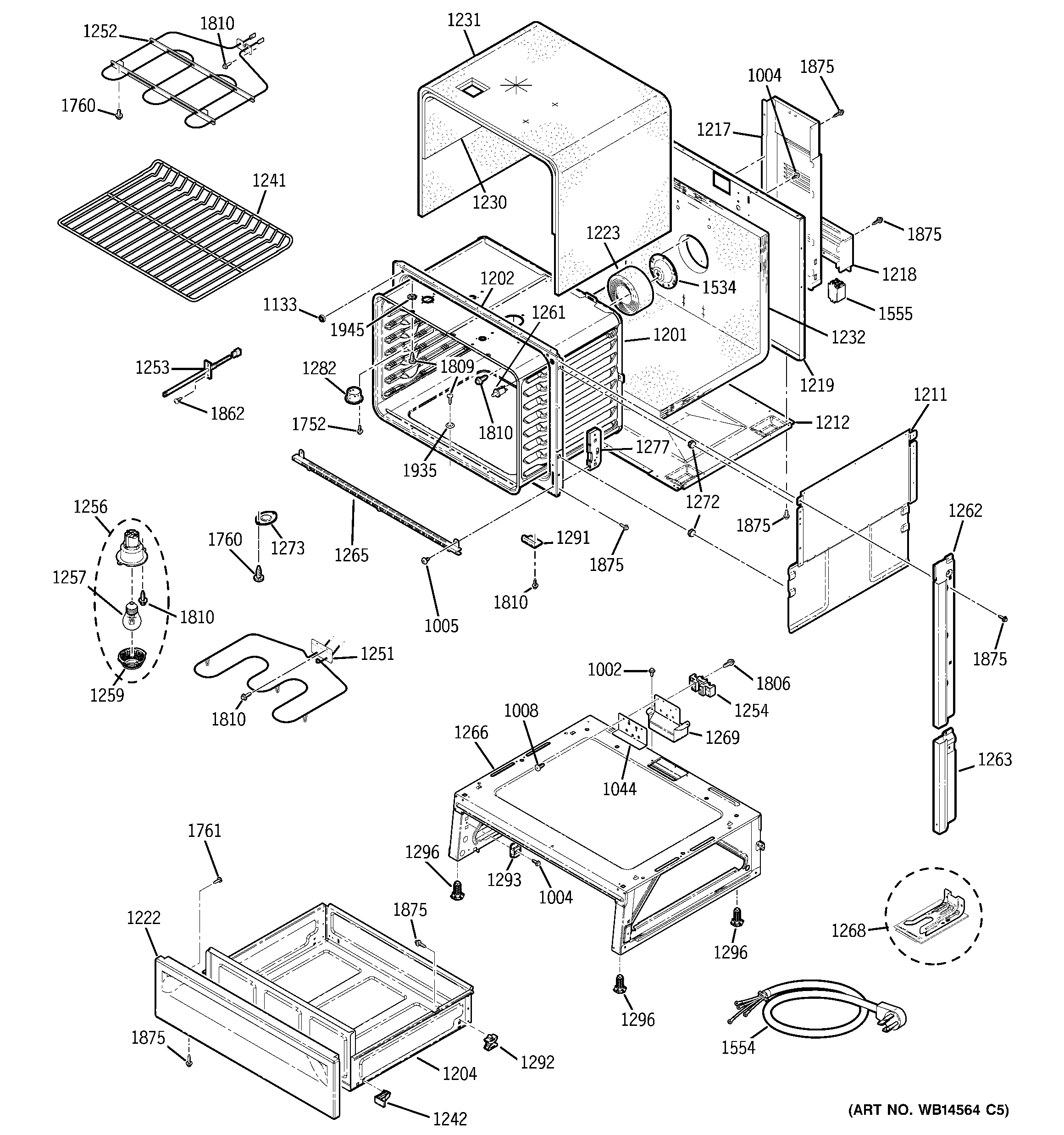

JCSP42DN1WW BODY PARTS

JCSP42DN1WW BODY PARTS

Written by

in

JCSP42DN1WW BODY PARTS

Products

PositionProduct
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1008GEN WB07K10155
1044WB02T10242 GE Bracket
1133WB01T10026 GE Oven Door Pad
1133WB01T10022 GE Oven Door Bumper
1201WRAPPER OVN CAV UPR
1202WB63T10083 GE Front Lower Frame
1204WB55T10180 GE Oven Drawer Body Assembly
1211WB02T10284 GE Oven Side Insulation Retainer
1212WB02T10372 GE Bottom Insulation Retainer
1217WB34K10049 GE Oven Rear Cover Wire
1218WB34T10054 GE Oven Right Rear Lower Cover Wire
1219WB02X20948 GE Oven Back Insulation Retainer
1222GEN WB56T10268
1222GEN WB56T10267
1230WB35T10126 GE Oven Insulation Top
1231WB35T10074 GE Oven Lower Insulation
1232WB35T10090 GE Oven Back & Bottom Insulation
1241WB48T10095 GE Oven Rack
1242WB48T10068 GE Oven Wedge Drawer
1251WB44K10009 GE Oven Bake Element
1252WB44T10043 GE Oven Broil Unit Assembly
1253WB23T10015 GE Oven Sensor Probe
1254WB17T10011 GE Oven Terminal Block
1256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
1257RANGE ONLY 40W 120V APPL BULB
1259WB25T10002 GE Oven Bulb Lens
1261WB24T10160 GE Oven High AMP SPDT Switch
1262WB07T10521 GE Vertical Side Light Trim (Black)
1262WB07T10520 GE Right Side Trim (Black)
1262WB07T10523 GE Oven Vertical Trim Side Left (White)
1262WB07T10522 GE Oven Trim Vertical Side RT (White)
1263WB07T10636 GE Oven Vertical Side Trim (White)
1263TRIM VERT SIDE RT (BK)
1263WB07T10635 GE Oven Vertical Side Trim RT (White)
1263WB07T10632 GE Vertical Left Side Trim
1265WB07T10516 GE Oven Front Trim Assembly
1266WB63X28540 GE Base Assembly Rivet
1268GEN WB02T10416
1269WB17T10021 GE Oven Mount Terminal Block
1272WB02T10034 GE Oven Body Side Support
1273GEN WB02K5365
1277GEN WB10T10083
1282WB38X33650 GE Vent Tube
1291GEN WB02X9152
1292WB02X33180 GE Oven Drawer Glide
1293WB48T10013 GE Oven Drawer Support
1296WB02X10521 GE Oven Leveling Leg
1534WB26T10015 GE Oven Cavity Support
1554WB08T10029 GE Range Cord 4' 3-Prong
1555WB18T10352 GE Oven Relay
1752WB1K5200 GE Oven Screw 340531
1760WB1X536 GE Oven Screw
1761WB1K5029 GE Oven Screw
1761WB1K5185 GE Oven White Screw
1761WB1K5062 GE Oven Screw
1761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
1806WH2X1186 GE Screw
1809WB1X1137 GE Oven Screw
1810WB1X1130 GE Oven Screw 10-32
1862GEN WB01X1178
1875WH2X930 GE Screw
1935WB1K5174 GE Oven Washer
1945WB1K5046 GE Oven Washer
