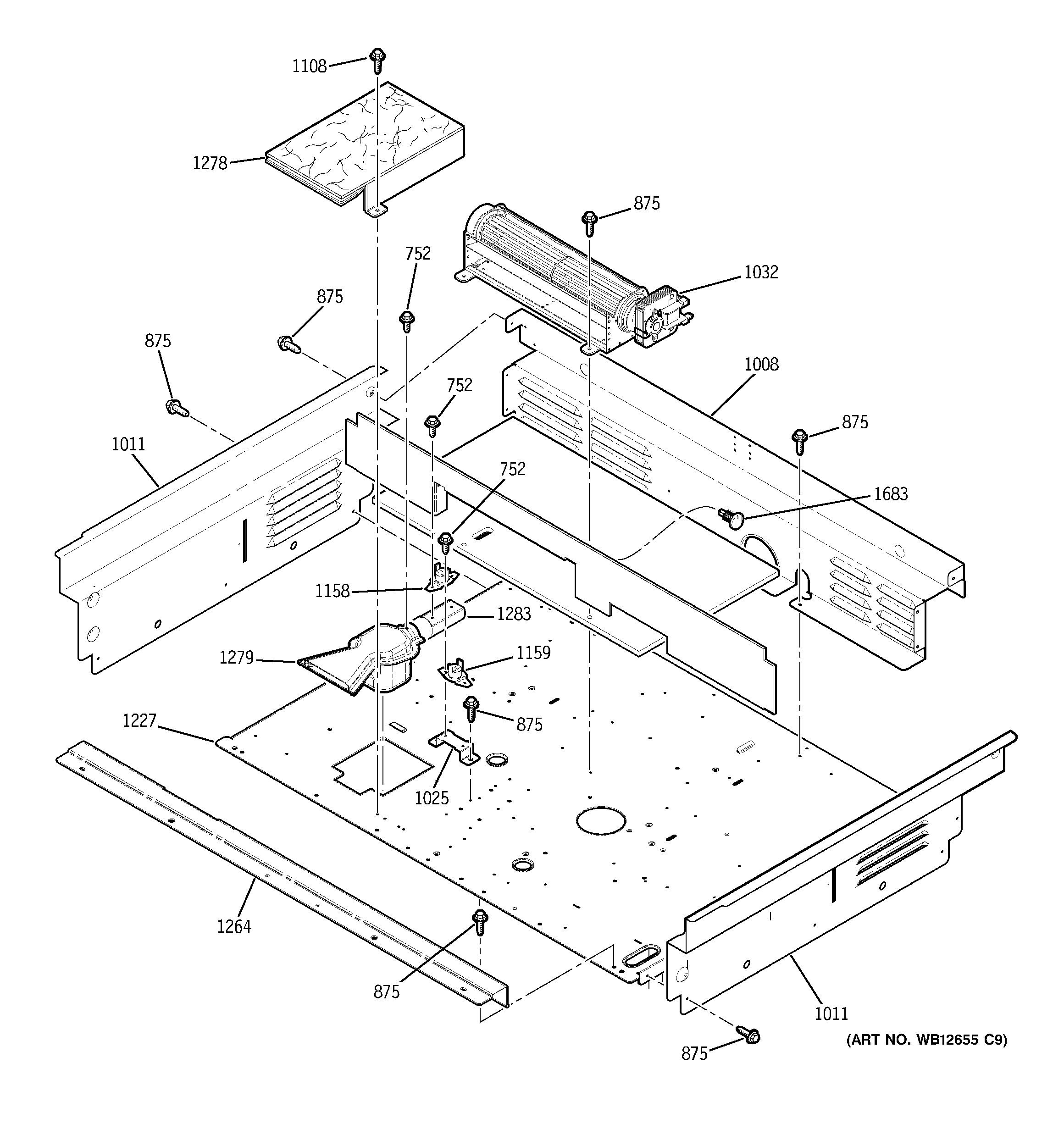

JCSP42SN1SS COOLING FAN

JCSP42SN1SS COOLING FAN

Written by

in

JCSP42SN1SS COOLING FAN

Products

PositionProduct
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
1008GEN WB07K10155
1011WB07T10498 GE Oven Side Extension Left
1011WB07T10497 GE Oven Side Extension Right
1025GEN WB02K5238
1032WB26T10039 GE Oven Blower Assembly
1108WB1X5364 GE Oven Mounting Screw
1158WB24T10079 GE Oven Limit Switch
1159WB24T10060 GE Oven Safety Thermostat
1227WB02T10343 GE Ran Insulation Retainer – Lower
1264GEN WB07T10519
1278WB34T10059 GE Vent Shield Assembly
1279WB38T10019 GE Oven Vent Box Assembly
1283WB28T10075 GE Oven Vent Inlet Duct
1683WR02X10562 GE Push Fastener
