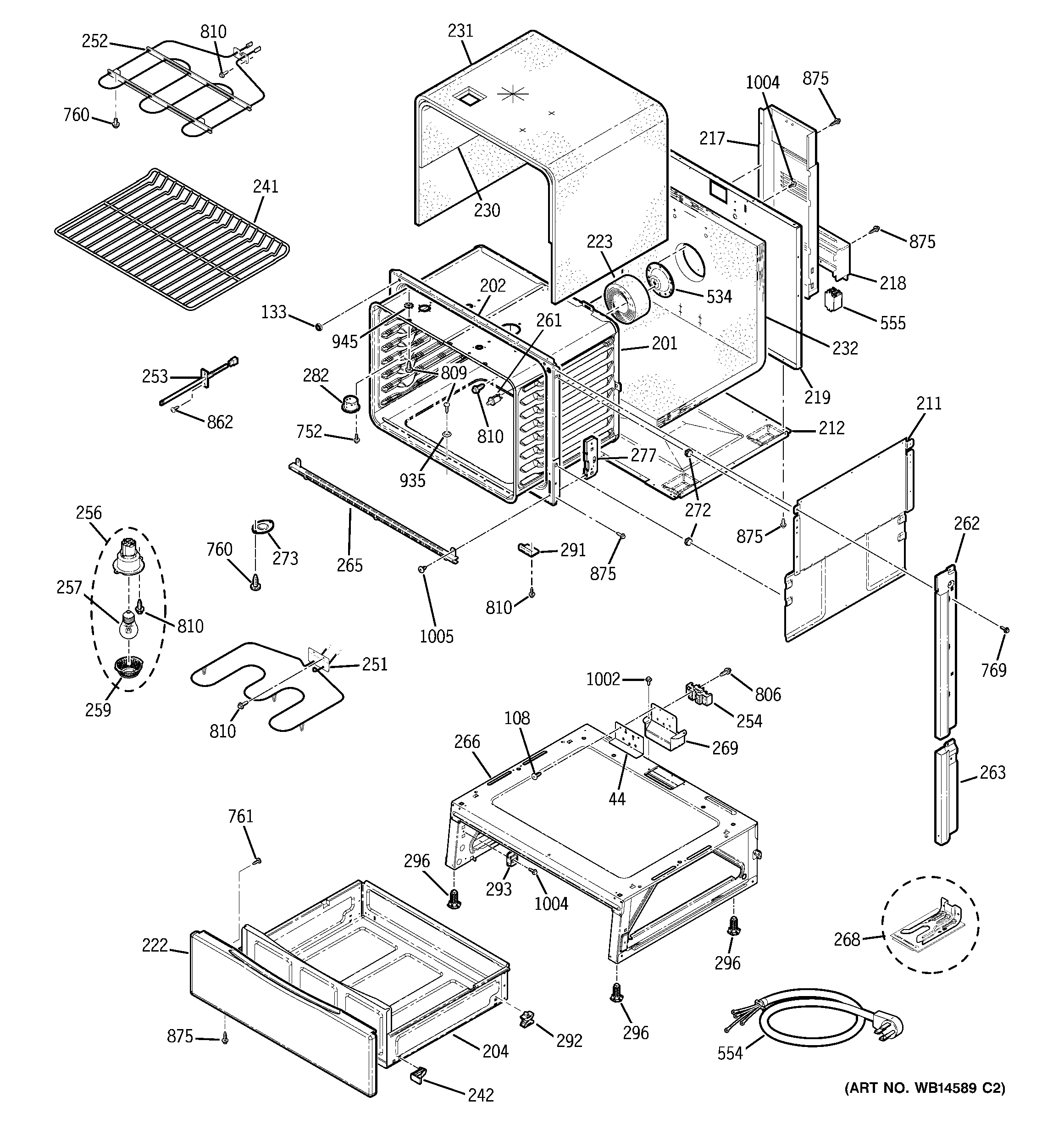

JCSP42SN3SS BODY PARTS

JCSP42SN3SS BODY PARTS

Written by

in

JCSP42SN3SS BODY PARTS

Products

PositionProduct
44WB02T10242 GE Bracket
108WB1X5364 GE Oven Mounting Screw
133WB01T10022 GE Oven Door Bumper
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
204WB55T10180 GE Oven Drawer Body Assembly
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217WB34K10049 GE Oven Rear Cover Wire
218WB34T10054 GE Oven Right Rear Lower Cover Wire
219WB02X20948 GE Oven Back Insulation Retainer
222GEN WB56T10286
223WB35T10090 GE Oven Back & Bottom Insulation
230WB35T10126 GE Oven Insulation Top
231WB35T10074 GE Oven Lower Insulation
241WB48T10095 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
251WB44K10009 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
254WB17T10011 GE Oven Terminal Block
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10520 GE Right Side Trim (Black)
262WB07T10521 GE Vertical Side Light Trim (Black)
263WB07T10632 GE Vertical Left Side Trim
263TRIM VERT SIDE RT (BK)
265WB07T10516 GE Oven Front Trim Assembly
266WB63X28540 GE Base Assembly Rivet
268GEN WB02T10416
269WB17T10021 GE Oven Mount Terminal Block
272GEN WB02T10411
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10083
282WB38X33650 GE Vent Tube
291GEN WB02X9152
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
534WB26T10015 GE Oven Cavity Support
554WB08T10029 GE Range Cord 4' 3-Prong
555WB18T10352 GE Oven Relay
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
761WB1K5062 GE Oven Screw
769WB1X500D GE Oven Screw Package
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
862GEN WB01X1178
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
