JCSP46DP2WW COOLING FAN

JCSP46DP2WW COOLING FAN

Written by

in

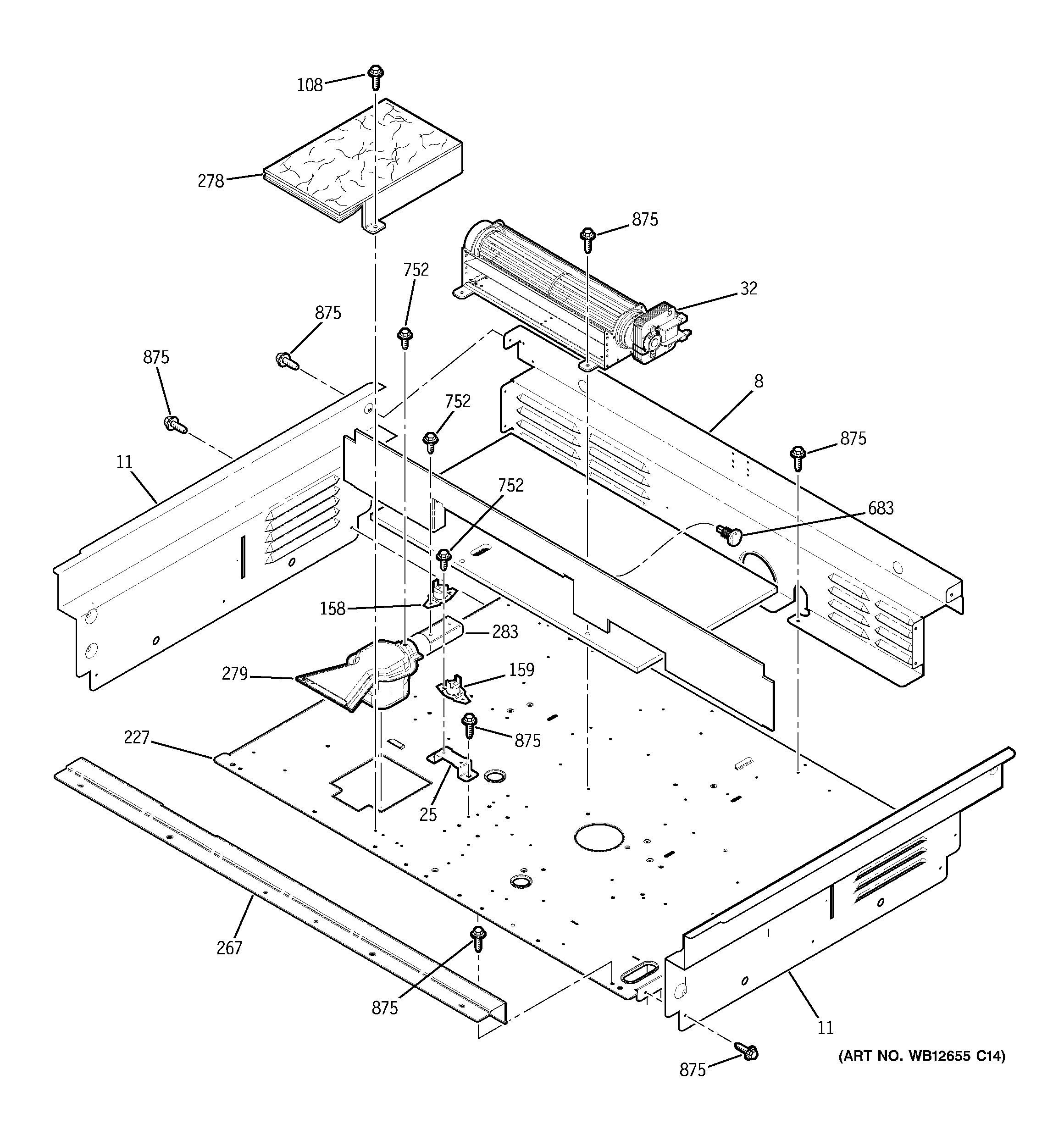

JCSP46DP2WW COOLING FAN

Products

PositionProduct
8GEN WB07K10155
11WB07T10498 GE Oven Side Extension Left
11WB07T10497 GE Oven Side Extension Right
25GEN WB02K5238
32WB26T10039 GE Oven Blower Assembly
108WB1X5364 GE Oven Mounting Screw
158WB24T10079 GE Oven Limit Switch
159WB24T10060 GE Oven Safety Thermostat
227WB02T10343 GE Ran Insulation Retainer – Lower
267WB07T10496 GE Oven Trim Assembly
278WB34T10059 GE Vent Shield Assembly
279WB38T10019 GE Oven Vent Box Assembly
283WB28T10075 GE Oven Vent Inlet Duct
683WR02X10562 GE Push Fastener
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
