JCSS16P1 RANGE

JCSS16P1 RANGE

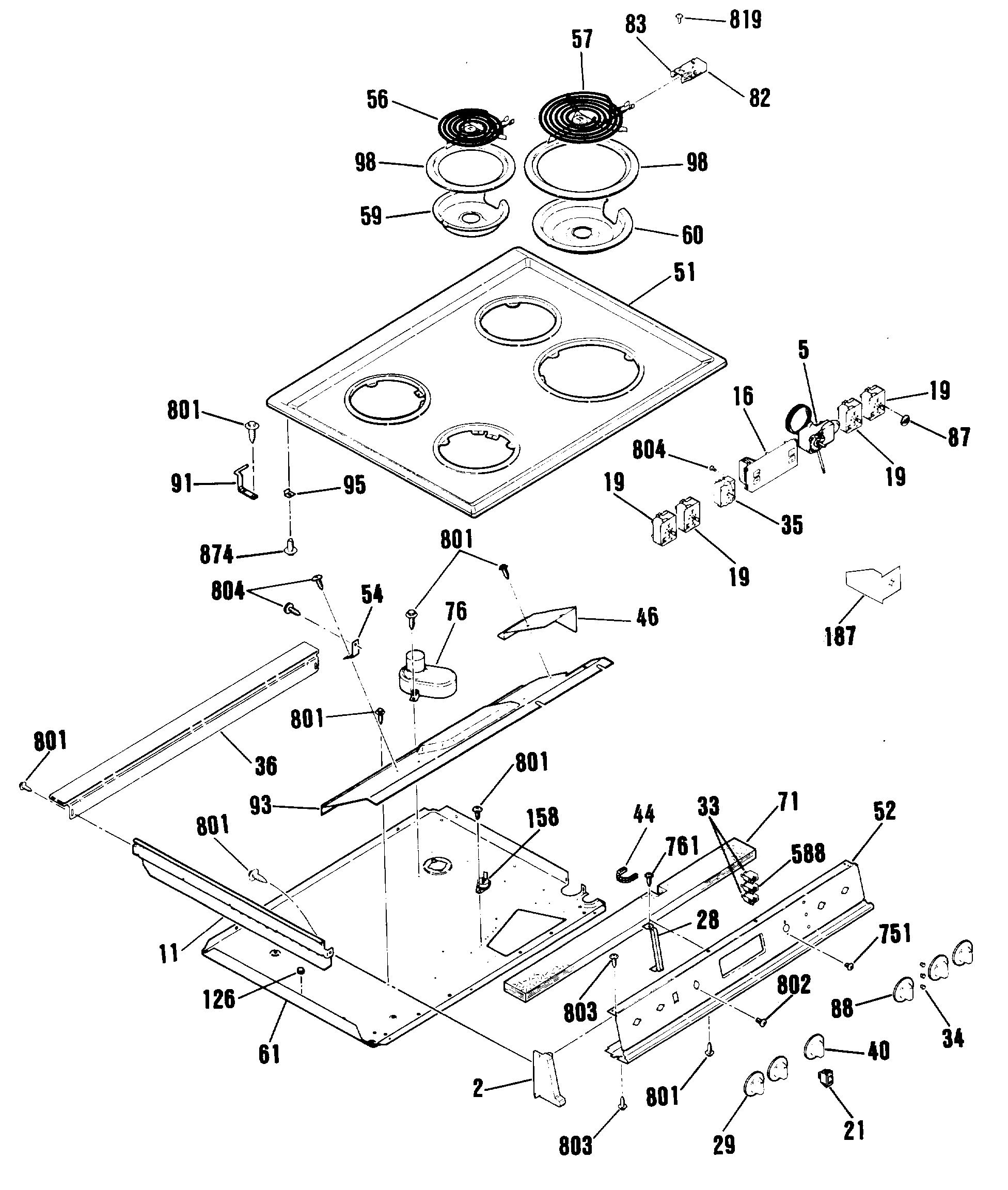

Products

PositionProduct
2GEN WB36K5135
2GEN WB36K5136
5GEN WB20K5021
5GEN WB20K5016
9UNKNOWN
11SIDE EXTENSION
16GEN WB11K5016
19WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
19WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
21GEN WB24X0415
28GEN WB02K5333
29GEN WB03M0026
33WB25T10040 GE Oven Light Indicator
34GEN WB24X0094
35GEN WB24K5040
36GEN WB36K5579
36UNKNOWN
40GEN WB03K5030
44UNKNOWN
44UNKNOWN
46UNKNOWN
51GEN WB62X5028
52GEN WB36K5175
54GEN WB02K5208
56WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
56WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
59GEN WB32X5059
60WB32X5060 GE Oven 8" Gray Pan 8 7/16" DIA
61UNKNOWN
71UNKNOWN
76UNKNOWN
82WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83WB17X211 GE Oven Terminal Clip Black
87WB6X3 GE Oven Control Seal
88GEN WB03K5029
91UNKNOWN
91UNKNOWN
93UNKNOWN
95WB10X255 GE Oven Hinge Bracket
98WB31X5013 GE Oven 6" Chrome Trim Ring
98WB31X5014 GE 8-Inch Chrome Trim Ring
102OVEN DOOR INSULATION
106GEN WB56K5147
108GEN WB02X9190
112GEN WB55M0008
113GEN WB02X9191
115GEN WB02X9192
121GEN WB56X1912
124OVEN DOOR GLASS-CENTER
126PLUG BUTTON CAP TUBE
133FELT WASHER
136LOWER DOOR HANDLE
146DOOR HANDLE SPACER-BLACK
158UNKNOWN
187GEN WB34K5125
201GEN WB63K5109
202UNKNOWN
203GEN WB63K5126
204GEN WB58X0063
211UNKNOWN
212GEN WB02K5093
216GEN WB34M0044
217WIRE SHIELD-UPPER
218GEN WB02X9426
219GEN WB34M0006
220GEN WB34K5139
221GEN WB63K5195
221GEN WB63K5192
221GEN WB63M0024
221GEN WB63M0058
222LOWER PANEL
231GEN WB35M0022
232UNKNOWN
233INSULATION-TOP SIDES
239WB2X9189 GE Oven Plug - REC
241OVEN RACK-LOWER OVEN
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
255WB17X5095 GE Black Oven Terminal
256GEN WB08M0003
257GEN BUY-LOCAL
259OVEN LAMP LENS
262UNKNOWN
262UNKNOWN
265GEN WB34K5052
266BASE ASM W/LEVERS
267GEN WB56M0003
269SERVICE RANGE MTG PLATE
271FLUE PLATE COVER
273GEN WB34M0027
275UNKNOWN
281WB14X103 GE Range Oven Left Door Hinge
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
282UNKNOWN
286GEN WB09X0267
290GEN WB63M0021
292GEN WB02X9146
293GEN WB02X9148
294WB2X9719 GE Oven Support Bracket Clip
296GEN WB01M0018
507GEN WB26K5037
511GEN WB26M0019
512UNKNOWN
513UNKNOWN
514UNKNOWN
520UNKNOWN
554GEN WB08X5034
560GEN WB34K5118
561GEN WB34M0009
562GEN WB20K5023
562GEN WB20K5022
588WB25T10039 GE Oven Light Indicator
751SCREW
761WB1K5062 GE Oven Screw
801WB1M1 GE Oven Screw
802GEN WB01X1265
803WB1X1149 GE Oven Screw
804WB1X681 GE Oven Screw
805GEN WB01X1113
806SCREW-BRT. NI.
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
810WB1X1130 GE Oven Screw 10-32
811GEN WB01X1172
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
814WB1X1258 GE Oven Screw
819WB1X1118 GE Oven Screw 6-32T
820WB1X1424D GE Oven Screw Package
826GEN WB01X1167
828WB1X1141 GE Oven Screw 8-32
859GEN WB01X1186
874UNKNOWN
892UNKNOWN
926GROUND WASHER
935GEN WB01X1201
936GEN WB02X9103
936GEN WB02M0021
942GEN WB01X1140
954GEN WB02K5209
979SPACER
988GEN WB01X1311
996UNKNOWN
999GEN WB18K5245
999GEN 31-10005
999GEN 31-10011
999GEN 31-13033
999GEN WB18K5316
