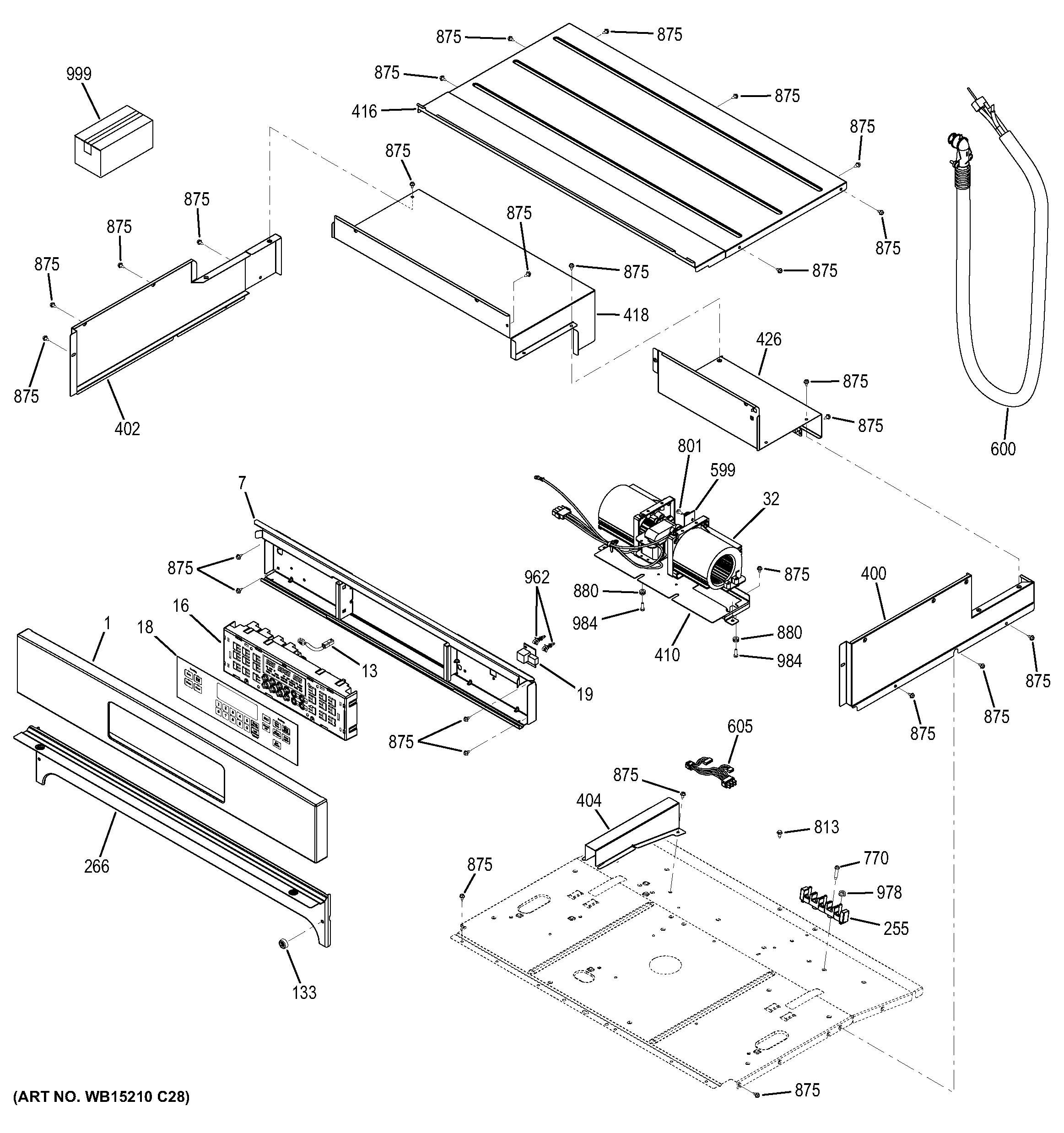

JCT3000DF1WW CONTROL PANEL

Products

Position	Product
1	WB07T10738 GE Oven Control Panel
1	GEN 229C6153P001
7	WB37T10031 GE Oven Control Mounting Panel
13	WB18X30704 GE Jumper
16	WB27X25321 GE Control Board T012
18	WB27T11462 GE Oven Overlay
19	WB27X20933 GE Oven RJ45 Housing Assembly
32	COOLING FAN
133	WB03T10341 GE Oven Door Bumper
255	WB17K10001 GE Oven Block Terminal
266	WB07T10805 GE Oven Upper Black Trim Vent
400	COVER TOP RIGHT EDGE
402	WB44T10126 GE Oven Top Left Edge Cover
404	WB34T10150 GE Upper Air Vent Channel
410	WB37T10026 GE Oven Upper Fan Mount Bracket
416	WB34X28390 GE Oven Front Cover Housing
418	WB34X32773 GE Rear Top Cover Kit
426	WB35T10273 GE Oven Rear Wire Cover
599	WB27T11463 GE Oven Fan Sensor Board
600	CONDUIT WIRE ASM
605	WB18T10594 GE Oven Main Wire Harness
770	WB1K5072 GE Oven Screw
801	WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813	WB1X1261 GE Oven Screw
875	WH2X930 GE Screw
880	WB01T10128 GE Grommet
962	WB02T10093 GE Oven Standoff Printed Circuit Board
978	WB1X1259 GE Hex Nut
984	WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999	GEN 49-80656
999	INSTR INSTALL OVN DOOR
999	GEN 31-10856
999	GEN 31-17018
