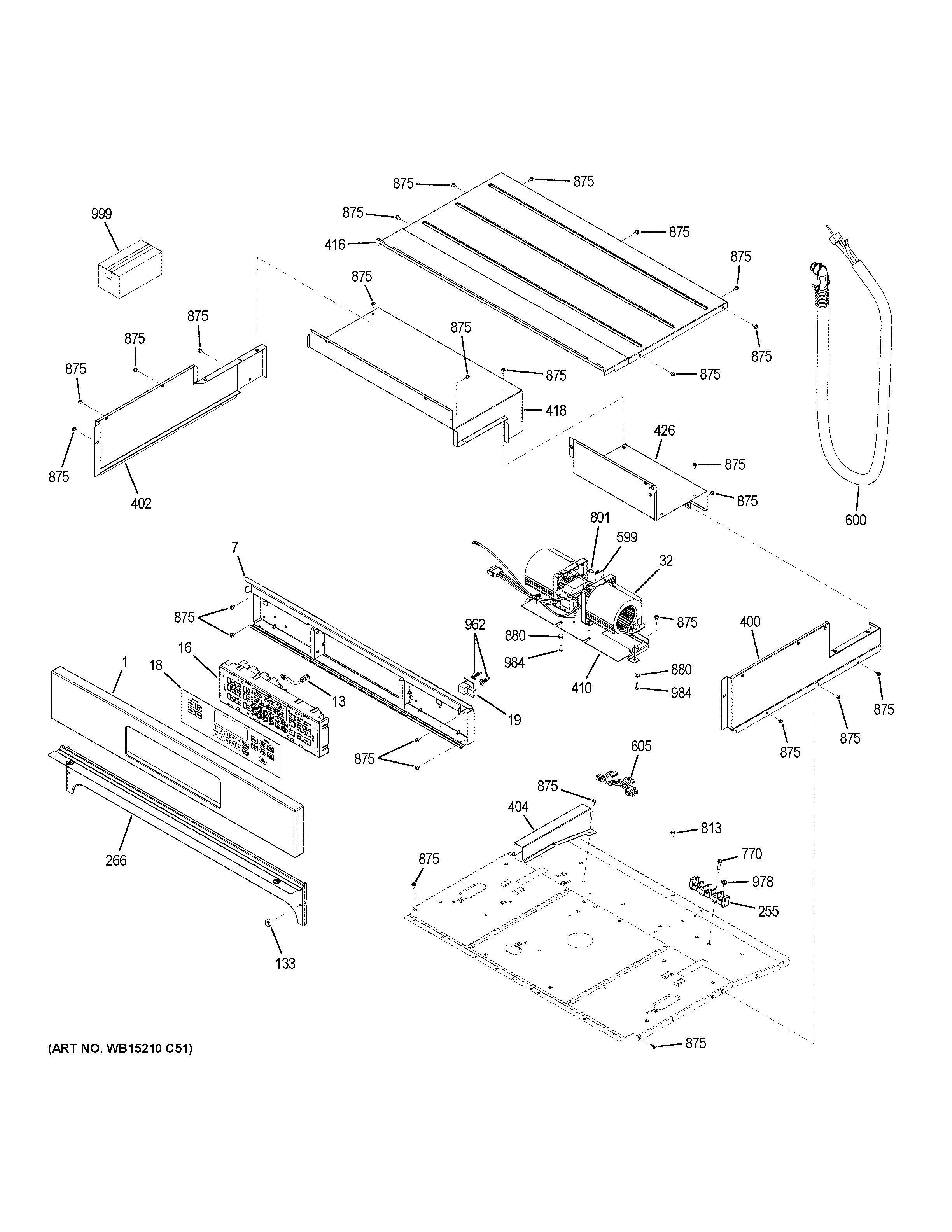

JCT3000DF6WW CONTROL PANELadmin2025-04-26T08:48:14+00:00JCT3000DF6WW CONTROL PANEL ProductsPositionProduct1WB07T10738 GE Oven Control Panel1LABEL WIRE DIAGRAM7WB37T10031 GE Oven Control Mounting Panel13WB18X30704 GE Jumper16CONTROL BOARD T012 WHITE LED18WB27T11462 GE Oven Overlay19WB27X20933 GE Oven RJ45 Housing Assembly32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper255WB17K10001 GE Oven Block Terminal266WB07T10805 GE Oven Upper Black Trim Vent400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34X28390 GE Oven Front Cover Housing418WB34X32773 GE Rear Top Cover Kit426WB35T10273 GE Oven Rear Wire Cover599WB27T11463 GE Oven Fan Sensor Board600WB18X30613 GE Conduit Wire Assembly605WB18X24022 GE Oven Main Wire Harness770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw875WH2X930 GE Screw880WB01T10128 GE Grommet962WB02T10093 GE Oven Standoff Printed Circuit Board978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999PM INSTALL INSTRUCTIONS999INSTRUCTION INSTALL999PM MANUAL MINI & WD ASM_999PM OWNERS MANUAL
