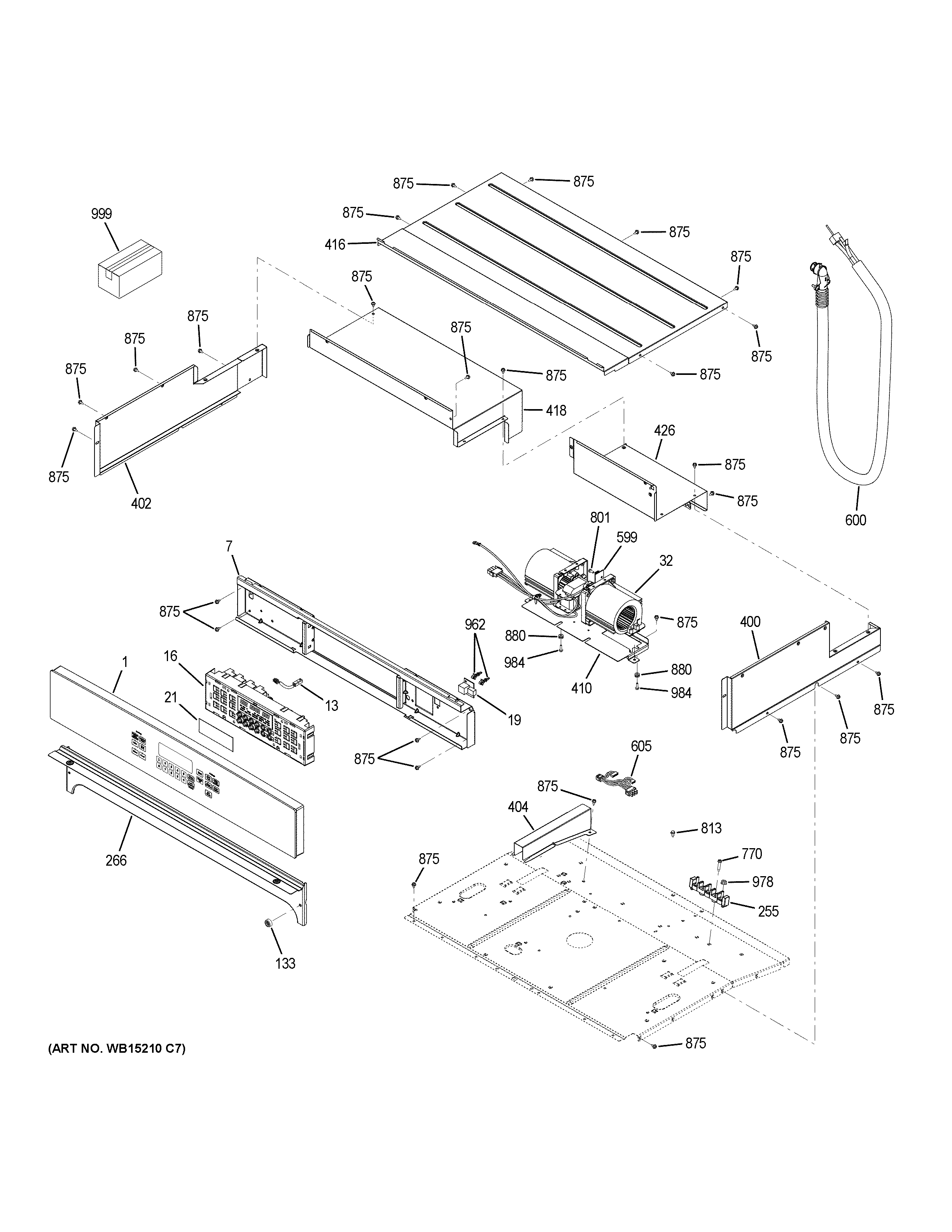

JCT5000SF6SS CONTROL PANELadmin2025-04-26T08:47:57+00:00JCT5000SF6SS CONTROL PANEL ProductsPositionProduct1LABEL WIRE DIAGRAM1WB07T10745 GE Oven Control Panel Stainless7MOUNTING PANEL - CONTROL13WB18X30704 GE Jumper16CONTROL BOARD T012 WHITE LED19WB27X20933 GE Oven RJ45 Housing Assembly21WB27T11116 GE Clock Display Filter32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper255WB17K10001 GE Oven Block Terminal266WB07T10805 GE Oven Upper Black Trim Vent400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34X28390 GE Oven Front Cover Housing418WB34X32773 GE Rear Top Cover Kit426WB35T10273 GE Oven Rear Wire Cover599WB27T11463 GE Oven Fan Sensor Board600WB18X30613 GE Conduit Wire Assembly605WB18X24030 GE Oven Main Wire Harness770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw875WH2X930 GE Screw880WB01T10128 GE Grommet962WB02T10093 GE Oven Standoff Printed Circuit Board978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999PM INSTALL INSTRUCTIONS999INSTRUCTION INSTALL999PM MANUAL MINI & WD ASM_999PM OWNERS MANUAL
