JCT910SA4SS CONTROL PANEL

JCT910SA4SS CONTROL PANEL

Written by

in

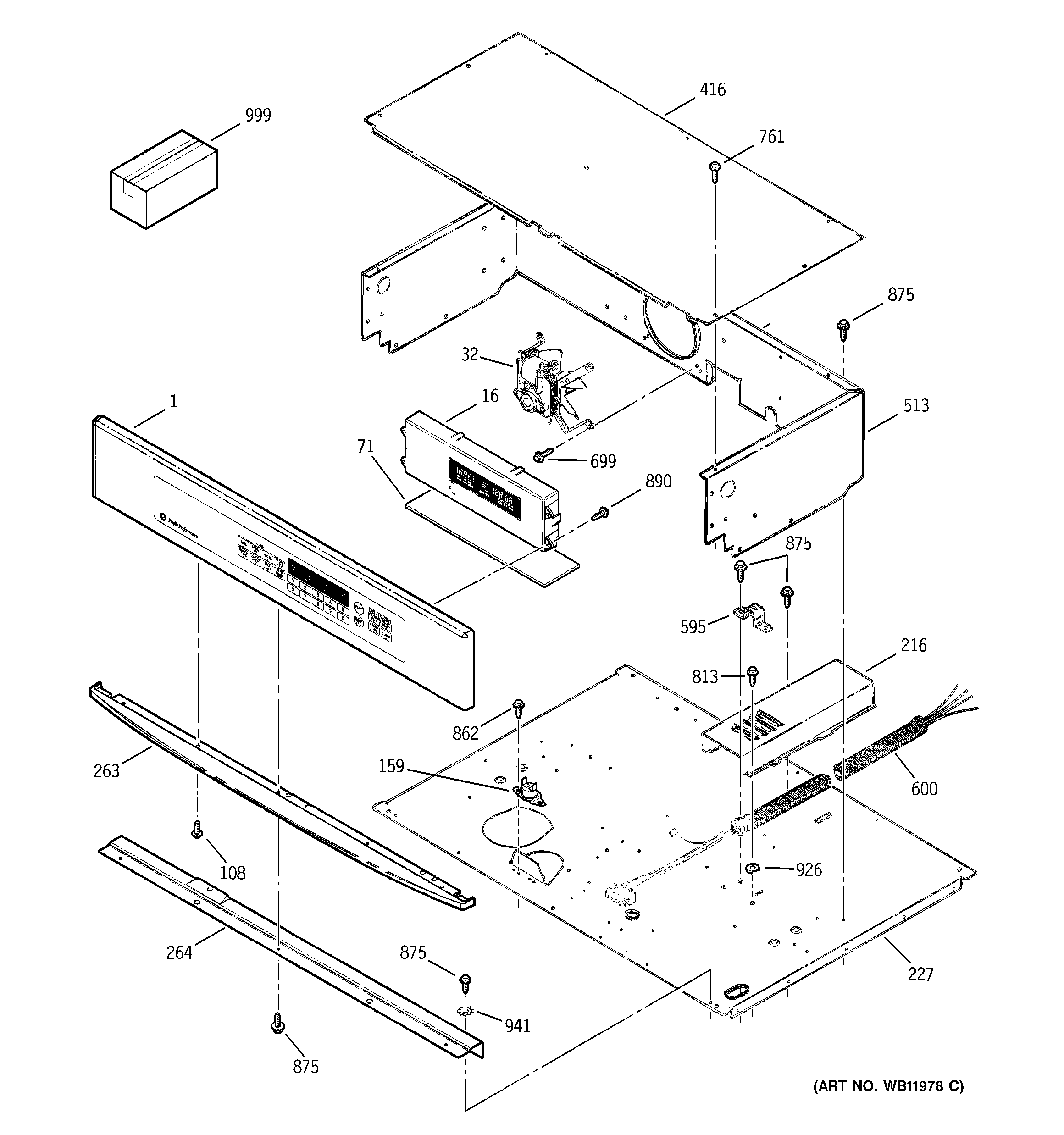

JCT910SA4SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T10215
16GEN WB27T10311
32WB26K5061 GE Oven Upper Fan Assembly
71GEN WB35K5135
108WB1X5364 GE Oven Mounting Screw
159LIMIT SWITCH-UPPER(VENT)
216GEN WB34K5216
227GEN WB02T10109
263GEN WB07K5471
264GEN WB07T10177
416GEN WB34K5217
513GEN WB26K5063
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5473
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
862GEN WB01X1178
875WH2X930 GE Screw
890WB1X1118 GE Oven Screw 6-32T
926GROUND WASHER
941GEN WB01X1399
999GEN 29-5020
999GEN 31-13801
999GEN 31-10434
999GEN WB18T10117
999WIRE HARNESS F.O.D.
999WB18T10153 GE Motor Lock Wire Harness
999WB18K5490 GE Oven Door Switch Wire Harness
999GEN 49-8443
999GEN 29-5012
