JCT915WF2WW CONTROL PANEL & COOKTOP

JCT915WF2WW CONTROL PANEL & COOKTOP

Written by

in

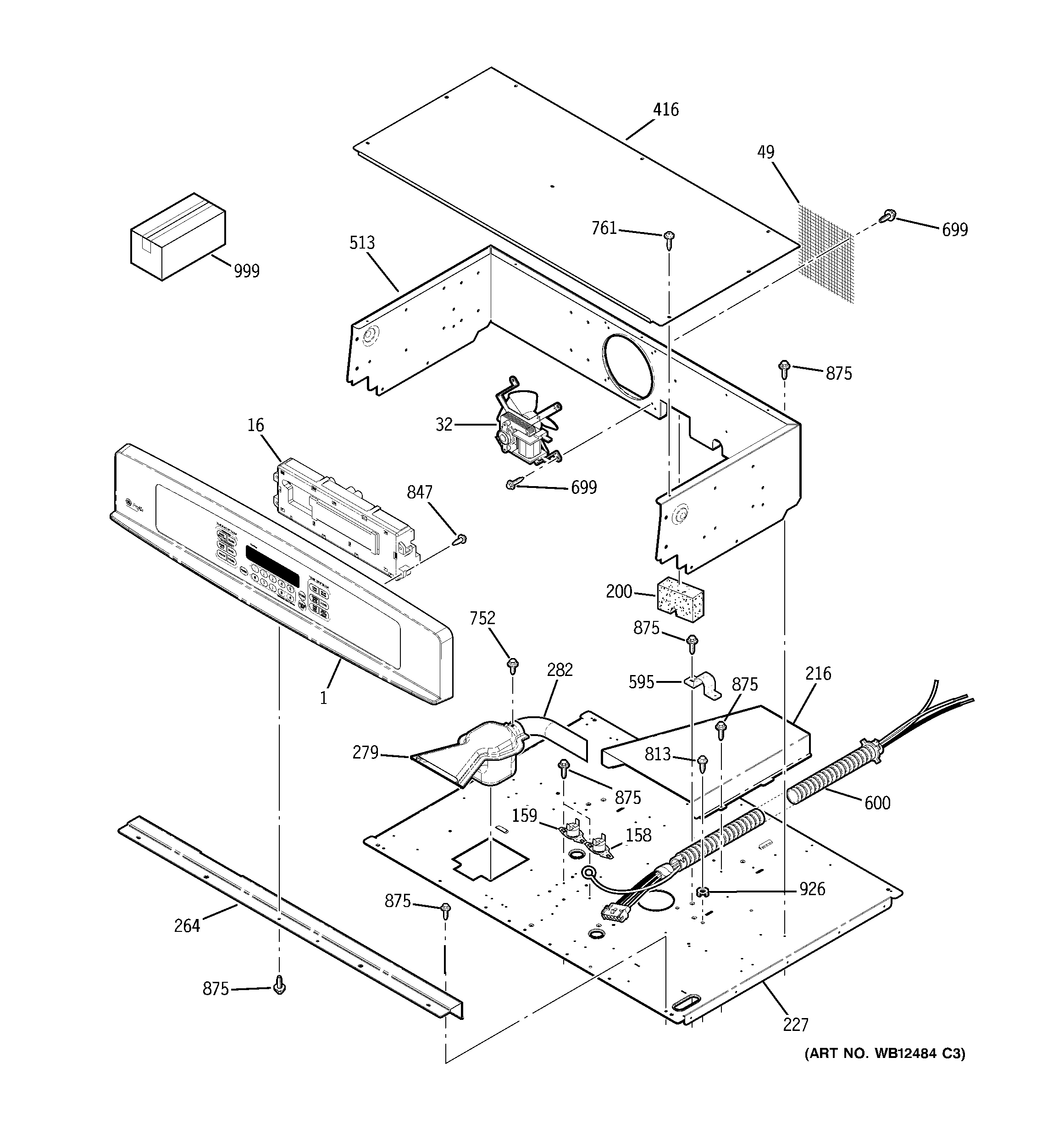

JCT915WF2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36T10554
16WB27T10398 GE Oven Control Clock
32WB26T10018 GE Oven Fan Motor
49WB34T10091 GE Oven Fan Screen
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10168
216WB34T10057 GE Oven Top Cover Wire
227WB02T10343 GE Ran Insulation Retainer – Lower
264GEN WB07T10252
279WB38T10019 GE Oven Vent Box Assembly
282GEN WB28T10074
282WB38X33650 GE Vent Tube
416GEN WB34T10058
513GEN WB26T10014
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10271
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
761WB1K5185 GE Oven White Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
999GEN 31-10551
999GEN 29-5031
999GEN 31-14021
999RIBBON CONNECTOR GLS TCH
999GEN 31-10514
999GEN 31-10522
