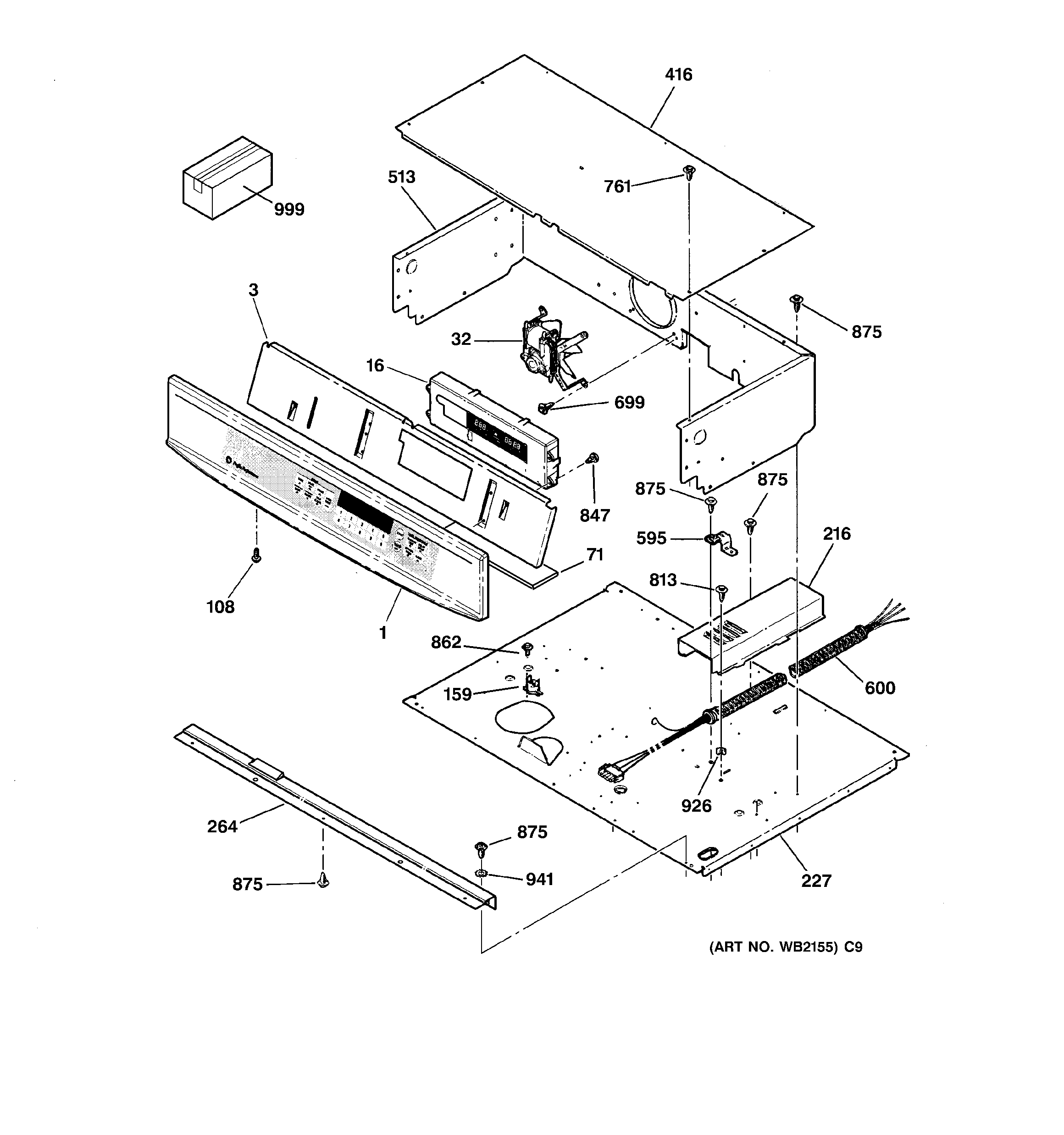

JCTP18BA3BB CONTROL PANEL

JCTP18BA3BB CONTROL PANEL

Written by

in

JCTP18BA3BB CONTROL PANEL

Products

PositionProduct
1PANEL CNTL ASM
3GEN WB34K5237
16GEN WB27T10219
32WB26K5061 GE Oven Upper Fan Assembly
71GEN WB35K5135
108WB1X5364 GE Oven Mounting Screw
159GEN WB24T10045
216GEN WB34K5216
227GEN WB02T10082
264GEN WB07T10177
416GEN WB34K5217
513GEN WB26K5063
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5473
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847SCREW
847WB1X1118 GE Oven Screw 6-32T
862GEN WB01X1178
875WH2X930 GE Screw
926GROUND WASHER
941GEN WB01X1399
999GEN 31-13632
999GEN 29-5012
999WB18K5490 GE Oven Door Switch Wire Harness
999GEN 31-10434
999GEN WB18T10117
999GEN 49-8443
999WIRE HARNESS F.O.D.
999WB18T10153 GE Motor Lock Wire Harness
