JCTP30SM2SS CONTROL PANEL

JCTP30SM2SS CONTROL PANEL

Written by

in

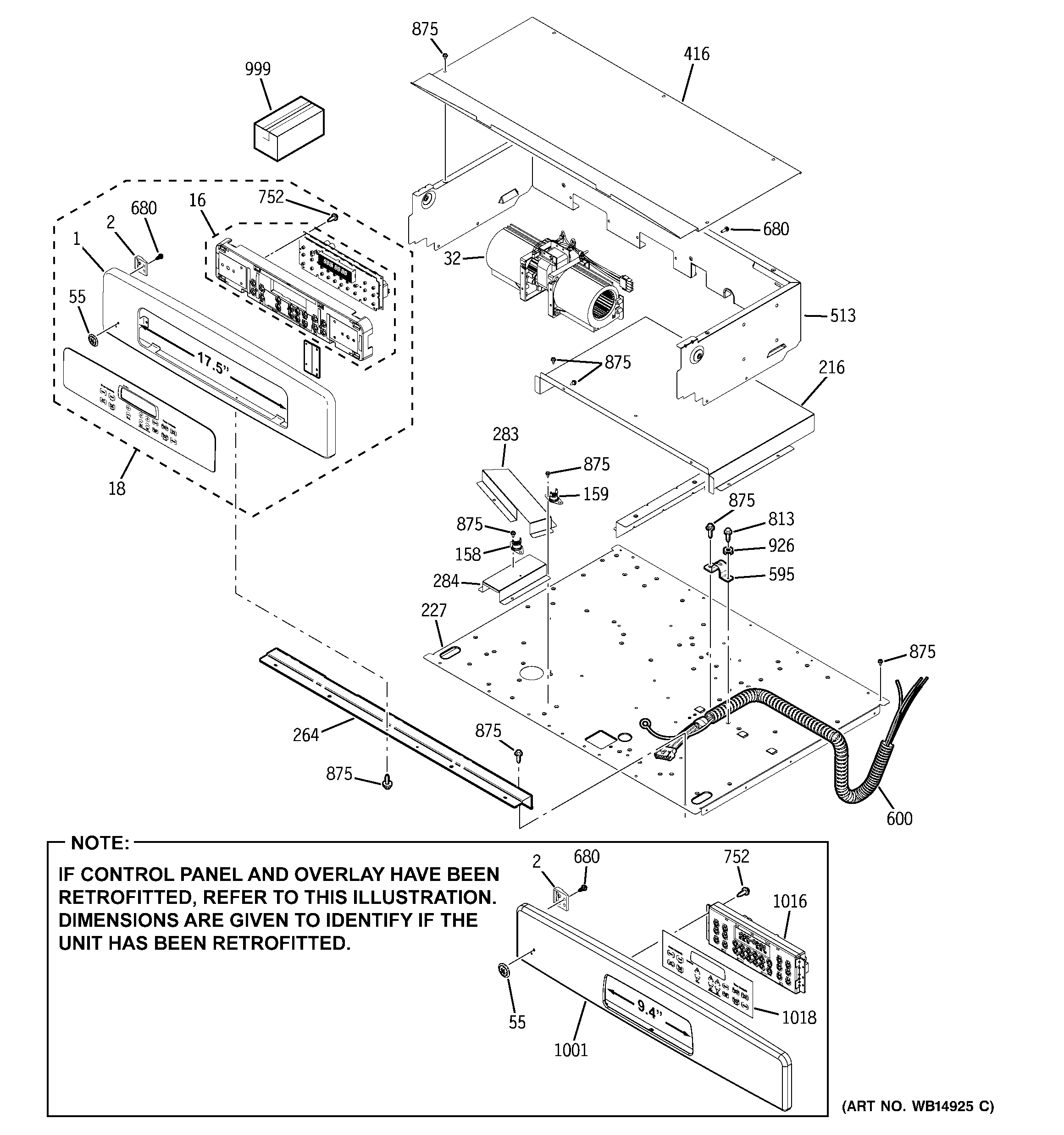

JCTP30SM2SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11025
2GEN WB02T10376
16GEN WB27T10911
18GEN WB49T10047
32WB26X10264 GE Oven Fan Kit
55WB02T10359 GE Oven Badge
158WB24T10127 GE Oven Bimetal Limit Switch
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
416GEN WB02T10396
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600OPT CONDUIT WIRE ASM 72"
680WR1X1850 GE Refrigerator Screw
752WB1K5200 GE Oven Screw 340531
752WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
926GROUND WASHER
999GEN 31-14756
999GEN 29-5541
999GEN 31-10666
999INSTR INSTALL OVN DOOR
999GEN 31-10743
999GEN 29-5669
1001WB36T11246 GE Oven Panel and Bracket Assembly Stainless Steel
1016WB27T11161 GE Oven Control Board
1018WB27T11239 GE Oven Faceplate
