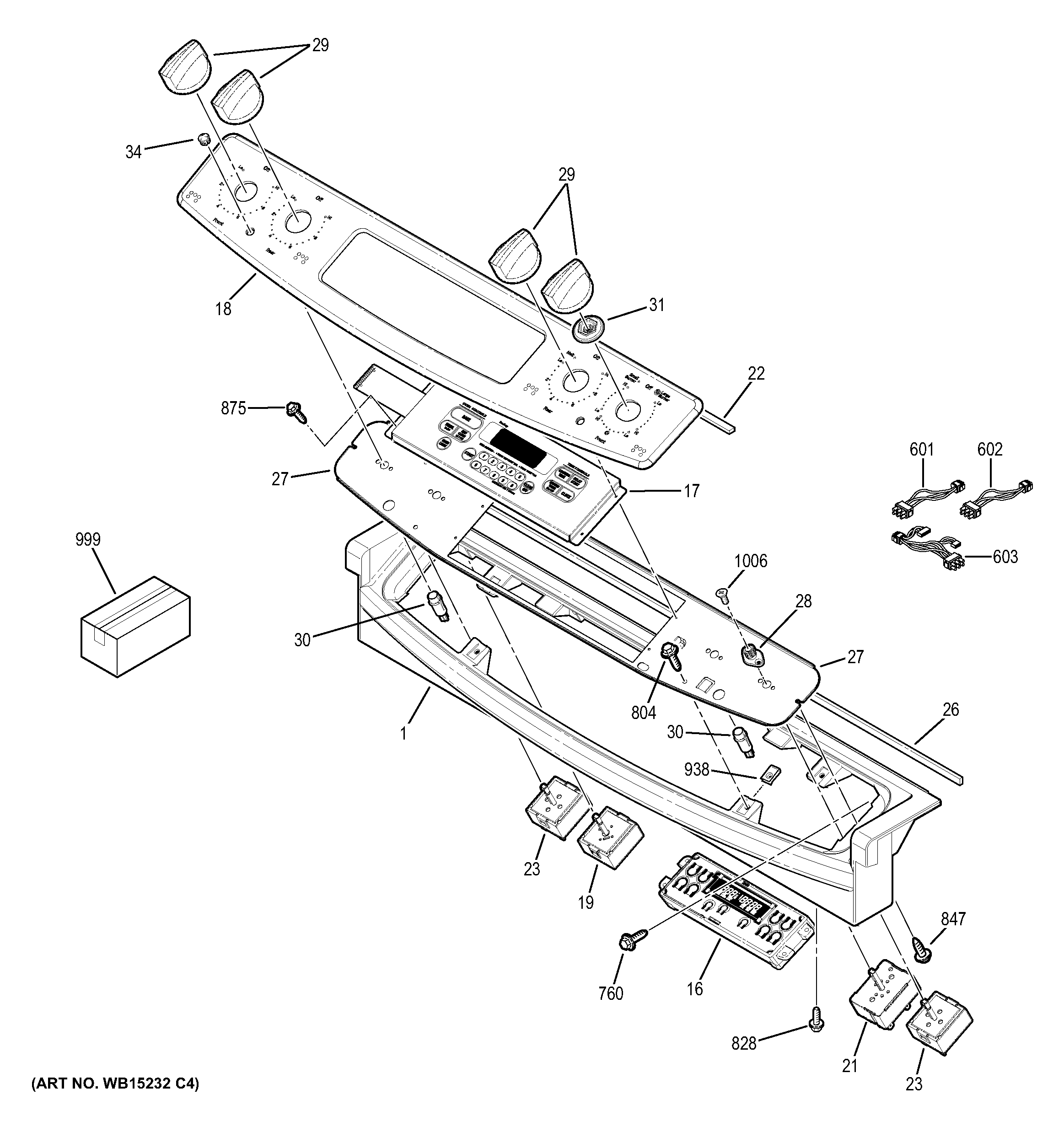

JD630DF1BB CONTROL PANEL

JD630DF1BB CONTROL PANEL

Written by

in

JD630DF1BB CONTROL PANEL

Products

PositionProduct
1GEN 229C6236P001
1WB36T10666 GE Oven Trim Piece
16WB27T10416 GE Oven Control ERC3B
17WB36X20048 GE Oven Keypanel Support Assembly (Black)
18FACEPLATE (SCR-BK)
19WB24T10026 GE Oven Infinite Control Switch (2000W)
21WB24T10012 GE Oven Infinite Switch
22WB02X10744 GE Oven Gasket Faceplate
23WB24T10134 GE Oven Infinite Control Switch
26WB02X10742 GE Oven Control Panel Gasket
27GEN WB36T10568
28WB02T10047 GE Oven Crystal Mount Assembly
29WB03T10332 GE Stove Burner Control Knob
30WB25T10056 GE Oven Light Indicator
31WB02T10046 GE Oven Crystal Retainer
34WB25T10022 GE Oven Snap-In Lens
601WB18X20950 GE Dishwasher Control Wire Harness
602WB18X21483 GE Infinite Control Wire Harness
603GEN WB18X21484
760WB1X536 GE Oven Screw
804WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
828WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
847WZ4X245D GE Screw Package
875WH2X930 GE Screw
938WB1K5209 GE Oven Clip
999GEN 49-80651
999GEN 31-17063
999GEN 31-10829
999GEN 49-80597
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
