JD630DF1WW BODY PARTS

JD630DF1WW BODY PARTS

Written by

in

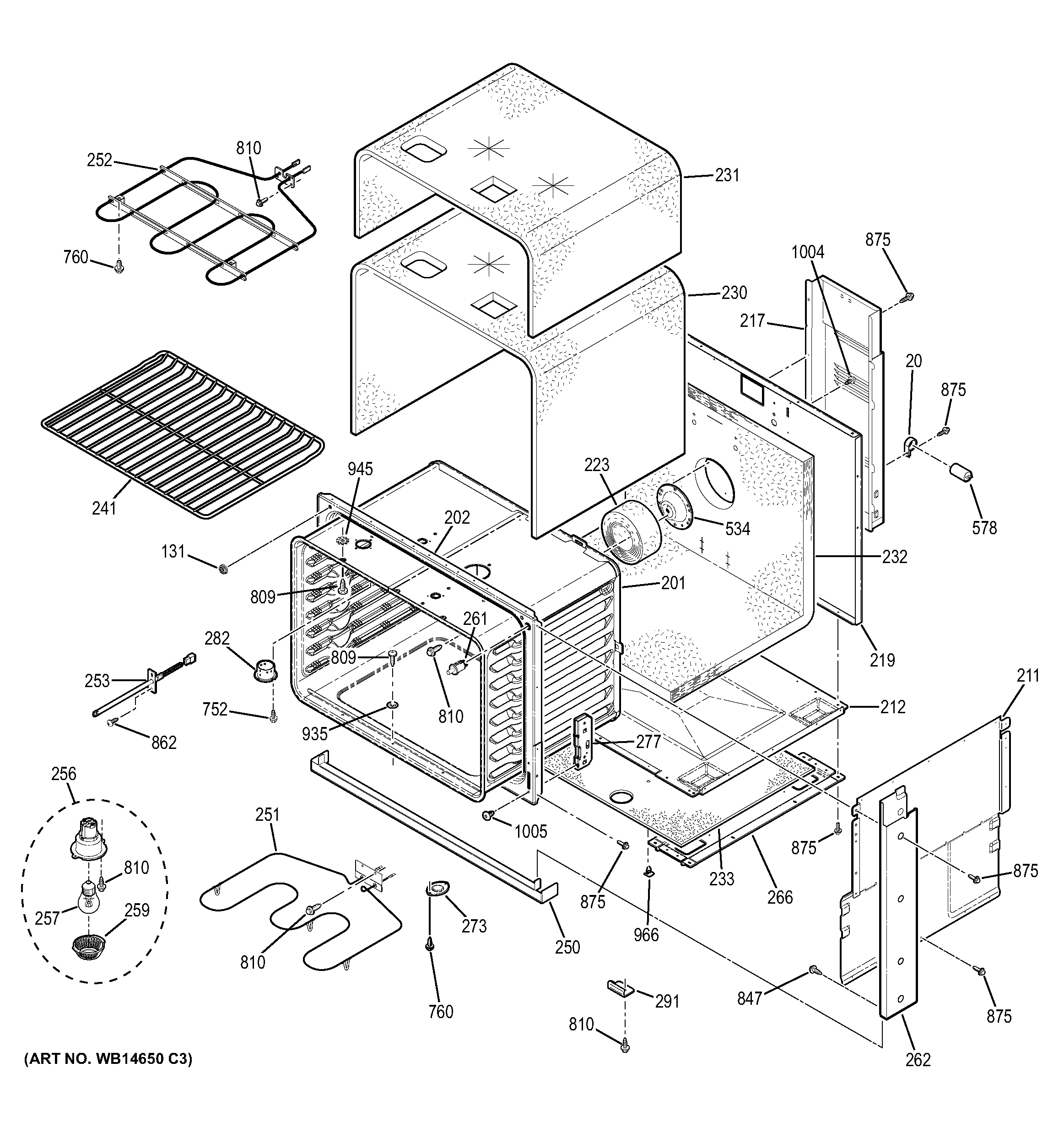

JD630DF1WW BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
131WB01T10022 GE Oven Door Bumper
201WB63X20924 GE Oven CAV Wrapper Assembly
202FRAME FRONT SLIDE-IN(BK)
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217COVER WIRE REAR
219WB02X20948 GE Oven Back Insulation Retainer
223WB35T10090 GE Oven Back & Bottom Insulation
230GEN WB35T10252
231WB35T10253 GE Top Insulation
233INSULATION BASE
241WB48T10095 GE Oven Rack
250GEN WB07T10693
251WB44T10069 GE Oven Bake Element
252BROIL ELEMENT
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10523 GE Oven Vertical Trim Side Left (White)
262WB07T10522 GE Oven Trim Vertical Side RT (White)
266WB02K10048 GE Base Rail
273GEN WB02K5365
277GEN WB10T10083
282WB38X33650 GE Vent Tube
291GEN WB02X9152
534WB02X20947 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1258 GE Oven Screw
847WZ4X245D GE Screw Package
862GEN WB01X1178
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
1004WB1X537 GE Oven Screw
1005WB01T10008 GE Oven Screw 10-32
