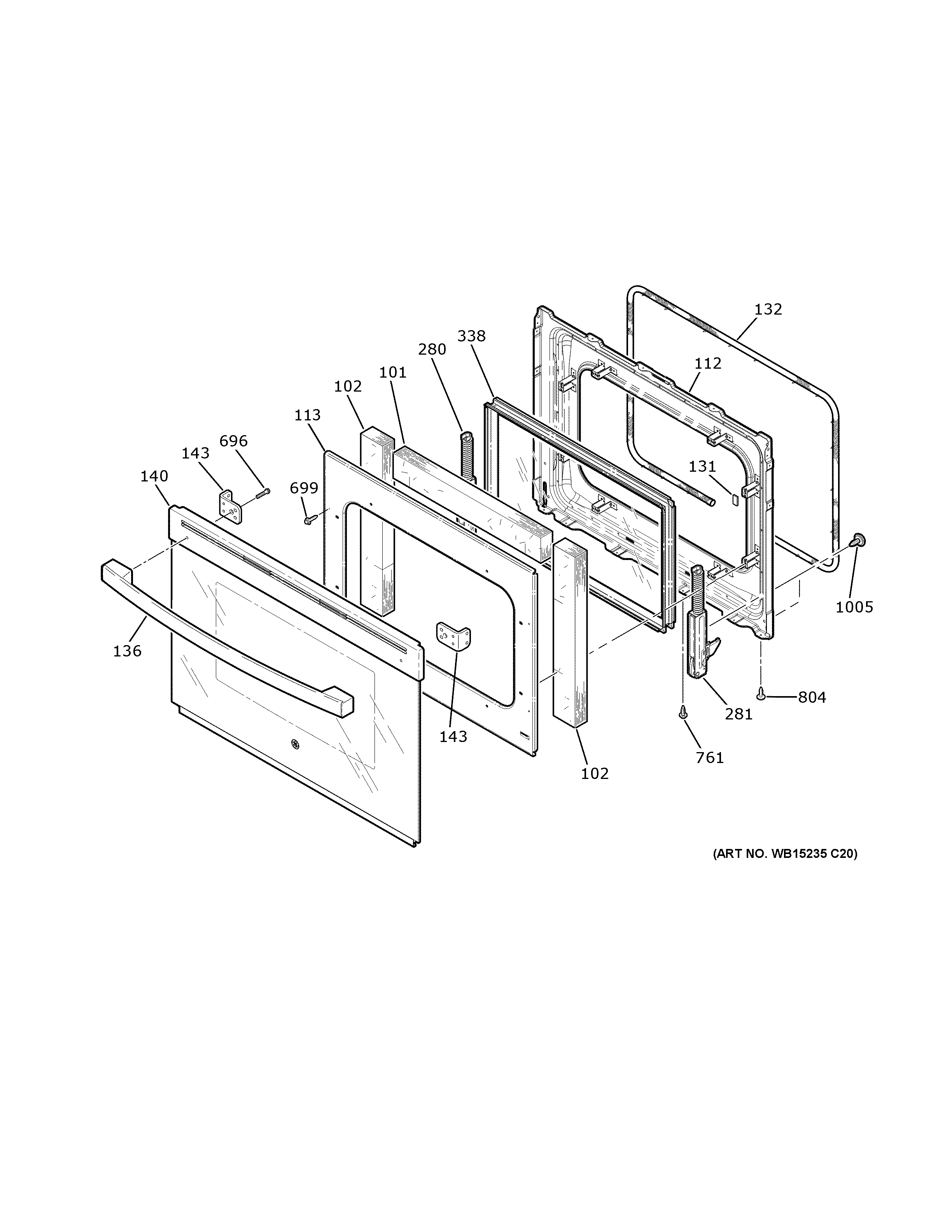

JD630DT1WW DOOR

Products

Position	Product
101	WB35X30052 GE Oven Door Insulation Assembly
102	WB35X30053 GE Oven Door Insulation
112	WB63X32774 GE Oven Door Liner Assembly
113	WB02T10371 GE Oven Retainer Insulation
131	WB01T10026 GE Oven Door Pad
132	WB04T10076 GE Oven Door Gasket
136	WB15X42629 GE Handle and Endcap Assembly (White)
140	WB56X43746 GE Outer White Door
143	WB15X42988 GE Black Door Handle Bracket
280	WB10X30491 GE Left Door Hinge
281	WB10X30492 GE Door Hinge Right
338	WB56X22160 GE Stove Inner Door Glass Assembly
696	WB1K5157 GE Oven Black Screw
699	WB1M1 GE Oven Screw
761	WB01X24096 GE Screw 8-18X
804	WZ4X245D GE Screw Package
1005	WB01T10008 GE Oven Screw 10-32
