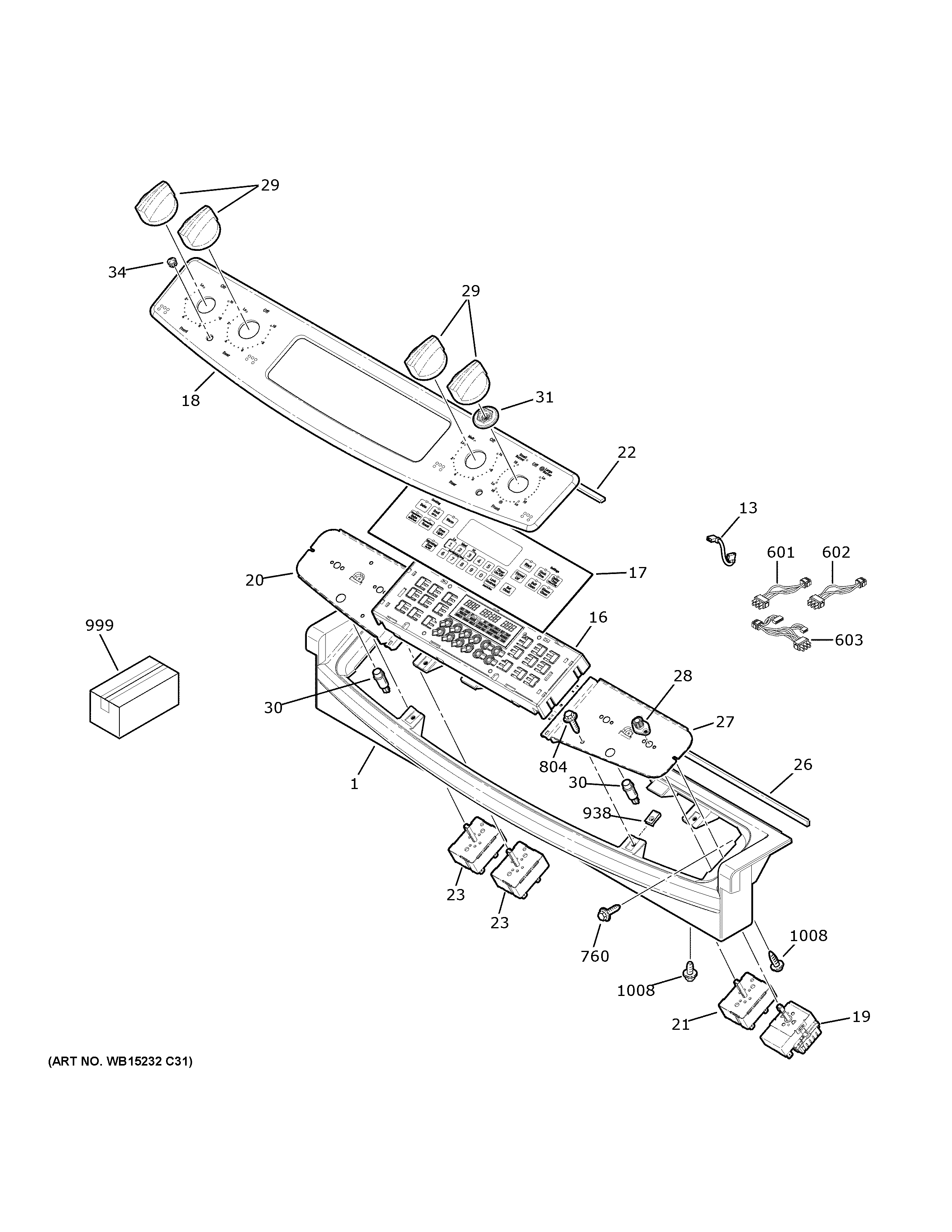

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB36T10666 GE Oven Trim Piece |
| 13 | WB18X30704 GE Jumper |
| 16 | WB27X29267 GE Range T012 Element Control Board |
| 17 | WB07X26744 GE Oven Faceplate Graphics |
| 18 | WB07X26742 GE Oven Faceplate |
| 19 | WB24X26398 GE Oven Infinite Control Switch |
| 20 | WB27X20070 GE Oven Control Panel Assembly |
| 21 | WB24T10012 GE Oven Infinite Switch |
| 22 | WB02X10744 GE Oven Gasket Faceplate |
| 23 | WB24T10026 GE Oven Infinite Control Switch (2000W) |
| 26 | WB02X10742 GE Oven Control Panel Gasket |
| 27 | WB27X20071 GE Right Control Panel Insert |
| 28 | WB02T10047 GE Oven Crystal Mount Assembly |
| 29 | WB03T10332 GE Stove Burner Control Knob |
| 30 | WB25T10056 GE Oven Light Indicator |
| 31 | WB02T10046 GE Oven Crystal Retainer |
| 34 | WB25T10022 GE Oven Snap-In Lens |
| 601 | WB18X35485 GE Infinite Control Wire Harness |
| 602 | WB18X32775 GE Control Wire Harness |
| 603 | WB18X32776 GE Infinite Switch Harness |
| 760 | WB1X536 GE Oven Screw |
| 804 | WZ4X245D GE Screw Package |
| 938 | WB1K5209 GE Oven Clip |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
| 999 | PM OWNERS MANUAL |
| 1008 | WB1X5364 GE Oven Mounting Screw |
