JD750DF1BB BODY PARTS

JD750DF1BB BODY PARTS

Written by

in

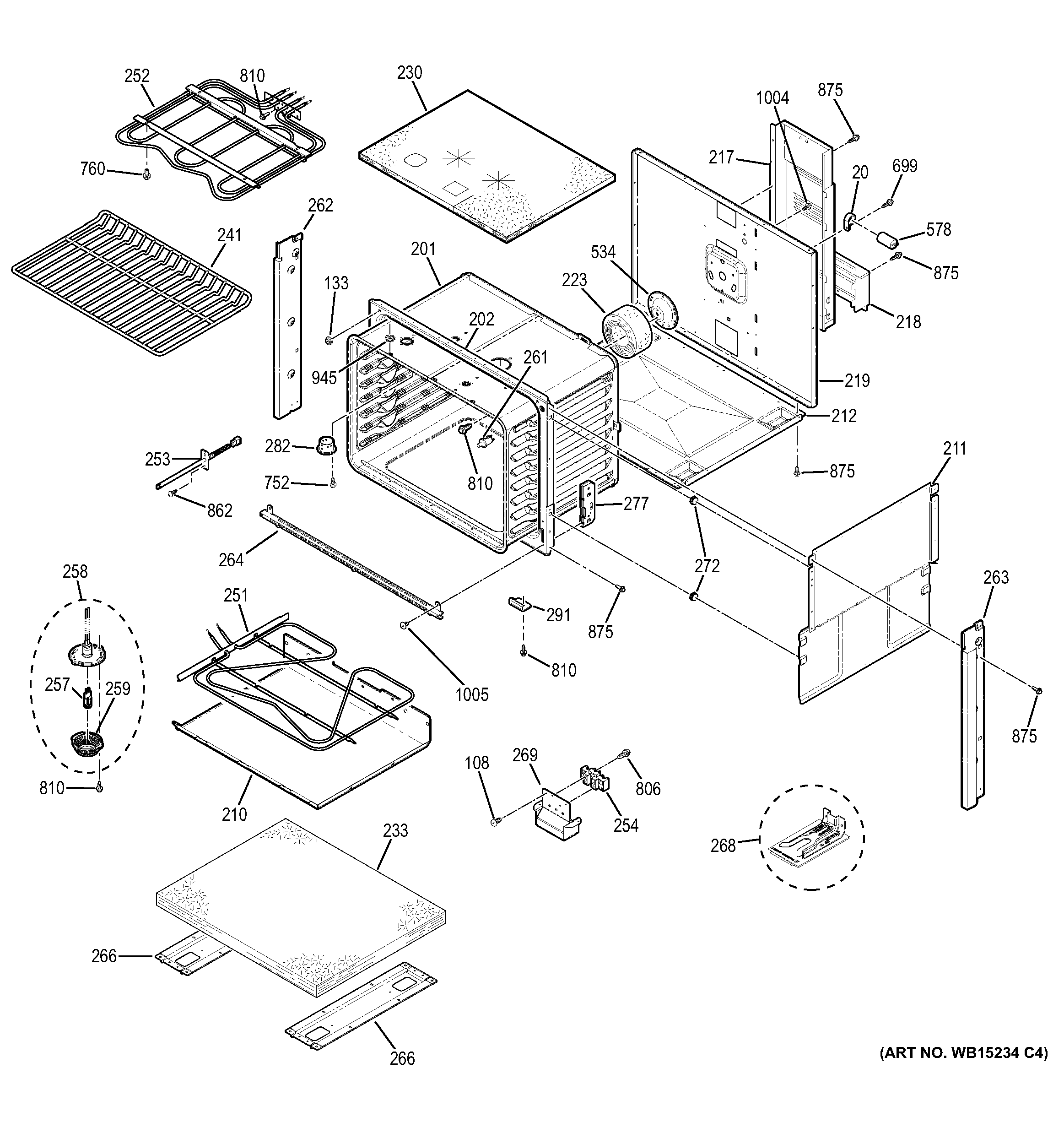

JD750DF1BB BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
108WB1X5364 GE Oven Mounting Screw
133WB01T10022 GE Oven Door Bumper
201WRAPPER OVN CAV ASM
202FRAME FRONT SLIDE-IN(BK)
210WB49T10071 GE Oven Reflector Pan
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217GEN WB34X20958
218WB34T10054 GE Oven Right Rear Lower Cover Wire
219WB02X20948 GE Oven Back Insulation Retainer
223WB35T10090 GE Oven Back & Bottom Insulation
230WB35T10253 GE Top Insulation
233INSULATION BASE
241RACK OVEN
251WB44X20956 GE Oven Element Hidden Bake Assembly
252WB44X20957 GE Oven Broil Element
253WB23T10015 GE Oven Sensor Probe
254WB17T10011 GE Oven Terminal Block
257WB49X29679 GE Range Halogen Bulb Kit
258WB25T10096 GE Oven Halogen Lamp Assembly
259WB25T10027 GE Oven Lens Lamp
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10521 GE Vertical Side Light Trim (Black)
263TRIM VERT SIDE RT (BK)
264WB07T10516 GE Oven Front Trim Assembly
266WB02K10048 GE Base Rail
268WB02X10739 GE Oven Anti-Tip Bracket
269WB17T10021 GE Oven Mount Terminal Block
272GEN WB02T10411
277GEN WB10T10083
282WB38X33650 GE Vent Tube
291GEN WB02X9152
534WB02X20947 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
806WH2X1186 GE Screw
862GEN WB01X1178
875WH2X930 GE Screw
945GEN WB02K5365
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
