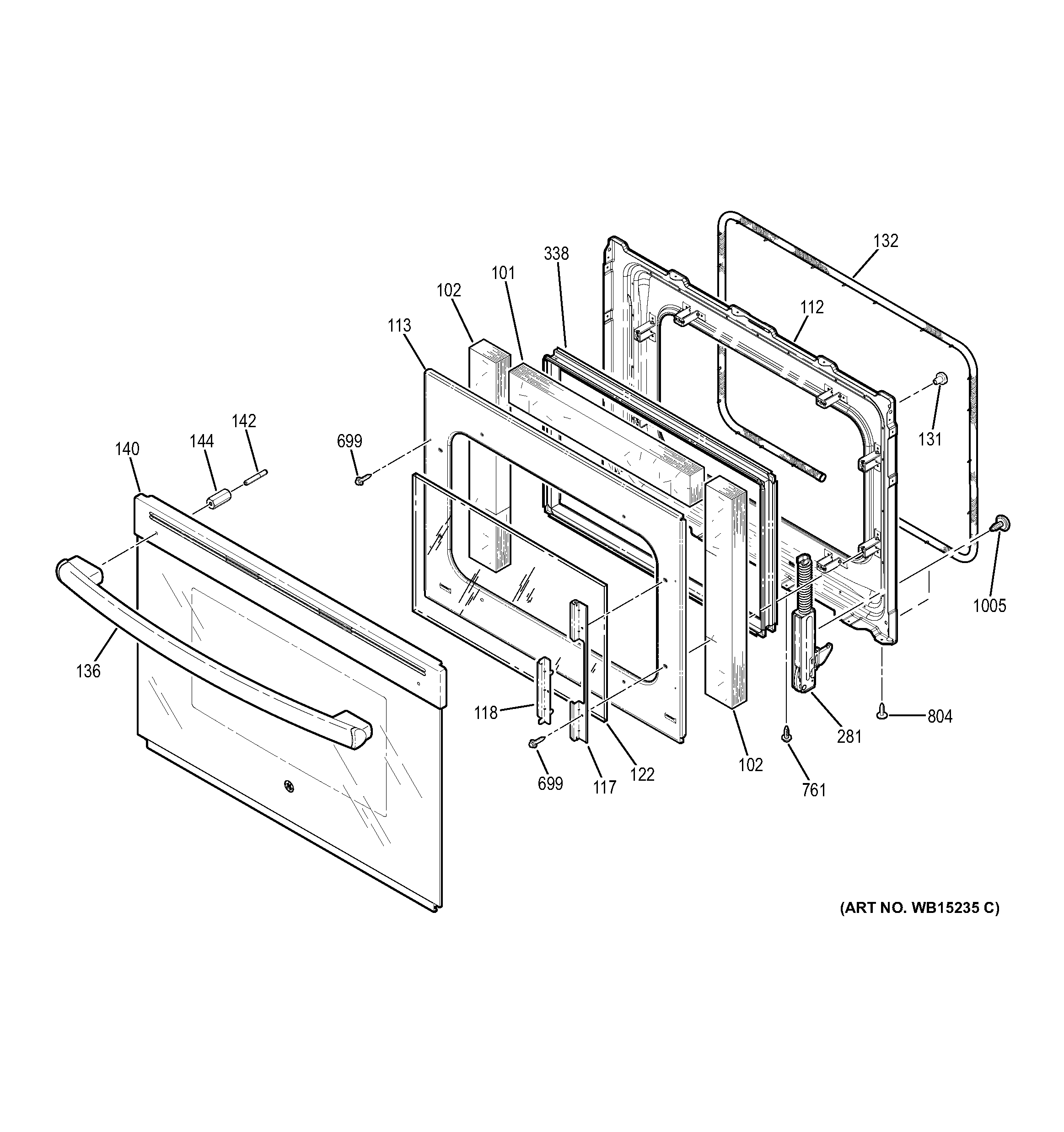

JD750DF1BB DOOR

Products

Position	Product
101	WB35T10226 GE Oven Door Side Insulation
102	WB35K10025 GE Oven Side Door Insulation
112	WB63X20052 GE Oven Door Lining Assembly
113	WB02T10371 GE Oven Retainer Insulation
117	WB56T10320 GE Oven Glass Door Retainer
118	WB56T10321 GE Oven Door Glass Retainer
122	WB57K5230 GE Oven Inner Glass Door
131	WB01T10026 GE Oven Door Pad
132	WB04T10076 GE Oven Door Gasket
136	HANDLE (BK)
140	OUTER DOOR-BLACK
142	WB02T10453 GE Oven Composite Stud
144	WB02T10452 GE Oven Reinforcement Spacer
281	WB10X30494 GE Left Door Hinge
281	WB10X20965 GE Oven Right Door Hinge
338	WB56T10105 GE Oven Inner Window Assembly
699	WB1M1 GE Oven Screw
761	WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
804	WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
1005	WB01T10008 GE Oven Screw 10-32
