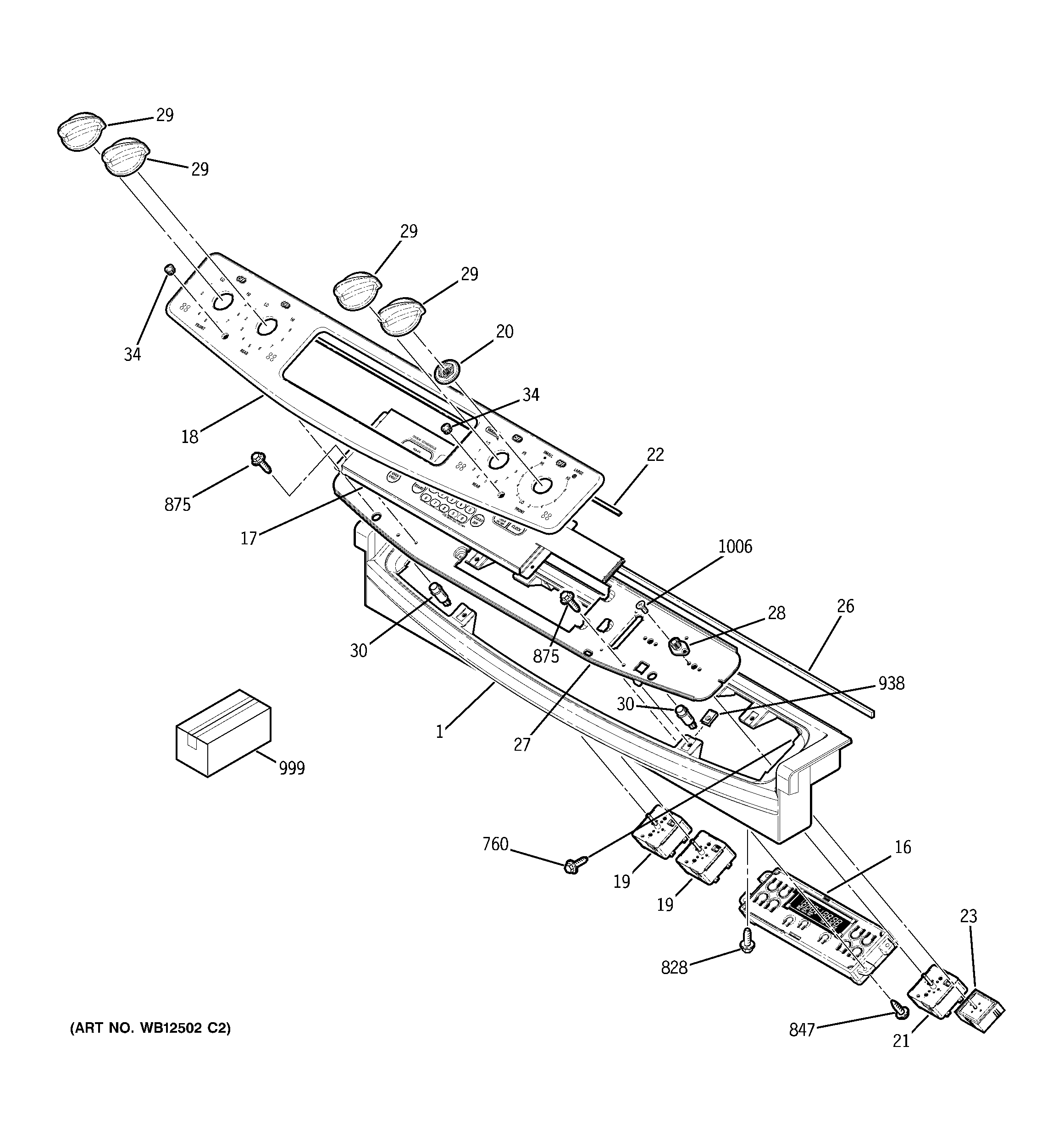

JD900WK4WW CONTROL PANEL

JD900WK4WW CONTROL PANEL

Written by

in

JD900WK4WW CONTROL PANEL

Products

PositionProduct
1WB36T10666 GE Oven Trim Piece
1WB36T10668 GE Oven Control Panel Assembly
1WB36T10667 GE Oven Control Panel Assembly
16WB27T10416 GE Oven Control ERC3B
17WB27T10760 GE Oven Control Board Overlay
17GEN WB27T10764
17GEN WB27T10762
18GEN WB27T10761
18GEN WB27T10763
18GEN WB27T10765
19WB24T10026 GE Oven Infinite Control Switch (2000W)
20WB02T10046 GE Oven Crystal Retainer
20GEN WB02K5238
21WB24T10012 GE Oven Infinite Switch
22WB02X10744 GE Oven Gasket Faceplate
23WB24T10134 GE Oven Infinite Control Switch
26WB02X10742 GE Oven Control Panel Gasket
27GEN WB36T10568
28WB02T10047 GE Oven Crystal Mount Assembly
29KNOB PROFILE SU
29GEN WB03T10095
29KNOB PROFILE SU
30GEN WB25T10048
34WB25T10022 GE Oven Snap-In Lens
760WB1X536 GE Oven Screw
828WB1X1141 GE Oven Screw 8-32
847SCREW
847GEN WB01K5161
847GEN WB01T10039
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
938WB1K5209 GE Oven Clip
999GEN 31-10622
999GEN 31-14347
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 49-80544
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
