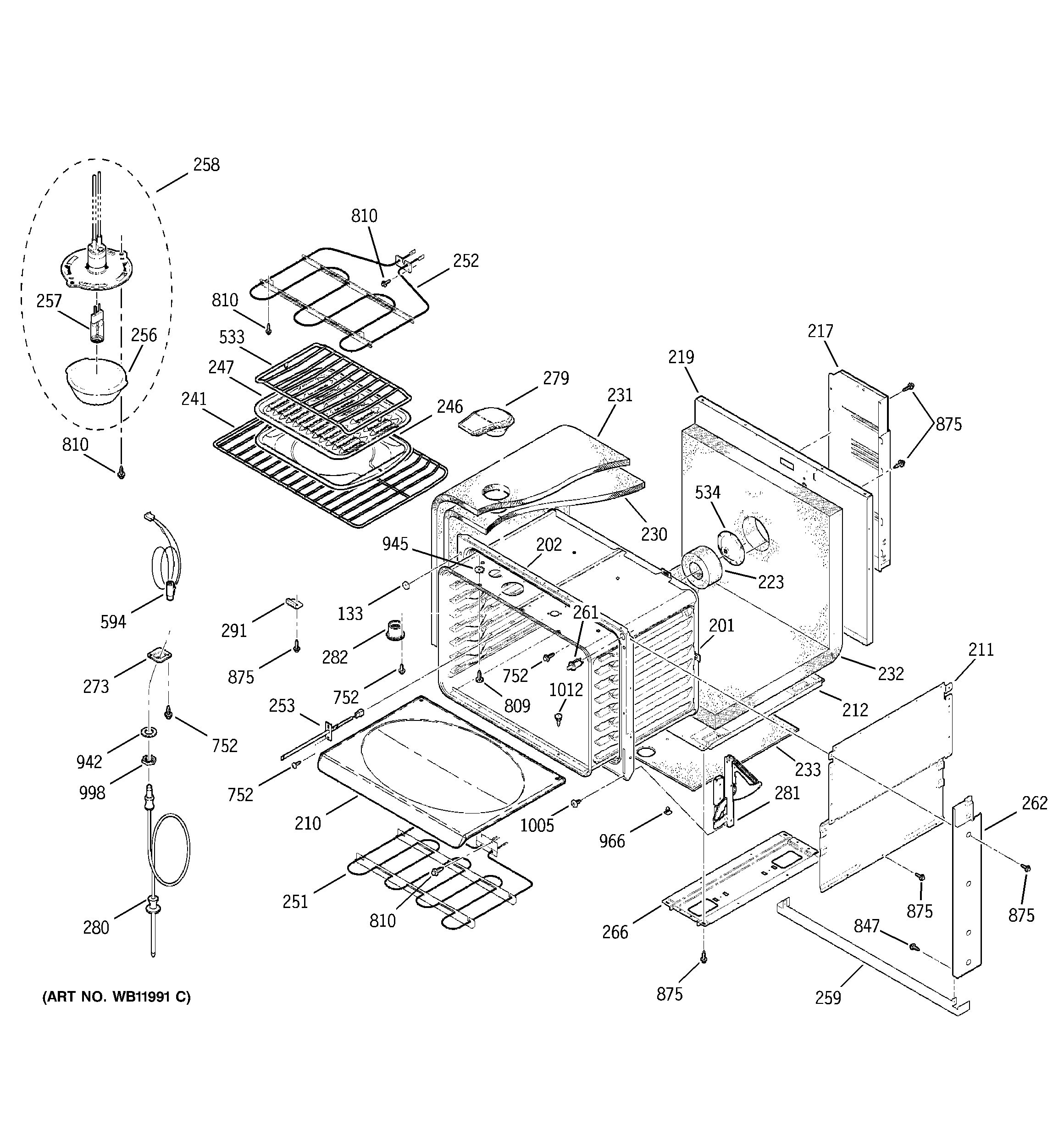

JD966TD1WW BODY PARTS

JD966TD1WW BODY PARTS

Written by

in

JD966TD1WW BODY PARTS

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
133WB02T10244 GE Oven Felt Pad
201OVEN BODY-UPPER
202GEN WB63T10064
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212INSULATION RETAINER-BTM
217GEN WB34K10046
219GEN WB56X10189
219GEN WB34T10036
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
233GEN WB35K10024
241RACK OVEN
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K10008 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256OV LAMP LENS LWR
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB25T10024
259GEN WB07K10142
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K10140
262GEN WB07K10141
266WB02K10048 GE Base Rail
273PROBE COVER
279GEN WB38T10014
280WB20T10024 GE Oven Thermistor Probe
281GEN WB14T10005
281WB14T10006 GE Oven Hinge Assembly Left
282GEN WB28K5010
291GEN WB02X9152
533WB48X5108 GE Oven Roasting Rack
534GEN WB26T10003
594GEN WB08T10014
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
847GEN WB01K5161
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
