JD968BK5BB CONTROL PANEL

JD968BK5BB CONTROL PANEL

Written by

in

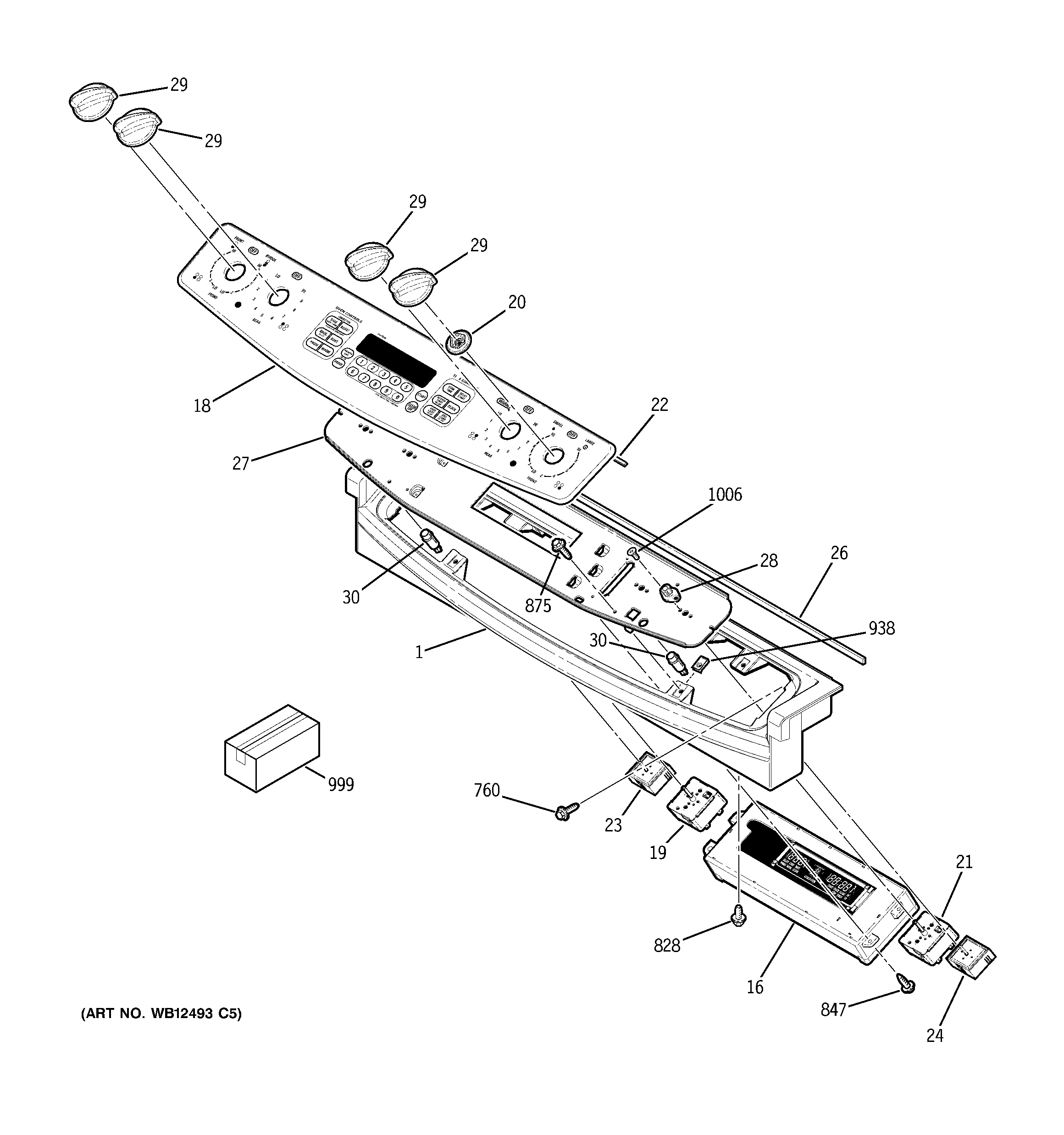

JD968BK5BB CONTROL PANEL

Products

PositionProduct
1WB36T10666 GE Oven Trim Piece
1WB36T10668 GE Oven Control Panel Assembly
16WB27T10803 GE Oven Control ERC
18GEN WB27T10877
18GEN WB27T10875
19SWITCH INFINITE CONTROL
20GEN WB02K5238
20WB02T10046 GE Oven Crystal Retainer
20WB02T10152 GE Oven Motor Capacitor Bracket
21WB24T10012 GE Oven Infinite Switch
22WB02X10744 GE Oven Gasket Faceplate
23WB24T10134 GE Oven Infinite Control Switch
24WB24T10139 GE Oven Infinite Switch Control
26WB02X10742 GE Oven Control Panel Gasket
27INSERT CONTROL PNL
28WB02T10047 GE Oven Crystal Mount Assembly
29KNOB PROFILE SU
29KNOB PROFILE SU
30WB25T10055 GE Oven Light Indicator
760WB1X536 GE Oven Screw
828WB1X1141 GE Oven Screw 8-32
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
938WB1K5209 GE Oven Clip
999WB18T10386 GE Oven Touch Glass Wire Harness
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 49-80543
999GEN 31-10622
999GEN 31-14744
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
