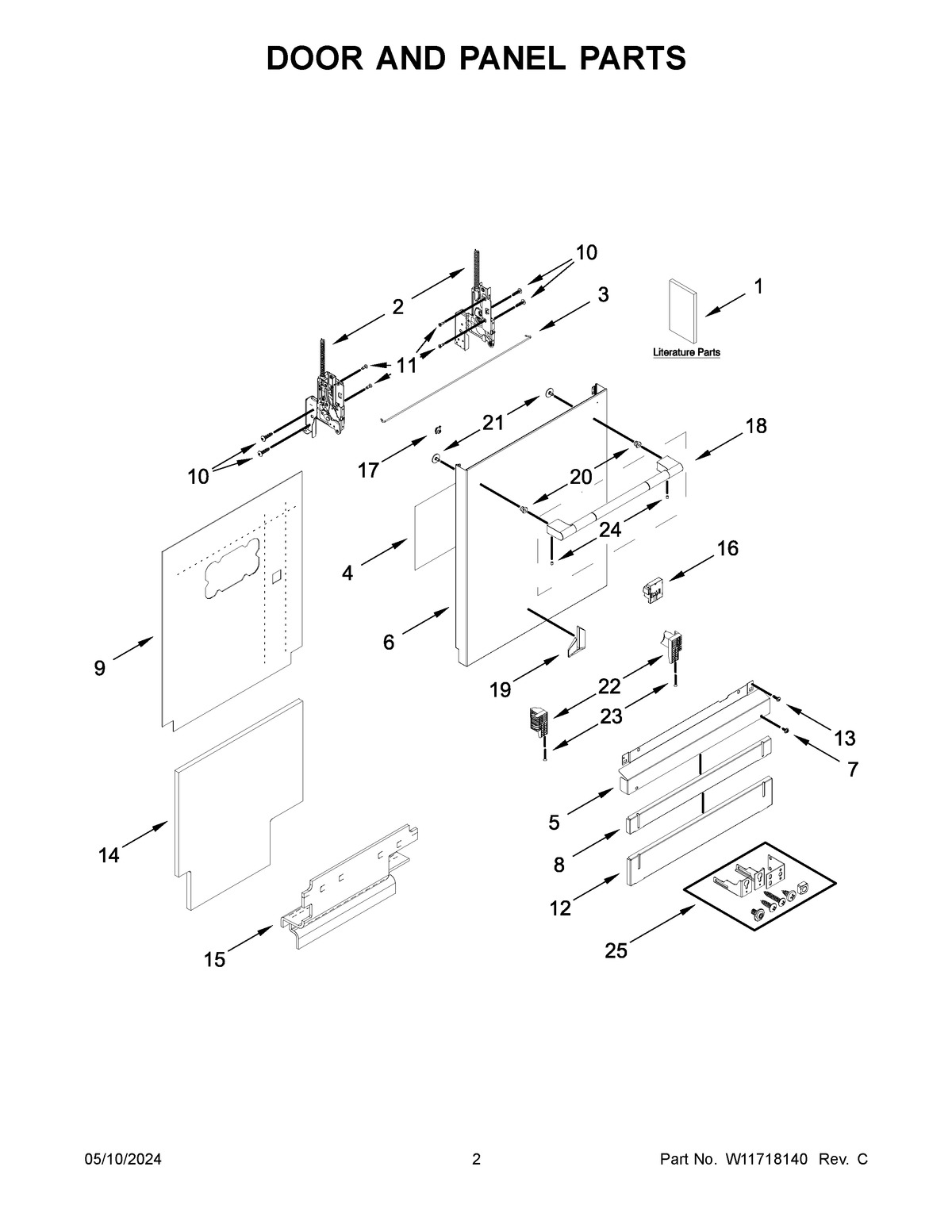

JDAF5924RL0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1OWNERS MANUAL
1BTECH SHEET
2AARM, HINGE (RIGHT HAND)
2ARM, HINGE (LEFT HAND)
3CROSS BRACE, DOOR
4INSULATION, FRONT PANEL
5PANEL, MAIN ACCESS (BLACK)
6FRONT PANEL (INCLUDES 4,17,19,20,21,22,23 & 24) (STAINLESS)
7WP302868 Whirlpool Screw
8PANEL, 2" ADJUSTABLE (BLACK)
9INSULATION, INNER DOOR
10SCREW
11SCREW
12PANEL, 4" ADJUSTABLE (BLACK)
13SCREW
14INSULATION, DOOR
15INSULATION, LONG TUB LIP
16DISPLAY, FLOOR
17NUT, BARREL
18W11320226 Whirlpool Dishwasher Handle
19W11320231 Whirlpool Dishwasher Nameplate
20W11157086 Whirlpool Dishwasher Door Handle Stud
21W10826179 Whirlpool Dishwasher Screw
22SUPPORT, DOOR (LEFT)
22ASUPPORT, DOOR (RIGHT)
23SCREW
24W10917698 Whirlpool Dishwasher Screw
25TOE KICK INSTALL HARDWARE
