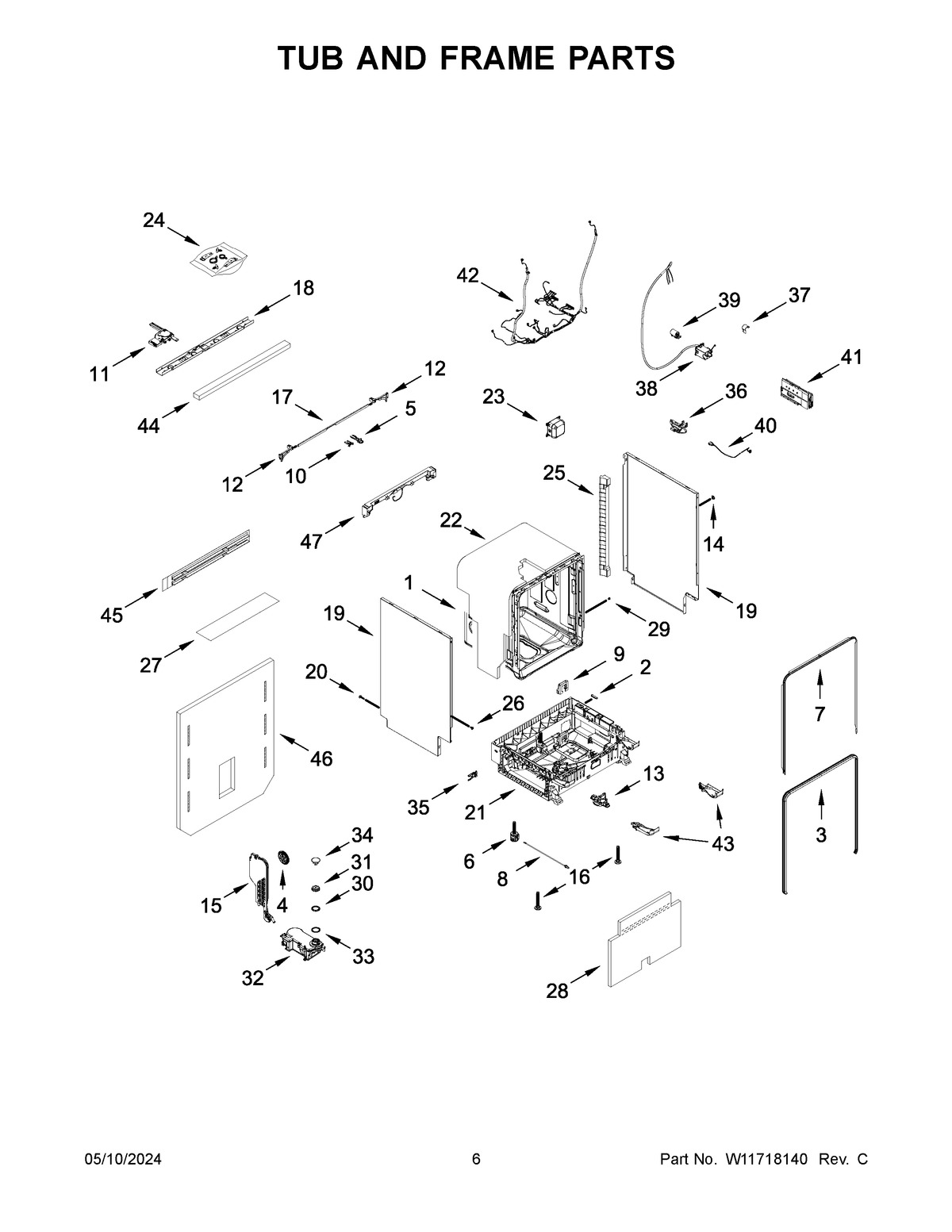

JDAF5924RL0 04 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB (NOT SERVICED)
2	PAD, TUB SUPPORT
3	GASKET
4	NUT, AIR BREAK
5	STRIKE, LATCH
6	LEVLER-LEG
7	SUPPORT
8	ROD
9	HOLDER, DAMPER
10	COVER, DOOR OPENING
11	W11693591 Whirlpool Latch Bolt
12	COVER, TUB CORNER (LEFT)
12A	COVER, TUB CORNER (RIGHT)
13	FLOAT SWITCH
14	PLUG, TUB
15	AIR BREAK
16	LEG, LEVELING (FRONT)
17	COVER, TOP
18	BRACE
19A	SIDE PANEL (RIGHT)
19	SIDE PANEL (LEFT)
20	SCREW
21	ASSEMBLY, BASE
22	SHIELD, TUB SOUND
23	ASSEMBLY, JUNCTION BOX
24	MISCELLANEOUS PARTS BAG
25	SPACER, SIDE PANEL
26	SCREW
27	STRIP, ANTI-CONDENSATION
28	INSULATION, FLO
29	BUTTON, TUB
30	NUT, SOFTNER
31	CAP, SALT
32	SOFTENER, WATER
33	SEAL, SOFTENER
34	FUNNEL, SALT
35	PLATE, IN/OUT HOSES
36	JUMPER, RFI TO CONTROL
37	SPRING, GROUNDING
38	POWER CORD ASSEMBLY
39	FILTER, RFI
40	JUMPER HARNESS, SERVICE PORT
41	W11696408-includeCORE Whirlpool Electronic Control+Core
42	WIRING HARNESS, MAIN
43A	CHANNEL, OVERFLOW (RIGHT)
43	CHANNEL, OVERFLOW (LEFT)
44	FOAM, CROSSBAR
45	KIT, SIDE COVER INSTALLATION
46	INSULATION, BACK
47	CROSSBAR, UPPER REAR
