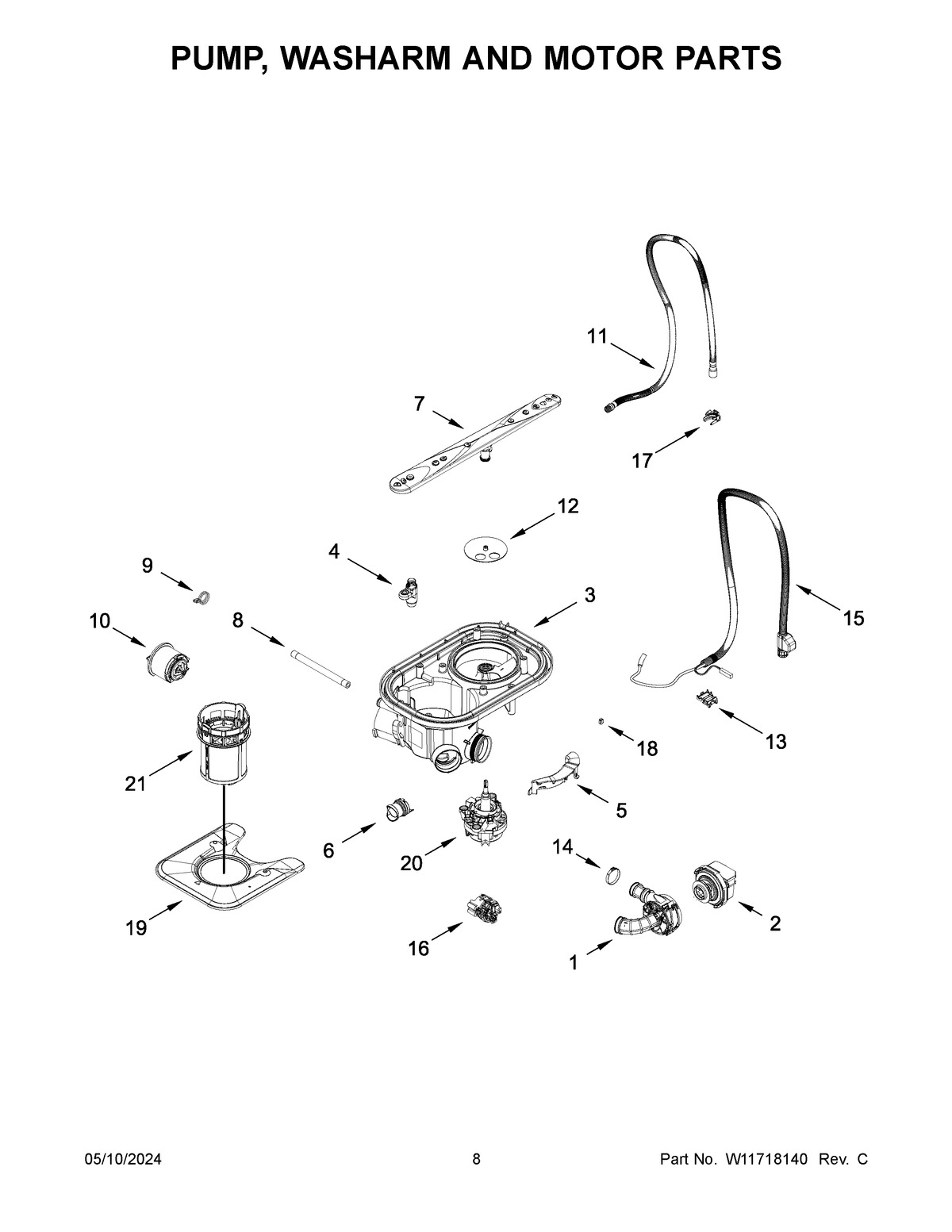

JDAF5924RL0 05 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	W11690626 Whirlpool Heat Pump
2	MOTOR, PUMP
3	SUMP (INCLUDES SEAL)
4	DRAIN VENT ASSEMBLY
5	DIFFUSER, INLET
6	CHECK VALVE, DRAIN
7	WASH ARM ASSEMBLY
8	HOSE, PUMP INLET
9	WP596669 Whirlpool Hose Clamp
10	PUMP-DRAIN
11	W11693602 Whirlpool Drain Hose
12	DISC, DIVERTER
13	HOUSING, CONNECTOR
14	W10783615 Whirlpool Dishwasher Clamp
15	HOSE-FILL
16	W11410464 Whirlpool Sensor
17	CLIP, HOSE
18	CLAMP, HOSE
19	GRATE
20	MOTOR
21	FILTER
