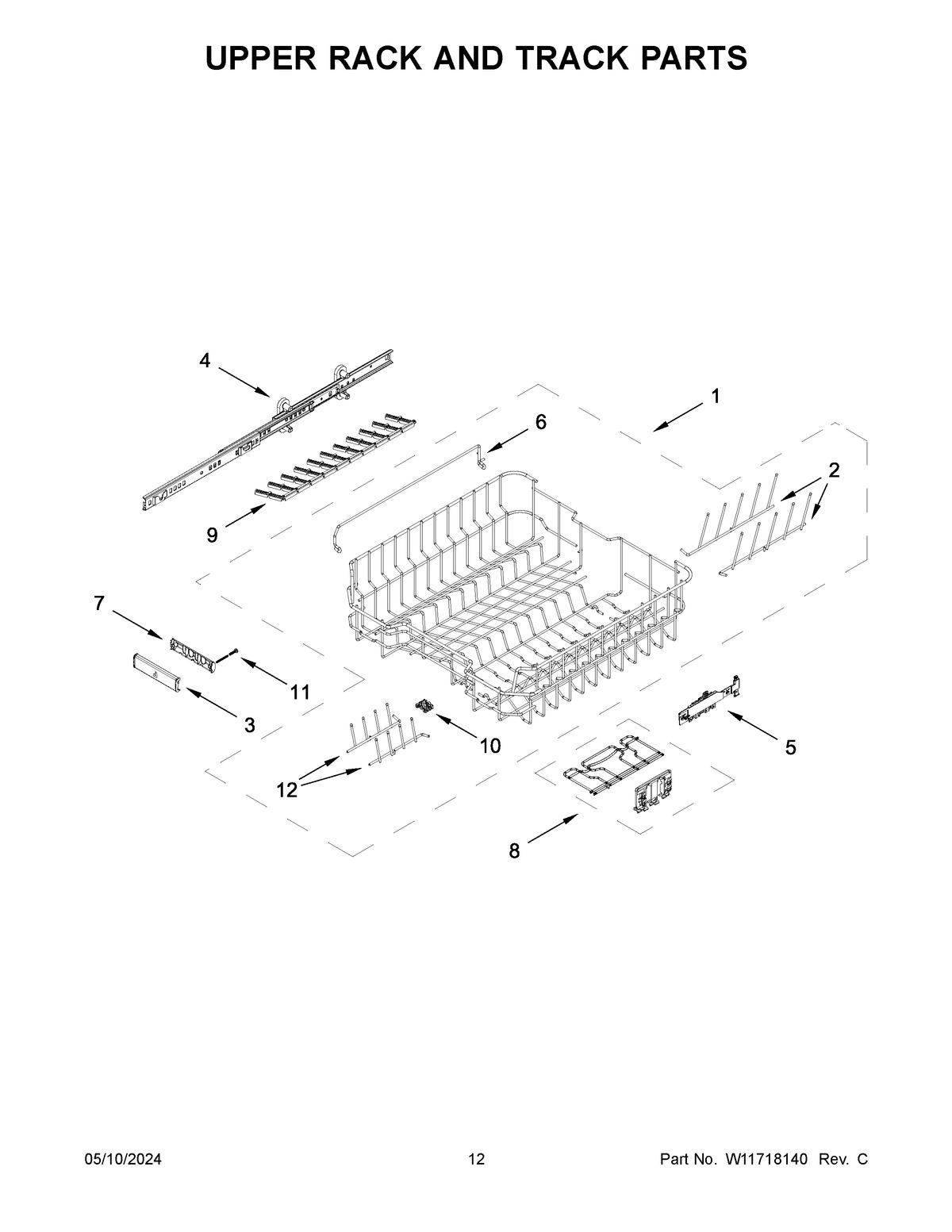

JDAF5924RL0 07 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	DISHRACK, UPPER
2A	TINE ROW, BACK (RIGHT)
2	TINE ROW, BACK (LEFT)
3	HANDLE, FRONT
4	ASSEMBLY, TRACK & MOUNT (LEFT)
4A	ASSEMBLY, TRACK & MOUNT (RIGHT)
5	ADJUSTMENT ASSEMBLY (LEFT)
5A	ADJUSTMENT ASSEMBLY (RIGHT)
6	SUPPORT, TINE ROW
7	HANDLE, REAR
8	ASSEMBLY, CUPSHELF
9	TINE ROW, FOLD DOWN
10	CLIP, TINE ROW
11	SCREW
12	TINE ROW, FRONT (LEFT)
12A	TINE ROW, FRONT (RIGHT)
