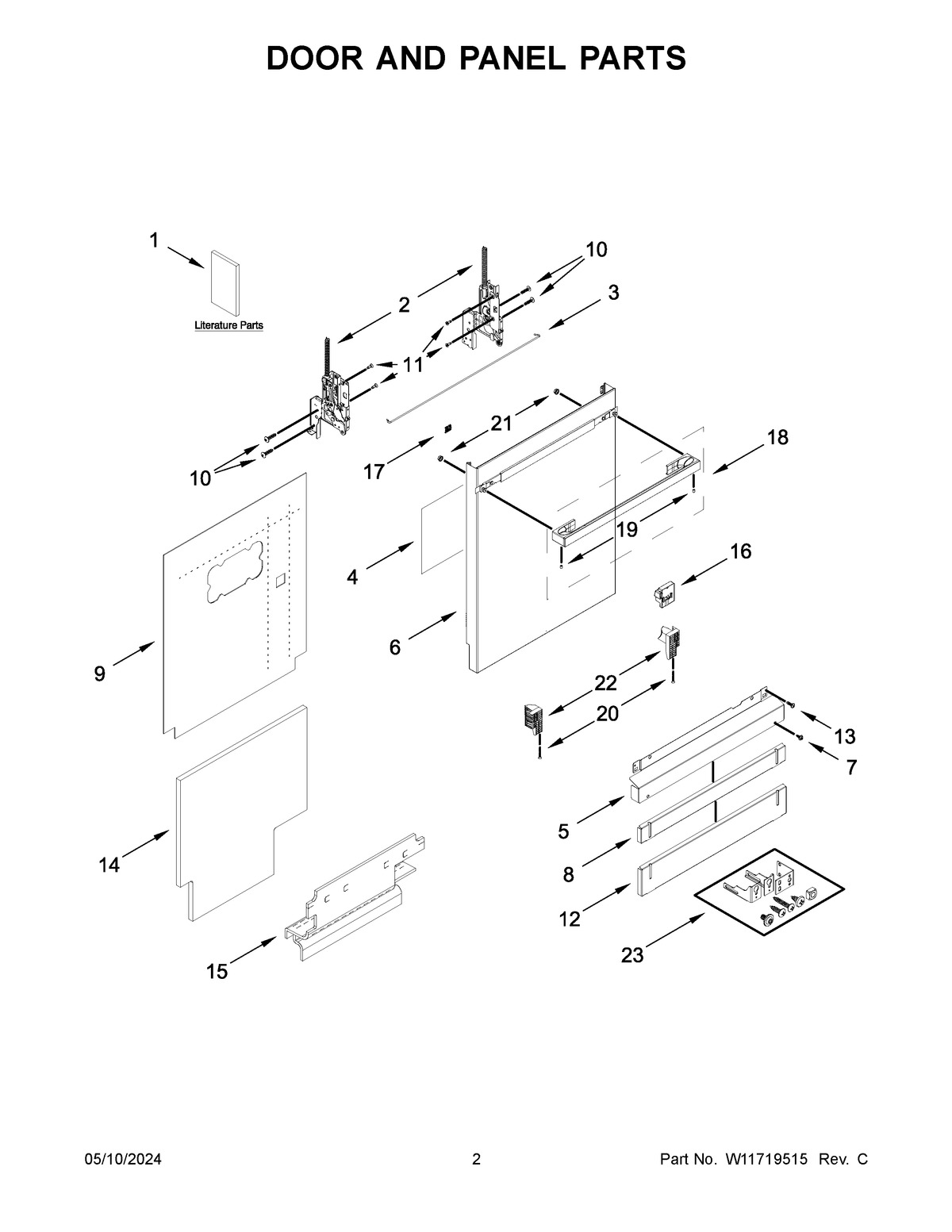

JDAF5924RM0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	OWNERS MANUAL
1B	TECH SHEET
2	ARM, HINGE (LEFT HAND)
2A	ARM, HINGE (RIGHT HAND)
3	CROSS BRACE, DOOR
4	INSULATION, FRONT PANEL
5	PANEL, MAIN ACCESS (BLACK)
6	FRONT PANEL (INCLUDES 4,17,19,20,21 & 22) (STAINLESS)
7	WP302868 Whirlpool Screw
8	PANEL, 2" ADJUSTABLE (BLACK)
9	INSULATION, INNER DOOR
10	SCREW
11	SCREW
12	PANEL, 4" ADJUSTABLE (BLACK)
13	SCREW
14	INSULATION, DOOR
15	INSULATION, LONG TUB LIP
16	DISPLAY, FLOOR
17	NUT, BARREL
18	W11190789 Whirlpool Handle Assembly
19	W10907991 Whirlpool Screw
20	SCREW
21	WP776338 Whirlpool Compactor Nut
22A	SUPPORT, DOOR (RIGHT)
22	SUPPORT, DOOR (LEFT)
23	TOE KICK INSTALL HARDWARE
