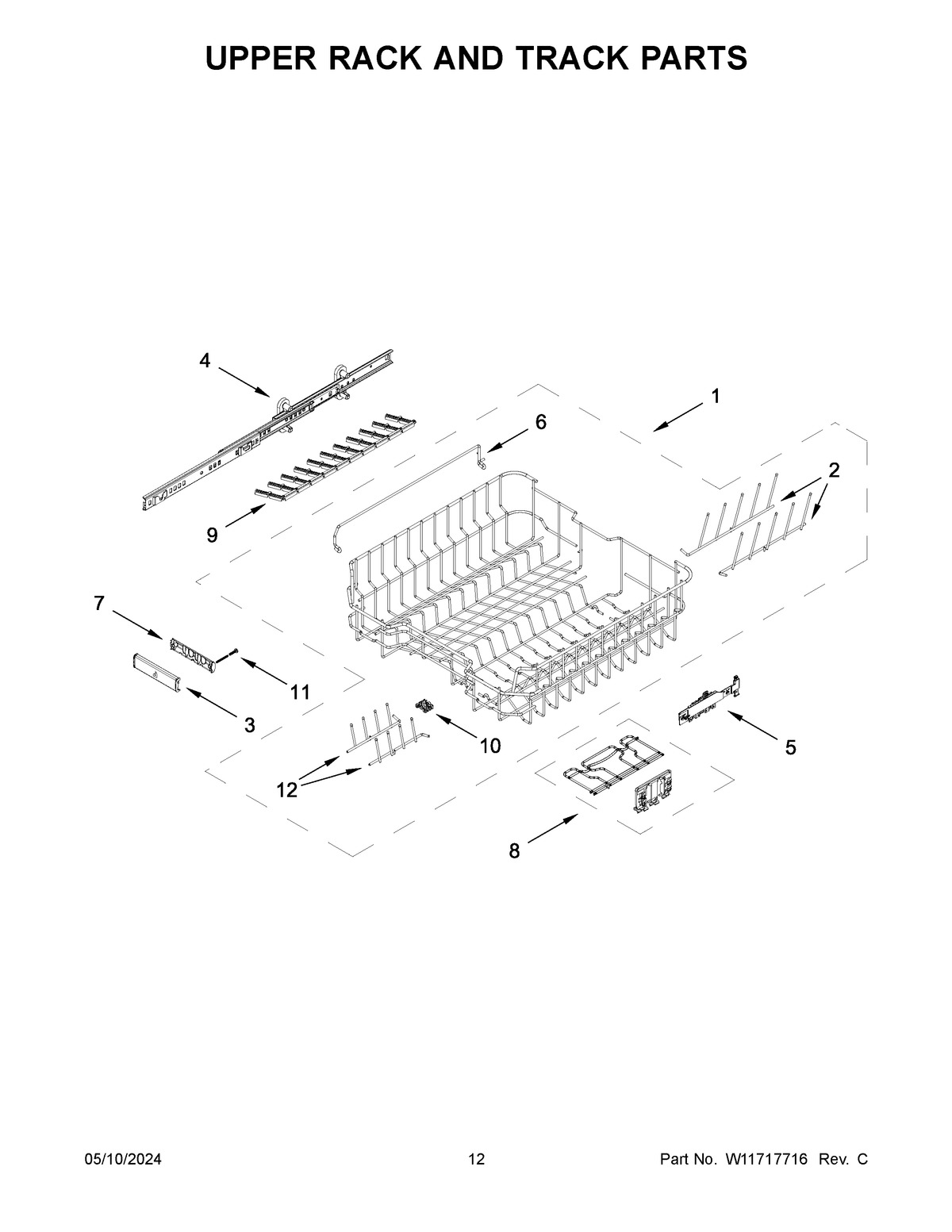

JDAF5924RX0 07 – UPPER RACK AND TRACK PARTSadmin2025-04-26T11:51:26+00:00JDAF5924RX0 07 – UPPER RACK AND TRACK PARTS
Products
| Position | Product |
|---|
| 1 | DISHRACK, UPPER |
| 2A | TINE ROW, BACK (RIGHT) |
| 2 | TINE ROW, BACK (LEFT) |
| 3 | HANDLE, FRONT |
| 4 | ASSEMBLY, TRACK & MOUNT (LEFT) |
| 4A | ASSEMBLY, TRACK & MOUNT (RIGHT) |
| 5 | ADJUSTMENT ASSEMBLY (LEFT) |
| 5A | ADJUSTMENT ASSEMBLY (RIGHT) |
| 6 | SUPPORT, TINE ROW |
| 7 | HANDLE, REAR |
| 8 | ASSEMBLY, CUPSHELF |
| 9 | TINE ROW, FOLD DOWN |
| 10 | CLIP, TINE ROW |
| 11 | SCREW |
| 12 | TINE ROW, FRONT (LEFT) |
| 12A | TINE ROW, FRONT (RIGHT) |
