JDAF5924RX0 08 – LOWER RACK PARTS – Aparts

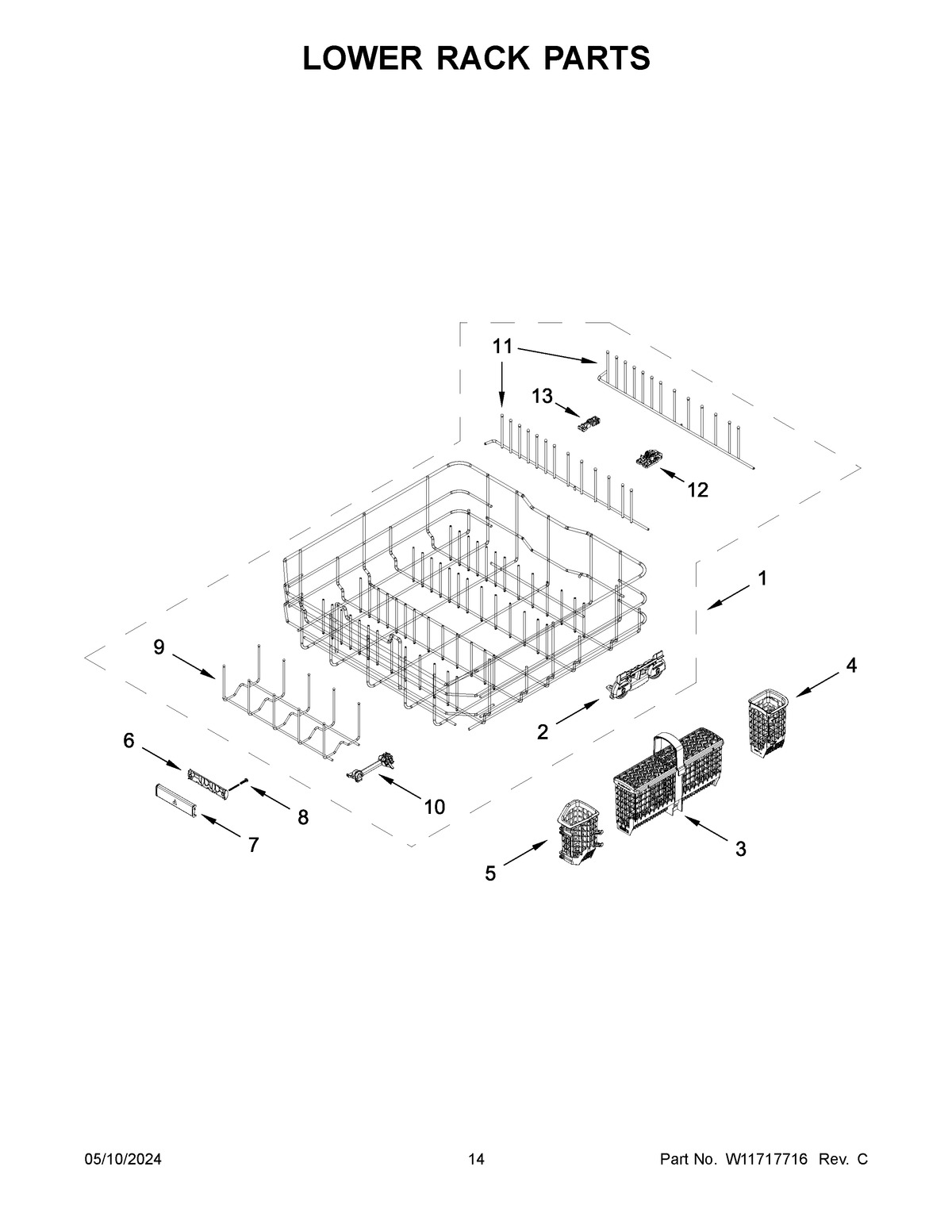

JDAF5924RX0 08 – LOWER RACK PARTS

Products

Position	Product
1	DISHRACK, LOWER
2	WHEEL & TRANSPORT ASSEMBLY
3	SILVERWARE BASKET ASSEMBLY
4	UTENSIL BASKET (REAR)
5	UTENSIL BASKET (FRONT)
6	HANDLE, REAR
7	HANDLE, FRONT
8	SCREW
9	SLIDING TINE, BOWL
10	CLIP, SLIDING TINE
11	TINE, FOLDDOWN (REAR)
11A	TINE, FOLDDOWN (FRONT)
12	CLIP, POSITIONING
13	CLIP, RETAINER
