JDB1050AWB 06 – TRACK & RACK ASSEMBLY (UPR)

JDB1050AWB 06 – TRACK & RACK ASSEMBLY (UPR)

Written by

in

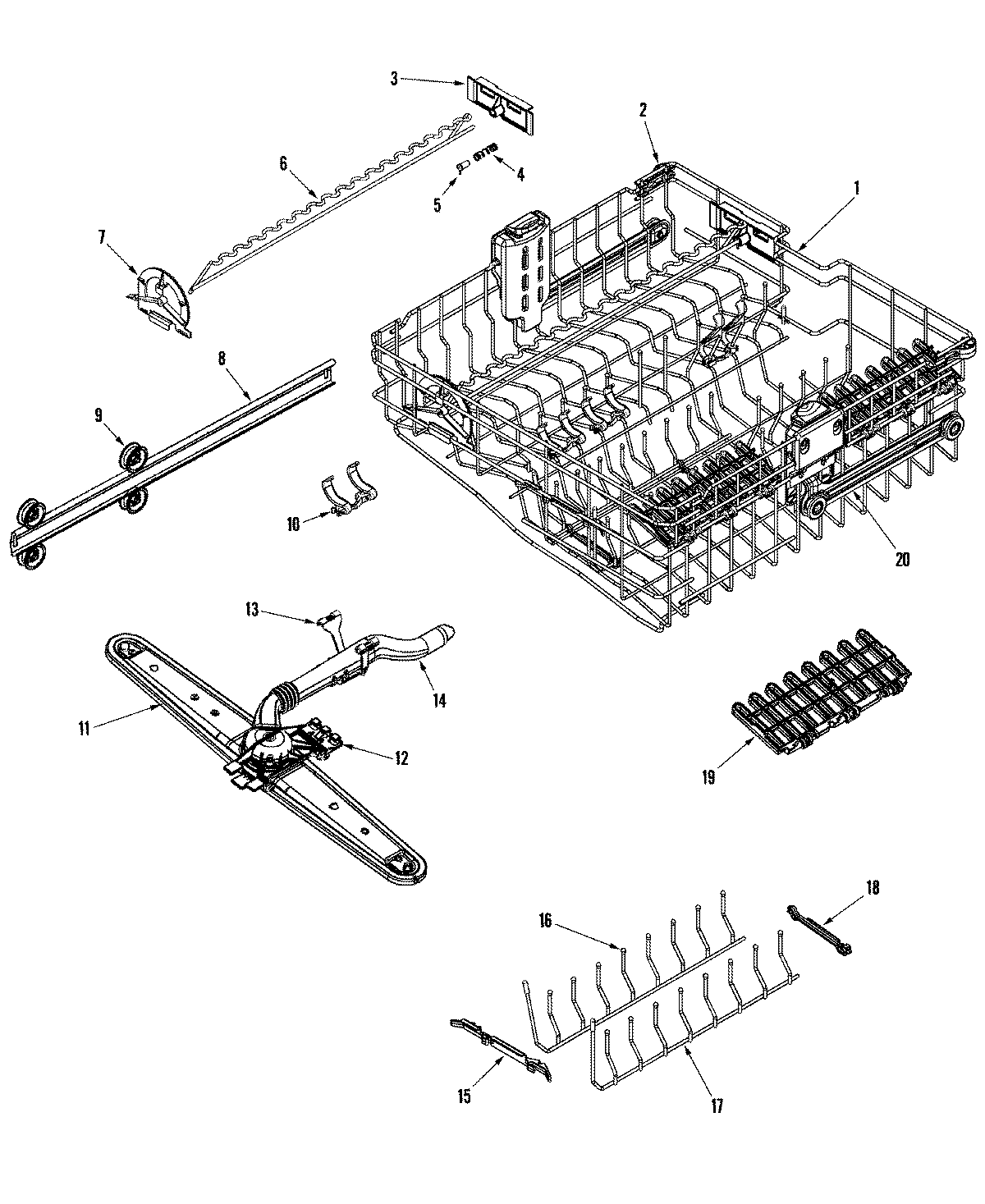

JDB1050AWB 06 – TRACK & RACK ASSEMBLY (UPR)

Products

PositionProduct
1MAY 99002905
1MAY 99002705
2MAY 99002853
4MAY 99002715
5MAY 99002714
6MAY 99002713
7MAY 99002711
8WPW10261227 Whirlpool Dishwasher Stop Assembly
8TRACK, RACK
9WP99002947 Whirlpool Tub Wheel
9WPY912798 Whirlpool Dishwasher Tub Washer Wheel
11WP99003070 Whirlpool Dishwasher Wash Arm
11SCREW, TRUSS HEAD (10-18X.75)
12CLIP, UPR WASH MANIFOLD (FRT)
1399002945 Whirlpool Dishwasher Upper Wash Manifold Clip
14WASH MANIFOLD ASSY (UPR)
15WP99002710 Whirlpool Dishwasher Fold-Down Latch
17WP99003496 Whirlpool Convertible Row Tine
18WP99002709 Whirlpool Tine Pivot Clip
19MAY 99002716
20MAY 99002783
20MAY 99002782
