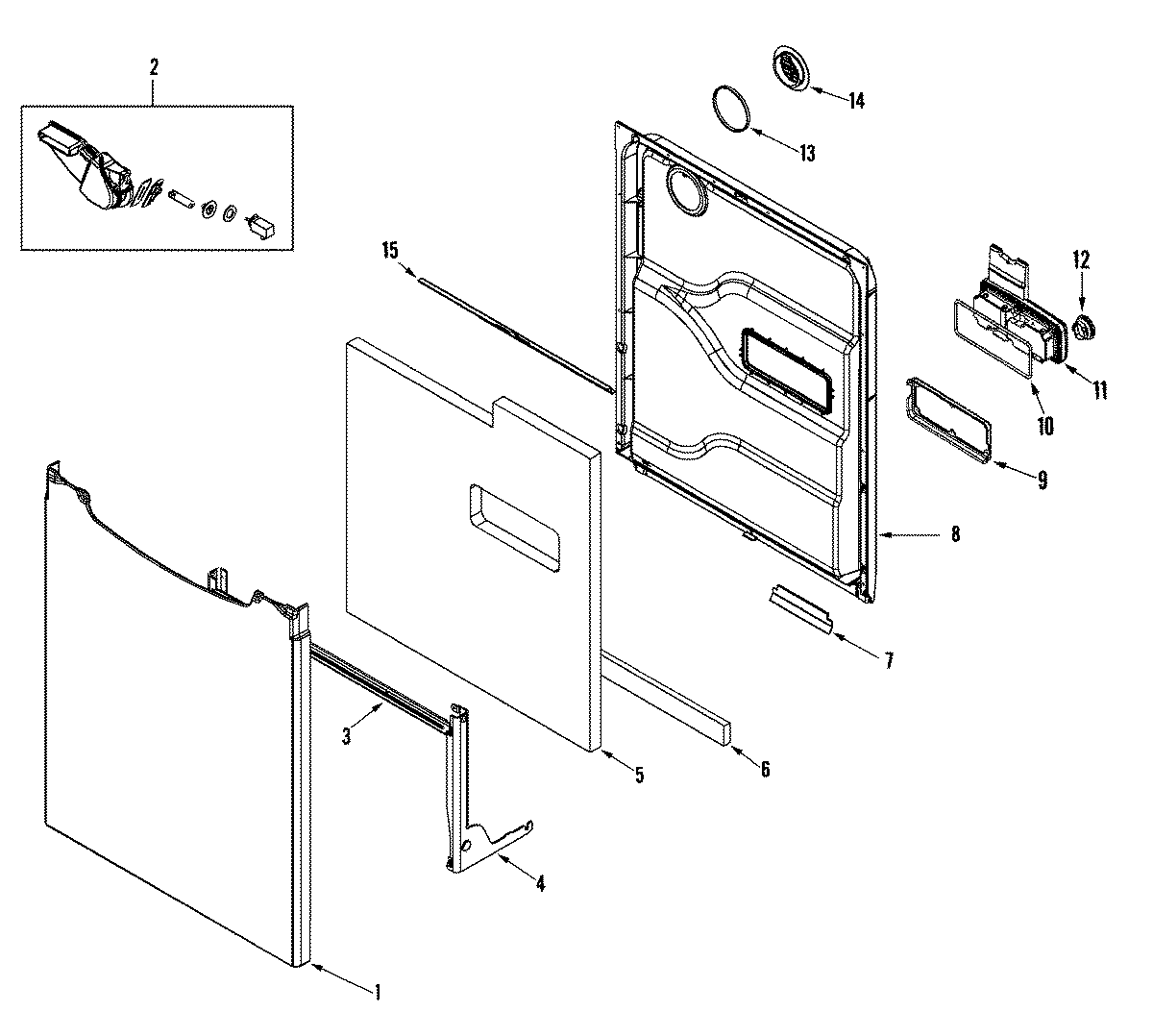

JDB1050AWQ 02 – DOOR

Products

PositionProduct
1Panel, Front Deco (Bisque)
2VENT HOUSING ASSEMBLY
3MAY 99002604
4MAY 99002929
4MAY 99001075
4WPW10118637 Whirlpool Dishwasher Bracket
5INSULATION, DOOR
6WPW10117748 Whirlpool Dishwasher Insulation Pad
7WP99002589 Whirlpool Dishwasher Door Seal
8DOOR, INNER (W/DAMPER)
8MAY 99002776
9SCREW, No.8X1/2 HEX WASHER HEAD
96-918900 Whirlpool Dishwasher Bracket
10MAY 99002270
11MAY 99002611
12WP99002614 Whirlpool Dishwasher Rinse Knob
1399002590 Whirlpool Dishwasher Door Vent Bezel
14MAY 99002186
15WPY912620 Whirlpool Dishwasher Screw
15MAY 99002586
