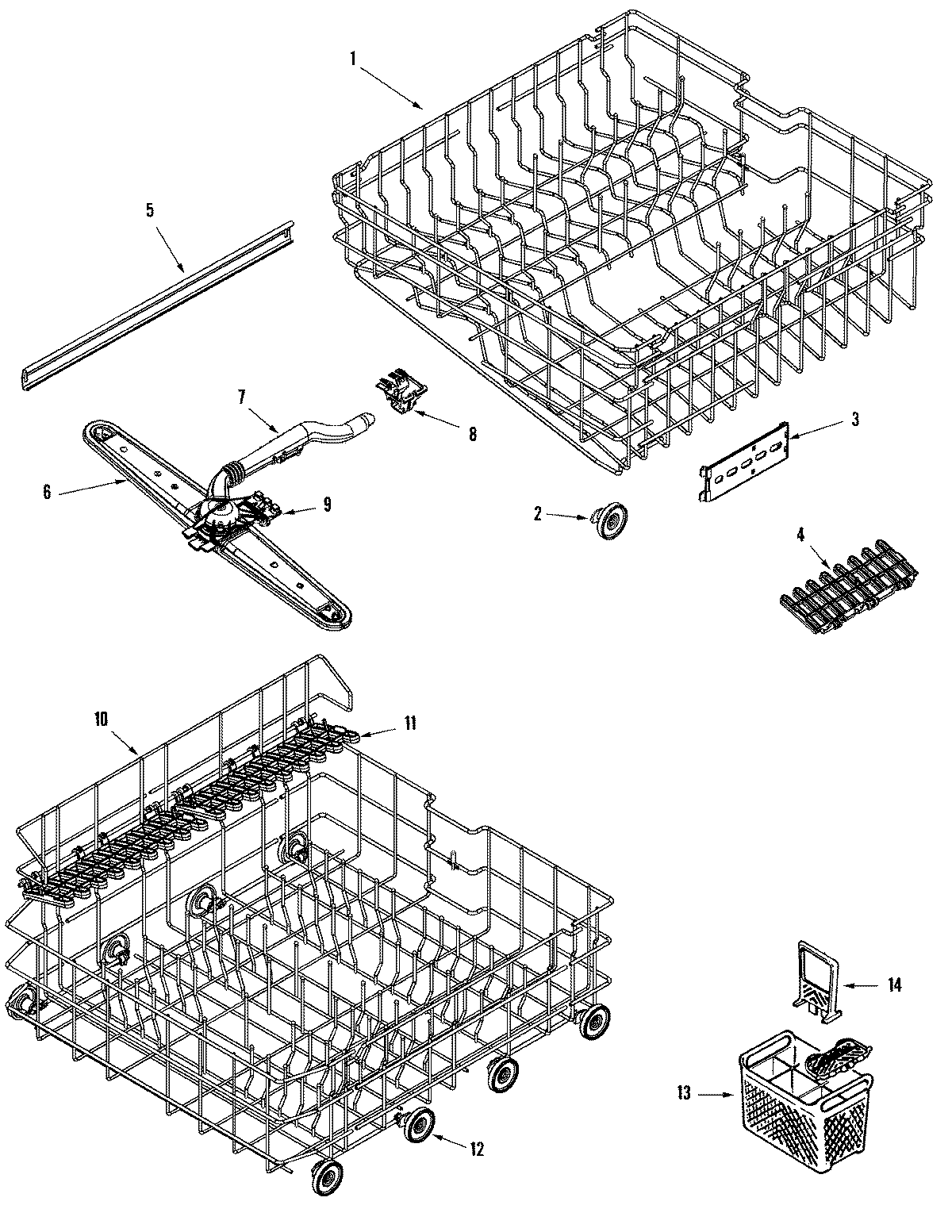

JDB1060AWB 04 – RAIL & RACK ASSEMBLY

JDB1060AWB 04 – RAIL & RACK ASSEMBLY

Written by

in

JDB1060AWB 04 – RAIL & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003279
1MAY 99003061
2WP99003148 Whirlpool Dishwasher Wheel
3MAY 99003063
4MAY 99003065
5WP99003068 Whirlpool Dishwasher Bearing
5WP99003282 Whirlpool Dishwasher Rail Stop
5MAY 99003066
5MAY 99003069
6WP99003070 Whirlpool Dishwasher Wash Arm
7MAY 99003142
899003071 Whirlpool Dishwasher Upper Wash Manifold Clip
9MAY 99003072
10MAY 99003073
10MAY 99003062
11MAY 99003074
12WP99003149 Whirlpool Rack Wheel
13WP6-918873 Whirlpool Silverware Basket
14MAY 99003077
