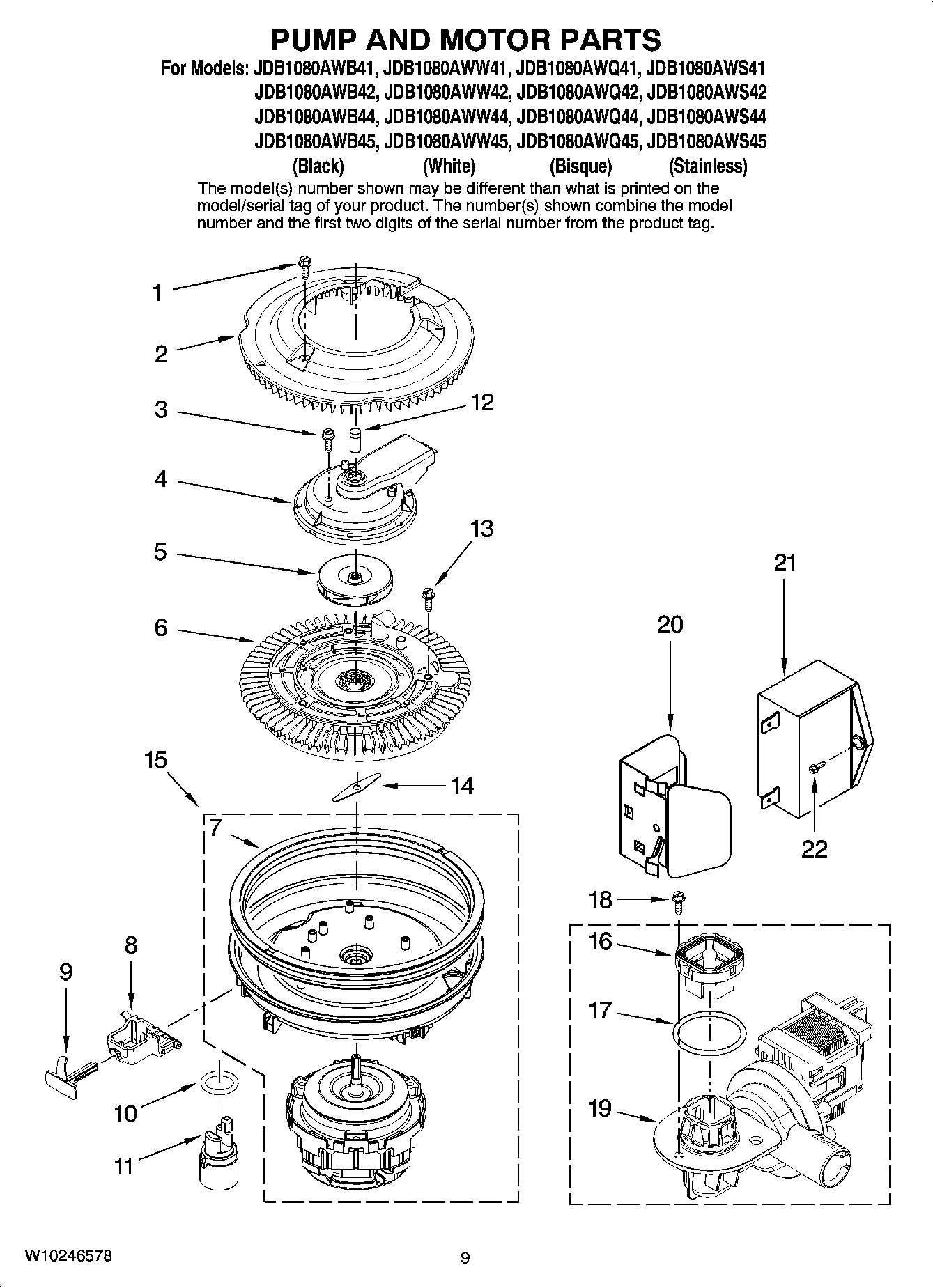

JDB1080AWB44 08 – PUMP AND MOTOR PARTS

JDB1080AWB44 08 – PUMP AND MOTOR PARTS

Written by

in

JDB1080AWB44 08 – PUMP AND MOTOR PARTS

Products

PositionProduct
1MAY 99002666
2GUARD, FILTER (DARK GREY)
3SCREW, STAINLESS PAN HEAD
4MAY 99003145
5WP99002659 Whirlpool Impeller
6WPW10192799 Whirlpool Dishwasher Accumulator
712002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
8MAY 99003056
9MAY 99003057
1099002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
11MAY 99003613
12MAY 99003697
13SCREW, DISCHARGE HOUSING
14MAY 99003427
15Wash Motor Assy.
16MAY 99003309
17MAY 99002857
18SCREW, TRUSS HEAD (10-18X.75)
19MAY W10200518
20MAY 99003440
21CAPACITOR, MOTOR
22SCREW 10-32X.400 (T-20 HEAD)
