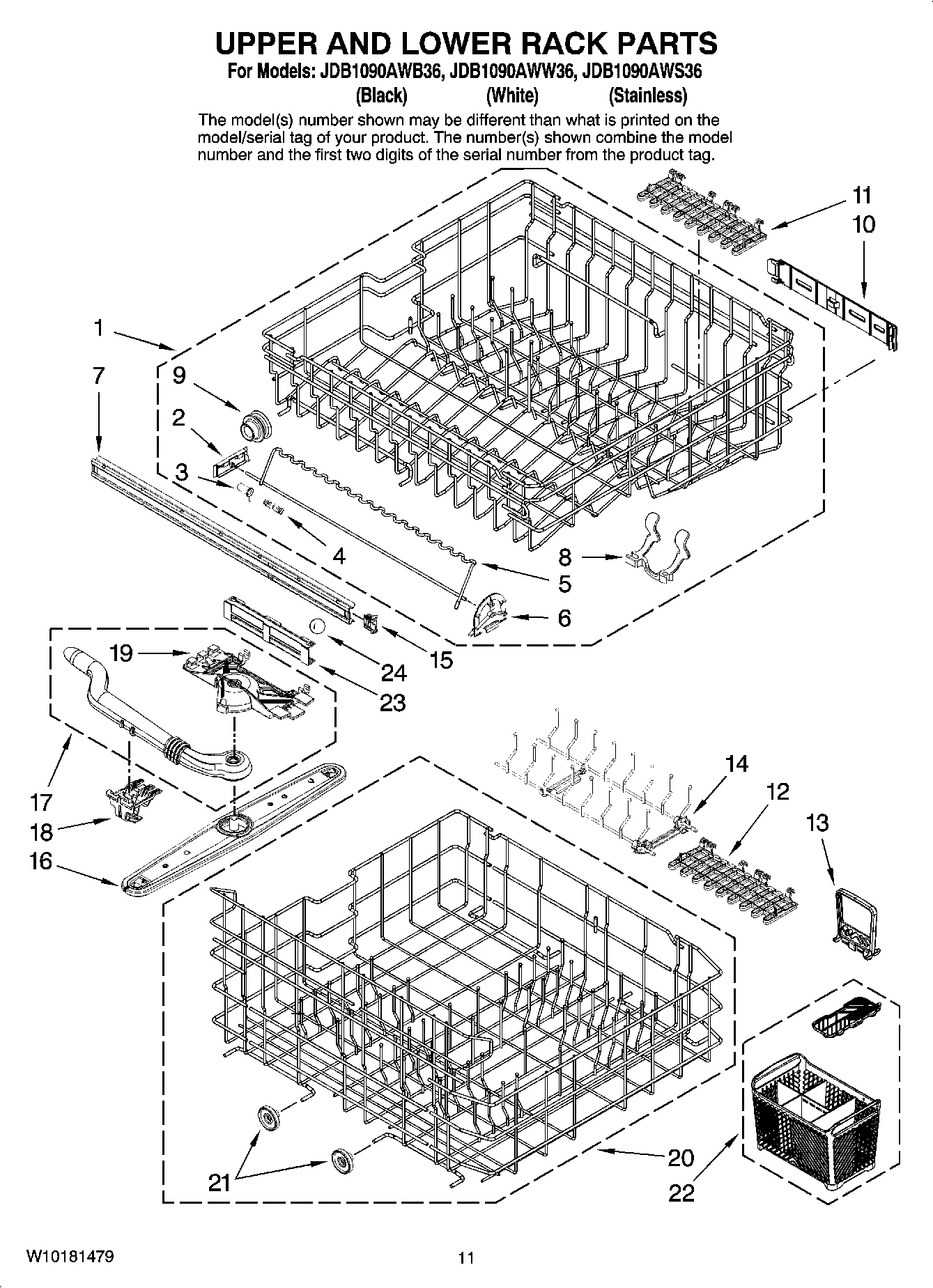

JDB1090AWB36 09 – UPPER AND LOWER RACK PARTS
Written by
in
JDB1090AWB36 09 – UPPER AND LOWER RACK PARTS
Products
Position
Product
1
MAY 99003216
2
MAY 99003109
3
MAY 99003111
4
MAY 99002715
5
MAY 99003110
6
MAY 99003108
7
MAY 99003066
8
MAY 99003107
9
WP99003148 Whirlpool Dishwasher Wheel
10
MAY 99003063
11
MAY 99003065
12
MAY 99003074
13
MAY 99003077
14
WP99003496 Whirlpool Convertible Row Tine
15
WP99003282 Whirlpool Dishwasher Rail Stop
16
WP99003070 Whirlpool Dishwasher Wash Arm
17
MAY 99003142
18
99003071 Whirlpool Dishwasher Upper Wash Manifold Clip
19
MAY 99003072
20
MAY 99003073
21
WP99003149 Whirlpool Rack Wheel
22
WP6-918873 Whirlpool Silverware Basket
23
MAY 99003069
24
WP99003068 Whirlpool Dishwasher Bearing
←
