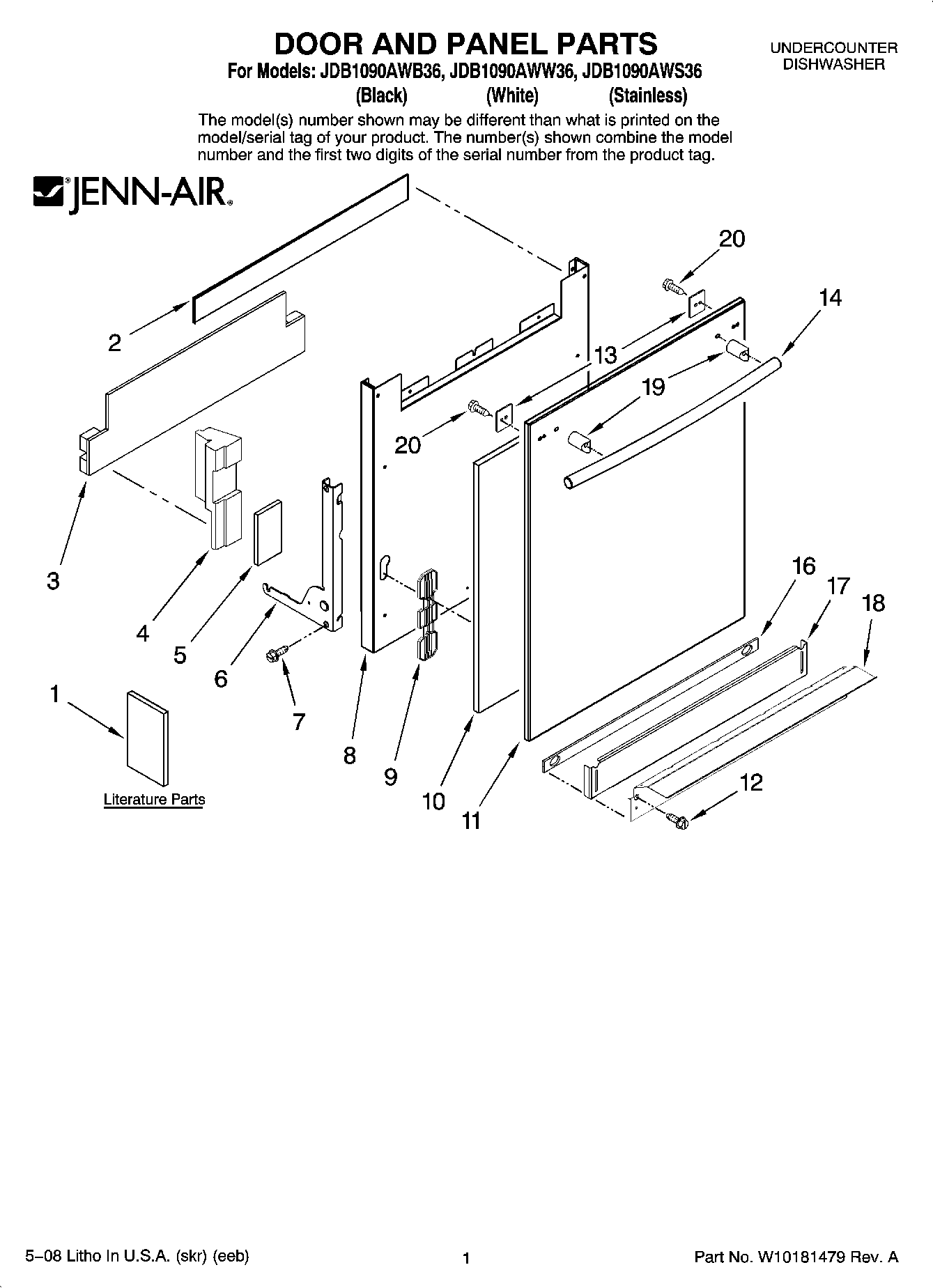

JDB1090AWS36 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10164024
1	MAY W10114314
1	MAY W10158012
2	DAMPER (2`` X 20``)
3	MAY 99003048
4	MAY 99003047
4	MAY 99003046
5	MAY 99003049
6	WPW10118637 Whirlpool Dishwasher Bracket
6	MAY 99002929
7	MAY 99001075
8	SUPPORT, INNER DOOR (BLK)
9	MAY 99003095
10	MAY 99003093
11	MAY 99003090
11	MAY W10166535
11	MAY 99003092
12	WP6-912366 Whirlpool Dishwasher Screw
12	SCREW, ACCESS PANEL
13	W10167659 Whirlpool Dishwasher Plate
14	MAY W10191101
16	Damper, Toe Panel (Black)
16	MAY 99002698
17	MAY 99002766
17	PANEL, TOE (W/DAMPER-BLK)
18	SUPPORT, FRONT (W/SEALS)(BLK)
18	SUPPORT, FRONT (W/SEALS)(WHT)
19	MAY Y6918667
20	SCREW-TRUSS HEAD 1/4-20 T20
