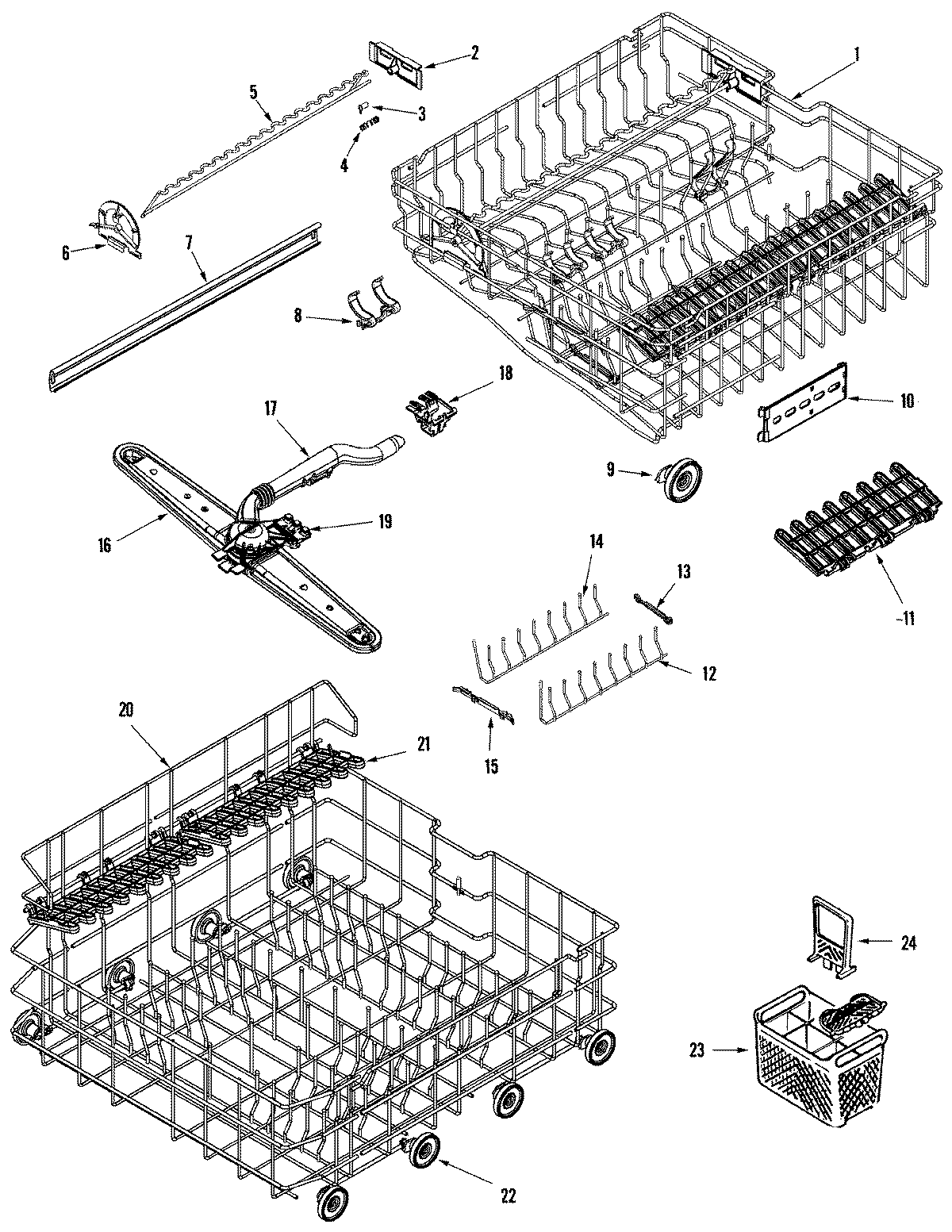

JDB1090AWW 03 – RAIL & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003216
1	MAY 99003062
2	MAY 99003109
3	MAY 99003111
4	MAY 99002715
5	MAY 99003110
6	MAY 99003108
7	MAY 99003069
7	WP99003068 Whirlpool Dishwasher Bearing
7	MAY 99003066
7	WP99003282 Whirlpool Dishwasher Rail Stop
8	MAY 99003107
9	WP99003148 Whirlpool Dishwasher Wheel
10	MAY 99003063
11	MAY 99003065
12	WP99003496 Whirlpool Convertible Row Tine
13	WP99003105 Whirlpool Dishwasher Fold Away Tine Pivot Clip
15	WP99003106 Whirlpool Latch Assembly
15	MAY W10257558
16	WP99003070 Whirlpool Dishwasher Wash Arm
17	MAY 99003142
18	99003071 Whirlpool Dishwasher Upper Wash Manifold Clip
19	MAY 99003072
20	MAY 99003073
21	MAY 99003074
22	WP99003149 Whirlpool Rack Wheel
23	WP6-918873 Whirlpool Silverware Basket
