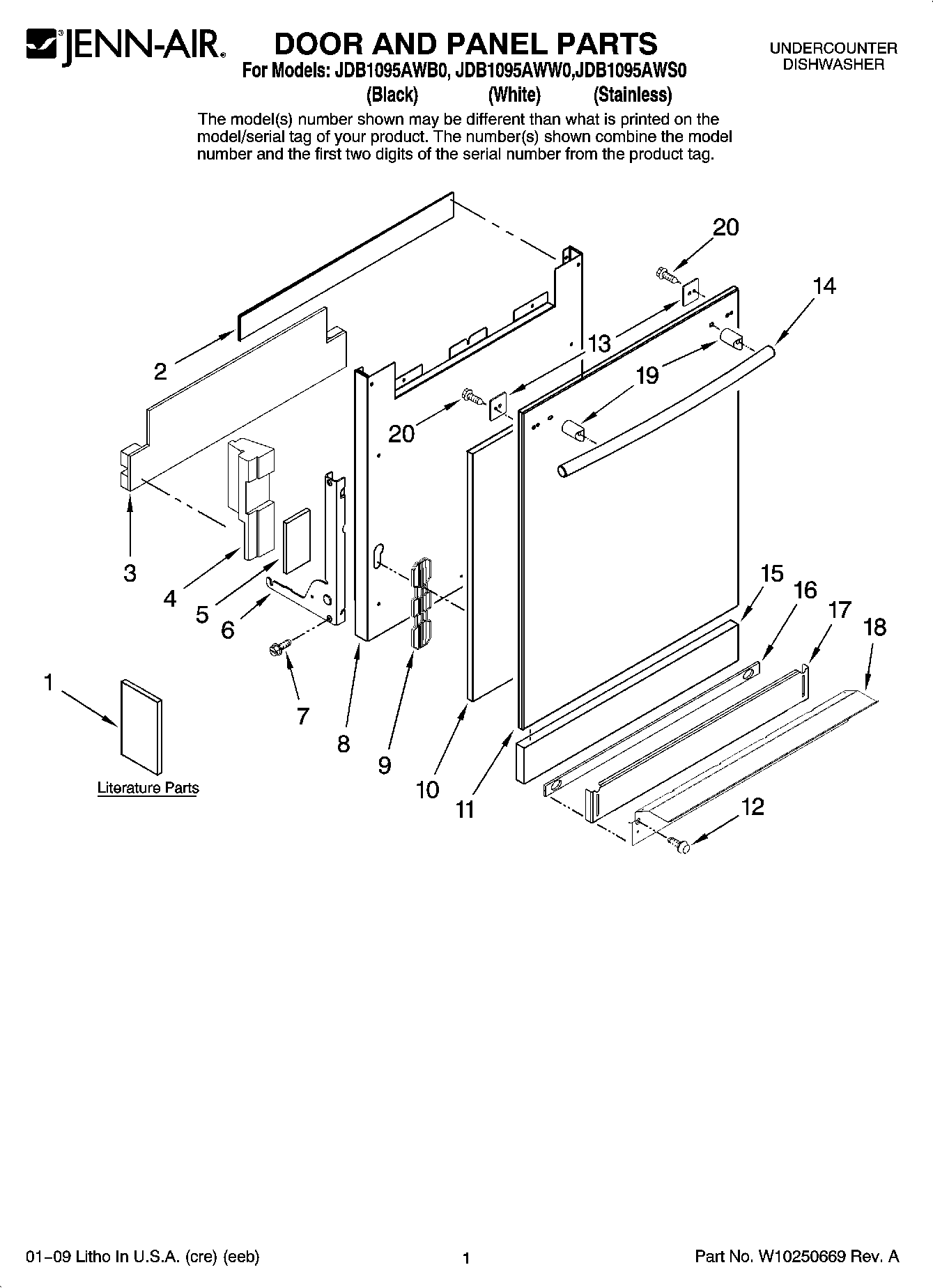

JDB1095AWB0 01 – DOOR AND PANEL PARTS

JDB1095AWB0 01 – DOOR AND PANEL PARTS

Written by

in

JDB1095AWB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10208028
1MAY W10157785
1MAY W10158012
2DAMPER (2“ X 20“)
3MAY 99003048
4MAY 99003047
4MAY 99003046
5MAY 99003049
6MAY 99002929
6WPW10118637 Whirlpool Dishwasher Bracket
7MAY 99001075
8SUPPORT, INNER DOOR (BLK)
9MAY 99003095
10MAY 99003093
11MAY 99003092
11MAY 99003090
11MAY W10166535
12WP6-912366 Whirlpool Dishwasher Screw
12SCREW, ACCESS PANEL
13MAY W10167659
14MAY W10191101
15WP6-920587 Whirlpool Dishwasher Shield
16MAY 99002698
16Damper, Toe Panel (Black)
17PANEL, TOE (W/DAMPER-BLK)
17MAY 99002766
18SUPPORT, FRONT (W/SEALS)(BLK)
18SUPPORT, FRONT (W/SEALS)(WHT)
19MAY 6918667
20SCREW-TRUSS HEAD 1/4-20 T20
