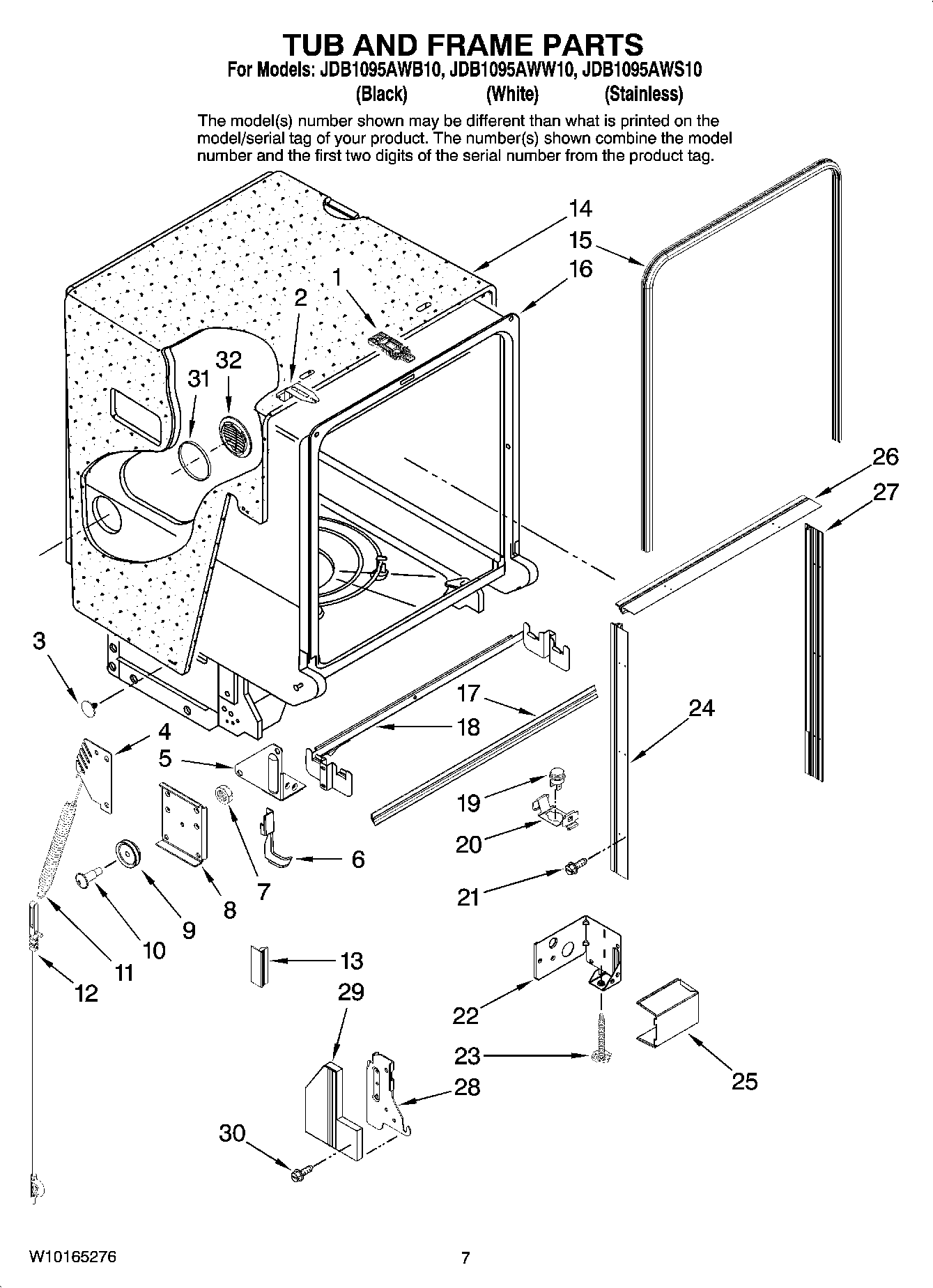

JDB1095AWB10 07 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10119337
2	MAY 99002648
3	FASTENER, INSULATION
4	6-918346 Whirlpool Dishwasher Bracket
5	BRACKET, SUPPORT (LT)
6	MAY 99003038
6	WP99003039 Whirlpool Dishwasher Trim
7	MAY 99003688
8	MAY 99003686
9	WP99002608 Whirlpool Dishwasher Cable Roller
10	MAY 99003687
11	WP99003118 Whirlpool Door Spring
12	WP99003446 Whirlpool Door Cable
13	GAP SEAL, TOE KICK (BLK)
13	GAP SEAL, TOE KICK (WHT)
14	WPW10223013 Whirlpool Dishwasher Insulation Pad
15	WP99003337 Whirlpool Door Seal
16	Tub Assembly
17	WP99003041 Whirlpool Dishwasher Trim
18	MAY 99003087
19	MAY 99002633
20	MAY 99001008
21	MAY 99002692
22	BRACKET, JUNCTION BOX SUPPORT
23	WPW10143258 Whirlpool Dishwasher Leg Leveler
24	MAY 99003035
25	MAY 99002638
26	MAY 99003036
27	MAY 99003034
28	MAY W10117485
28	MAY W10117484
29	BACKER, HINGE SEAL (RT)
29	MAY 99003451
30	MAY 99003155
31	WP99002150 Whirlpool Dishwasher Air Seal
32	W10259618 Whirlpool Dishwasher Deflector
