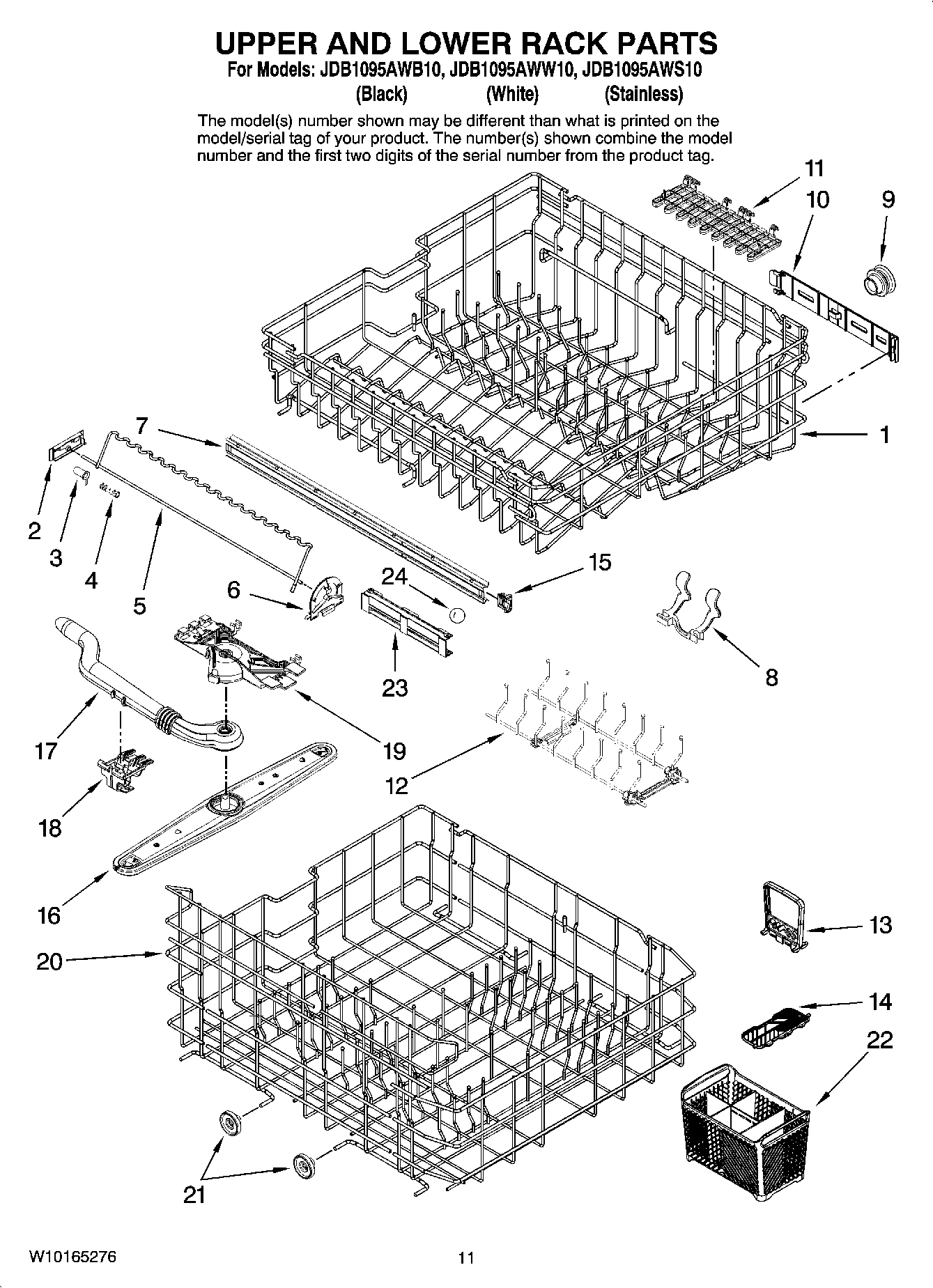

JDB1095AWB10 09 – UPPER AND LOWER RACK PARTS

JDB1095AWB10 09 – UPPER AND LOWER RACK PARTS

Written by

in

JDB1095AWB10 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1MAY W10137104
2VARILOCK (REAR)
3MAY 99003245
4MAY 99002715
5MAY 99003246
6VARILOCK (FRT)
7MAY 99003066
8MAY 99003249
9WP99003148 Whirlpool Dishwasher Wheel
10MAY 99003063
11SHELF, CUP (UPR)
12WP99003496 Whirlpool Convertible Row Tine
13HANDLE, SILVERWARE BASKET (NOT USED IN SERIES 42,44,45)
14MAY W10141603
15WP99003282 Whirlpool Dishwasher Rail Stop
16WP99003070 Whirlpool Dishwasher Wash Arm
17MAY 99003142
1899003071 Whirlpool Dishwasher Upper Wash Manifold Clip
19MAY 99003072
20MAY W10137100
21WP99003149 Whirlpool Rack Wheel
22MAY W10141602
23MAY 99003069
24WP99003068 Whirlpool Dishwasher Bearing
