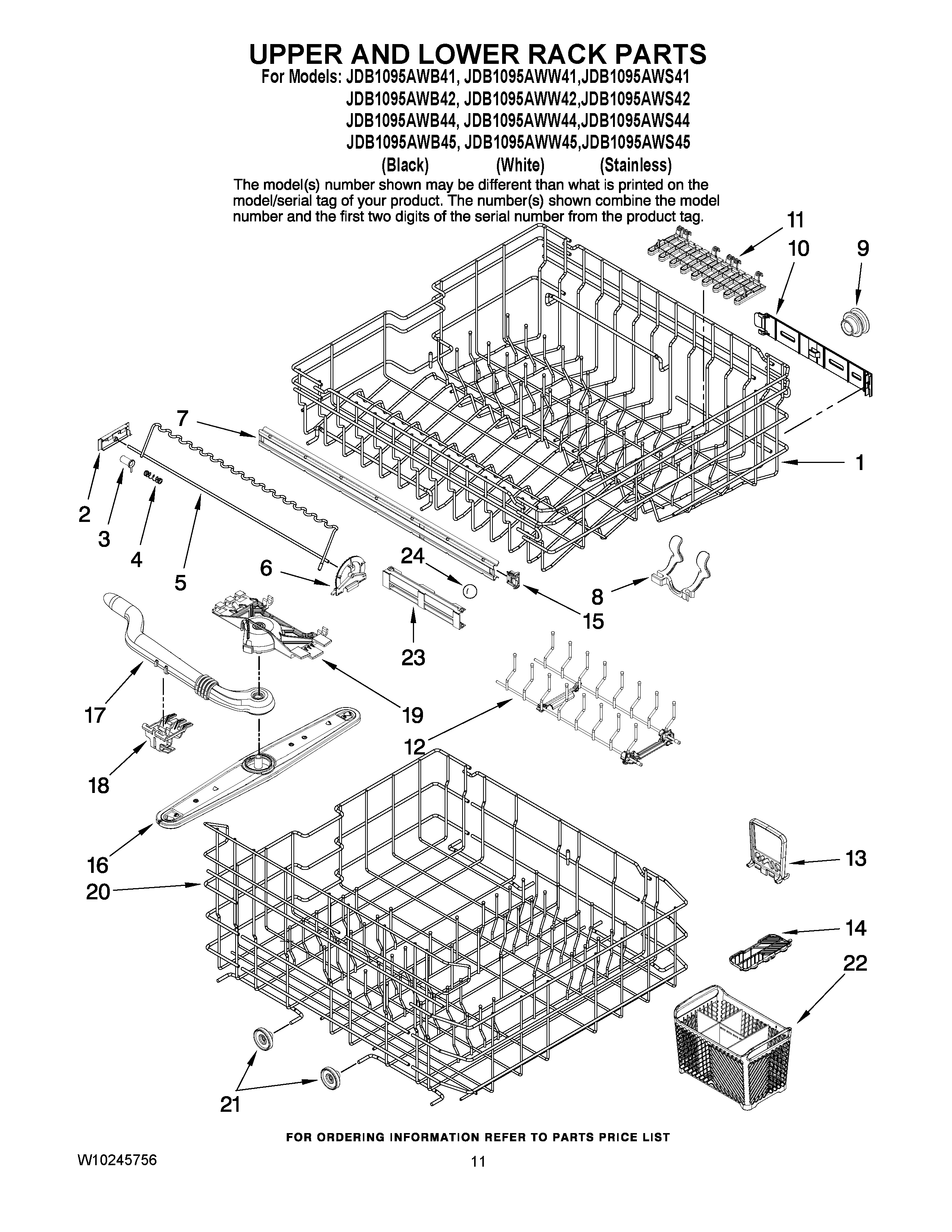

JDB1095AWB45 09 – UPPER AND LOWER RACK PARTS

Products

Position	Product
1	MAY W10137104
2	VARILOCK (REAR)
3	MAY 99003245
4	MAY 99002715
5	MAY 99003246
6	VARILOCK (FRT)
7	MAY 99003066
8	MAY 99003249
9	WP99003148 Whirlpool Dishwasher Wheel
10	MAY 99003063
11	SHELF, CUP (UPR)
12	WP99003496 Whirlpool Convertible Row Tine
13	HANDLE, SILVERWARE BASKET (NOT USED IN SERIES 42,44,45)
14	MAY W10141603
15	WP99003282 Whirlpool Dishwasher Rail Stop
16	WP99003070 Whirlpool Dishwasher Wash Arm
17	MAY 99003142
18	99003071 Whirlpool Dishwasher Upper Wash Manifold Clip
19	MAY 99003072
20	MAY W10137100
21	WP99003149 Whirlpool Rack Wheel
22	MAY W10141602
23	MAY 99003069
24	WP99003068 Whirlpool Dishwasher Bearing
