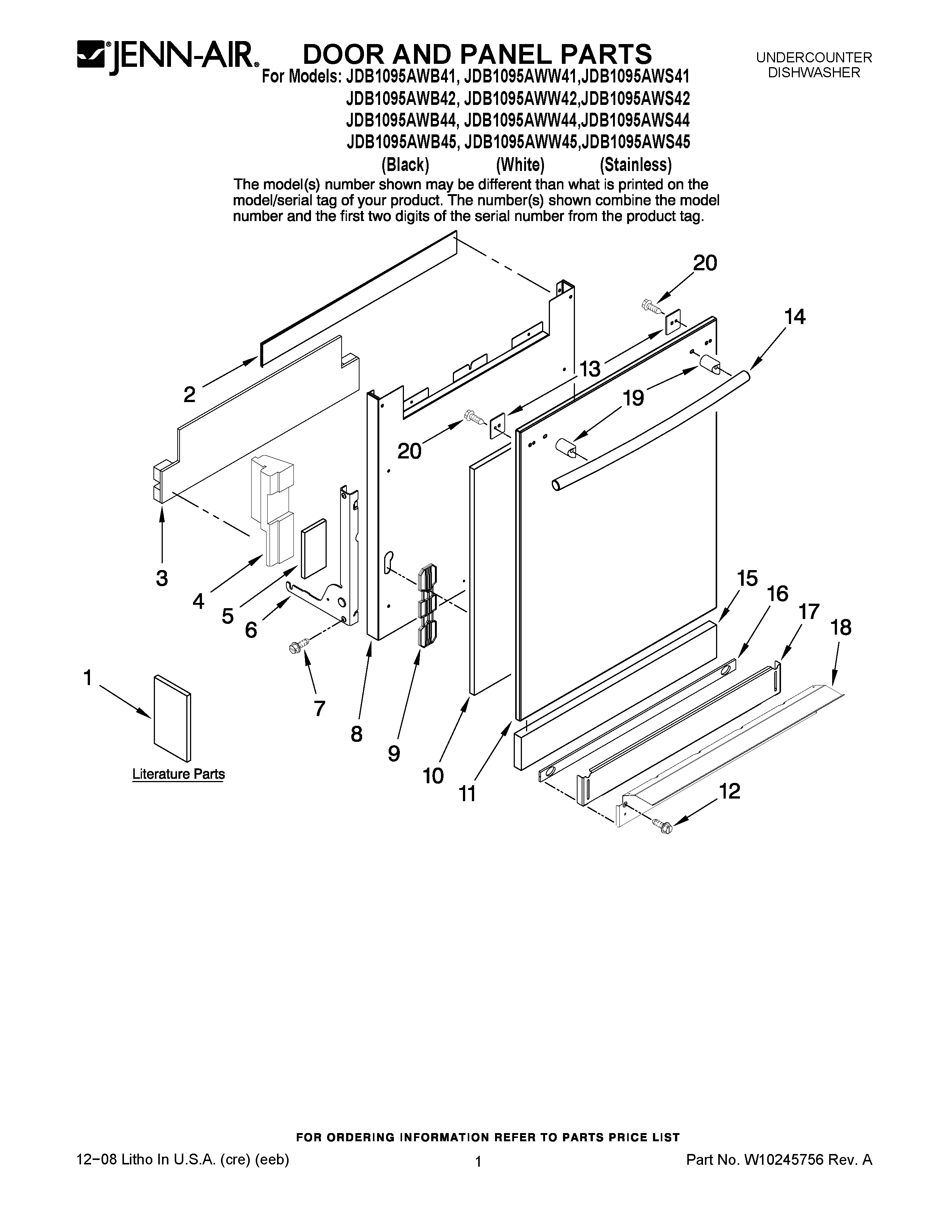

JDB1095AWS45 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10164024
1	MAY W10119999
1	MAY W10158012
2	DAMPER (2`` X 20``)
3	MAY 99003048
4	MAY 99003047
4	MAY 99003046
5	MAY 99003049
6	WPW10118637 Whirlpool Dishwasher Bracket
6	MAY 99002929
7	MAY 99001075
8	SUPPORT, INNER DOOR (BLK)
9	MAY 99003095
10	MAY 99003093
11	MAY 99003090
11	MAY W10166535
11	MAY 99003092
12	SCREW, ACCESS PANEL
12	WP6-912366 Whirlpool Dishwasher Screw
13	W10167659 Whirlpool Dishwasher Plate
14	MAY 99003088
15	WP6-920587 Whirlpool Dishwasher Shield
16	Damper, Toe Panel (Black)
16	MAY 99002698
17	MAY 99002766
17	PANEL, TOE (W/DAMPER-BLK)
18	SUPPORT, FRONT (W/SEALS)(BLK)
18	SUPPORT, FRONT (W/SEALS)(WHT)
20	SCREW-TRUSS HEAD 1/4-20 T20
