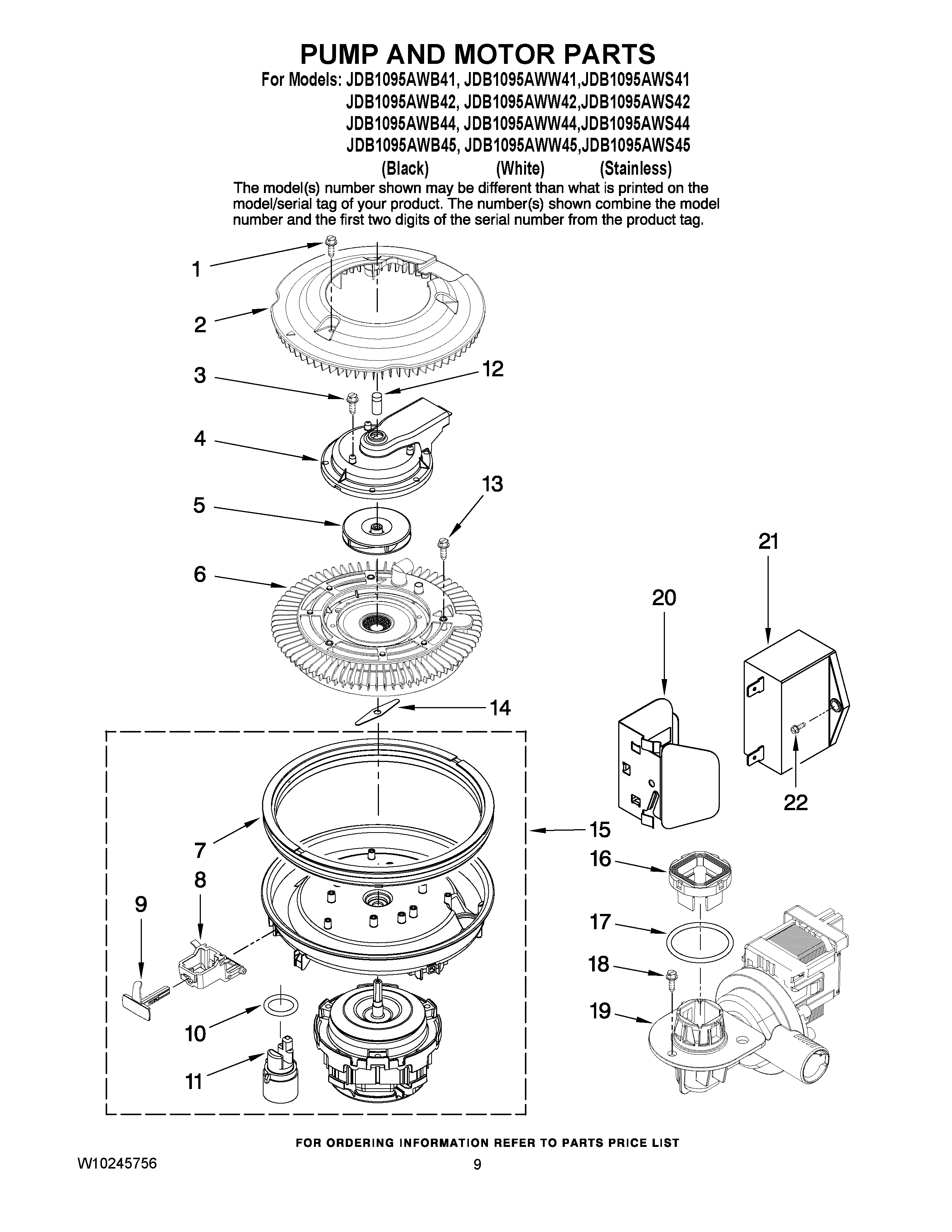

JDB1095AWW42 08 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MAY 99002666
2	GUARD, FILTER (DARK GREY)
3	SCREW, STAINLESS PAN HEAD
4	MAY 99003145
5	WP99002659 Whirlpool Impeller
6	WPW10192799 Whirlpool Dishwasher Accumulator
7	12002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
8	MAY 99003056
9	MAY 99003057
10	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
11	MAY W10120019
12	MAY 99003697
13	SCREW, DISCHARGE HOUSING
14	MAY 99003427
15	Wash Motor Assy.
16	MAY 99003309
17	MAY 99002857
18	SCREW, TRUSS HEAD (10-18X.75)
19	MAY W10200518
20	MAY 99003440
21	CAPACITOR, MOTOR
22	SCREW 10-32X.400 (T-20 HEAD)
