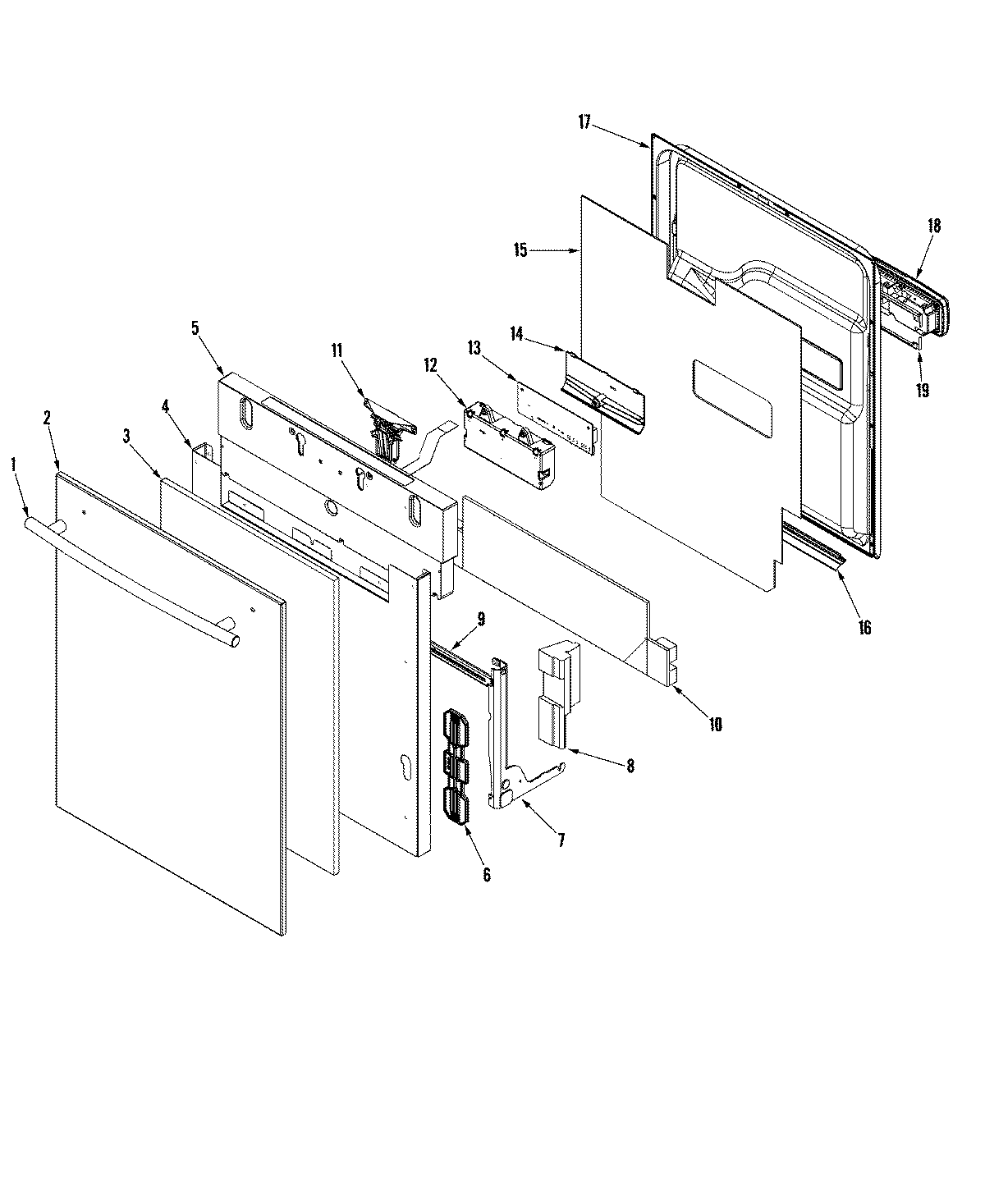

JDB1100AWS 01 – CONTROL PANEL & DOOR

Products

Position	Product
1	MAY 99003088
1	W10167659 Whirlpool Dishwasher Plate
1	SCREW-TRUSS HEAD 1/4-20 T20
2	MAY 99003091
3	MAY 99003093
4	SUPPORT, INNER DOOR (BLK)
4	MAY 99002934
5	MAY 99003139
6	MAY 99003095
6	99003096 Whirlpool Dishwasher Panel Fastener
7	MAY 99003051
7	MAY 99003049
7	MAY 99002929
7	WPW10118637 Whirlpool Dishwasher Bracket
7	MAY 99001075
8	MAY 99003046
8	MAY 99003047
9	MAY 99002604
10	MAY 99003048
11	WPW10275768 Whirlpool Door Latch
11	MAY 99002751
12	WP99002576 Whirlpool Dishwasher Cover
13	MAY 99003432
13	MAY 99003614
13	MAY 99003158
14	MAY 99002575
15	MAY 99003044
16	MAY 99003045
17	MAY 99003140
17	WPY912620 Whirlpool Dishwasher Screw
18	MAY 99003060
18	MAY 99003059
18	MAY 99002270
19	SCREW, No.8X1/2 HEX WASHER HEAD
19	MAY 99002465
