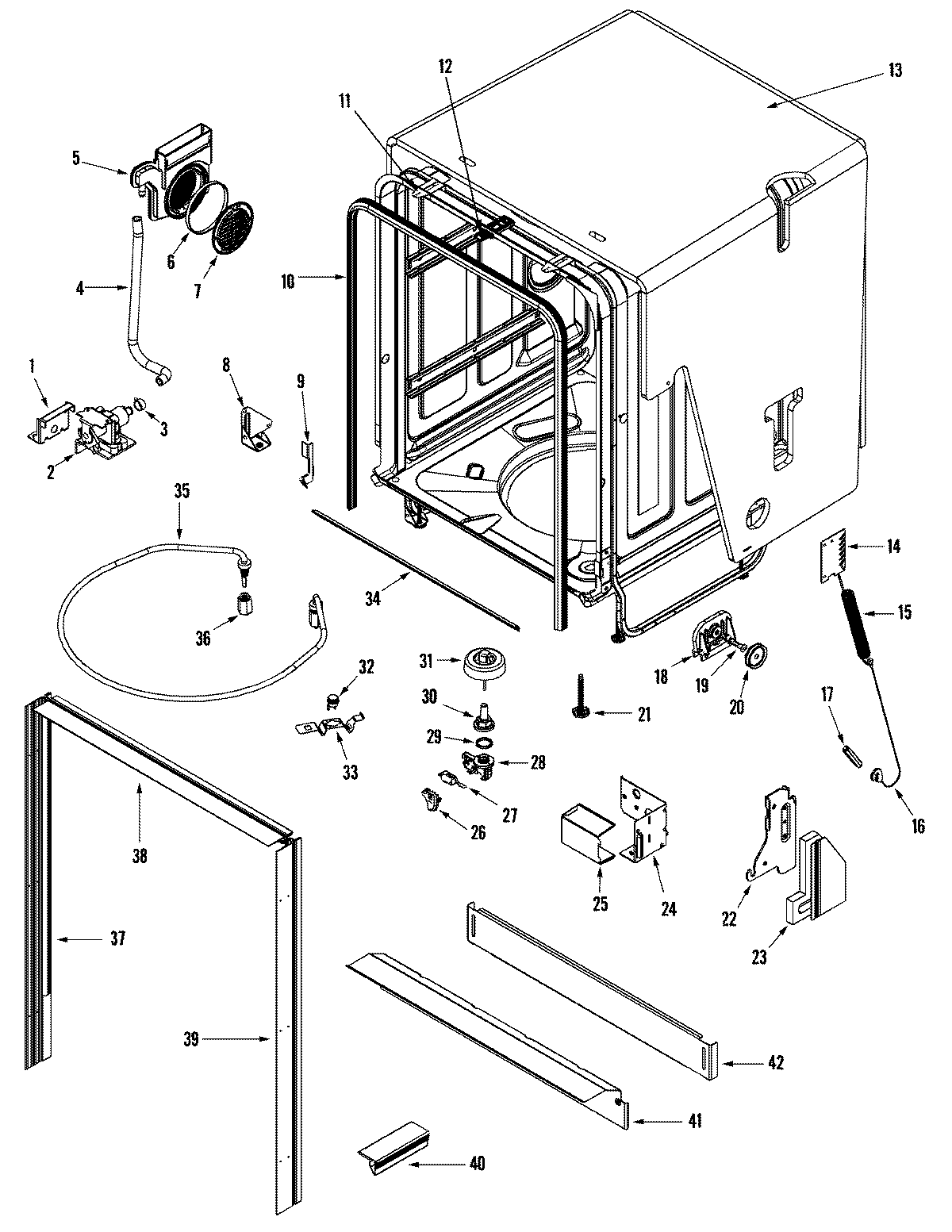

JDB1100AWS 05 – TUB

Products

Position	Product
1	MAY 99002629
2	W11082871 Whirlpool Dishwasher Inlet Valve
2	MAY 99002553
3	WP596669 Whirlpool Hose Clamp
4	WP99002852 Whirlpool Dishwasher Injector Hose
5	MAY 99003028
6	WP99002150 Whirlpool Dishwasher Air Seal
7	MAY 99003078
8	BRACKET, SUPPORT (LT)
9	MAY 99003038
9	WP99003039 Whirlpool Dishwasher Trim
10	WP99003337 Whirlpool Door Seal
11	MAY 99002648
12	MAY 99003357
12	WP99002644 Whirlpool Dishwasher Door Striker
13	FASTENER, INSULATION
13	WPW10223013 Whirlpool Dishwasher Insulation Pad
14	6-918346 Whirlpool Dishwasher Bracket
15	WP99003118 Whirlpool Door Spring
16	WP99003446 Whirlpool Door Cable
18	MAY 99003686
18	MAY 99002607
19	MAY 99002609
19	MAY 99003687
19	MAY 99003688
20	WP99002608 Whirlpool Dishwasher Cable Roller
21	WPW10143258 Whirlpool Dishwasher Leg Leveler
22	MAY 99002927
22	MAY 99002928
23	BACKER, HINGE SEAL (RT)
23	BACKER, HINGE SEAL (LT)
24	BRACKET, JUNCTION BOX SUPPORT
24	SCREW 10-32X.400 (T-20 HEAD)
25	MAY 912365
25	MAY 99002638
26	MAY 99003079
27	MAY 99002631
28	MAY 99003031
29	W10833055 Whirlpool Dishwasher Standpipe
30	WPW10268755 Whirlpool Dishwasher Float
31	MAY 99003080
32	MAY 99002633
33	MAY 99001008
34	WP99003041 Whirlpool Dishwasher Trim
35	MAY 99002973
35	W10283681 Whirlpool Dishwasher Heater
36	MAY 99003033
37	MAY 99003034
38	MAY 99003036
39	MAY 99002692
39	MAY 99003035
40	GAP SEAL, TOE KICK (BLK)
41	SUPPORT, FRONT (W/SEALS)(BLK)
42	Damper, Toe Panel (Black)
42	PANEL, TOE (W/DAMPER-BLK)
42	WP6-912366 Whirlpool Dishwasher Screw
43	MAY 99003087
