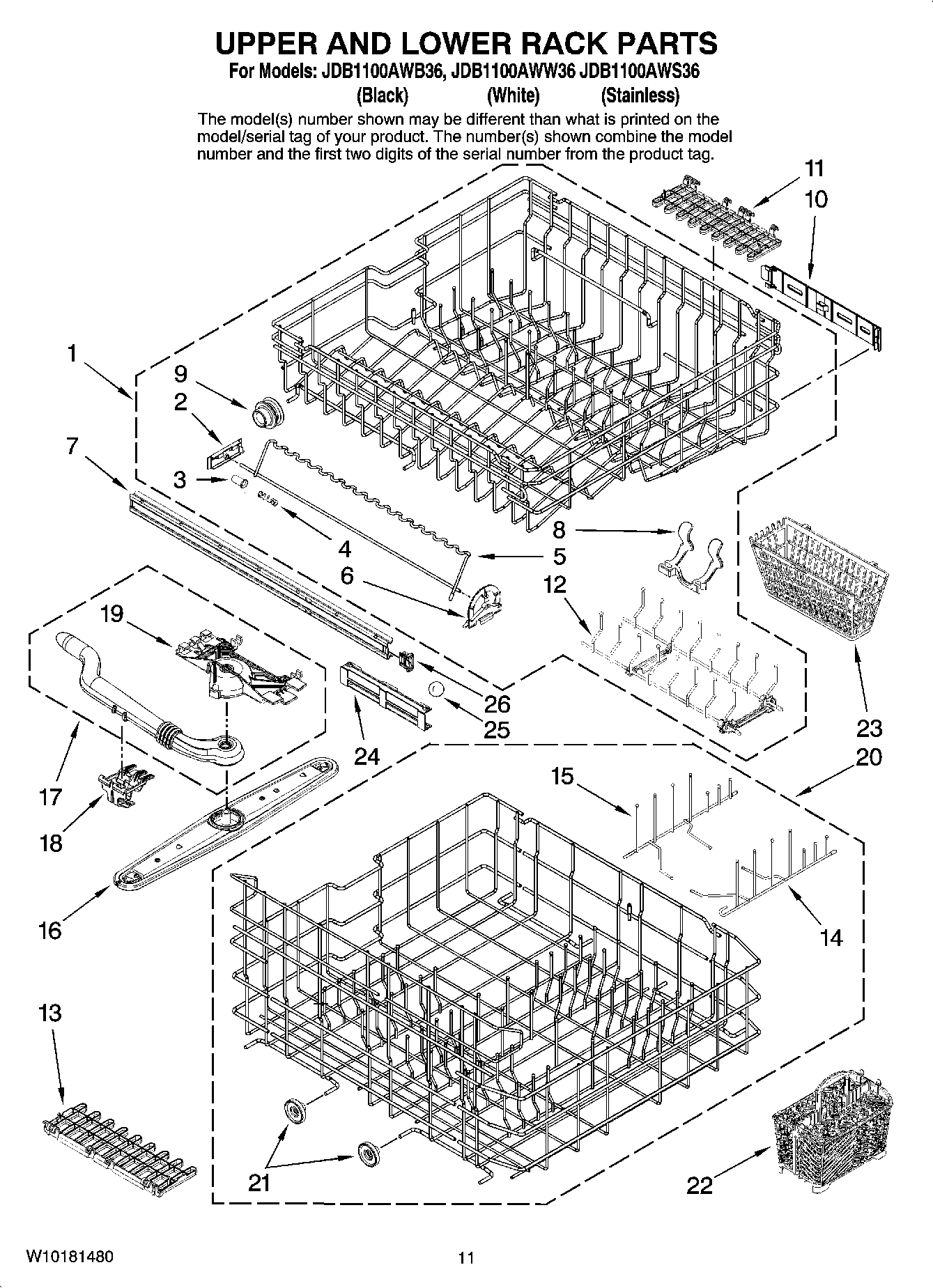

JDB1100AWS36 09 – UPPER AND LOWER RACK PARTS

JDB1100AWS36 09 – UPPER AND LOWER RACK PARTS

Written by

in

JDB1100AWS36 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1MAY W10120536
2MAY 99003109
3MAY 99003111
4MAY 99002715
5MAY 99003110
6MAY 99003108
7MAY 99003066
8MAY 99003107
9WP99003148 Whirlpool Dishwasher Wheel
10MAY 99003063
11MAY 99003065
12WP99003496 Whirlpool Convertible Row Tine
13MAY 99003074
14MAY W10178187
15MAY W10178186
16WP99003070 Whirlpool Dishwasher Wash Arm
17MAY 99003142
1899003071 Whirlpool Dishwasher Upper Wash Manifold Clip
19MAY 99003072
20MAY W10120551
21WP99003149 Whirlpool Rack Wheel
22WP6-918873 Whirlpool Silverware Basket
23W11175758 Whirlpool Dishwasher Basket Ware
24MAY 99003069
25WP99003068 Whirlpool Dishwasher Bearing
26WP99003282 Whirlpool Dishwasher Rail Stop
