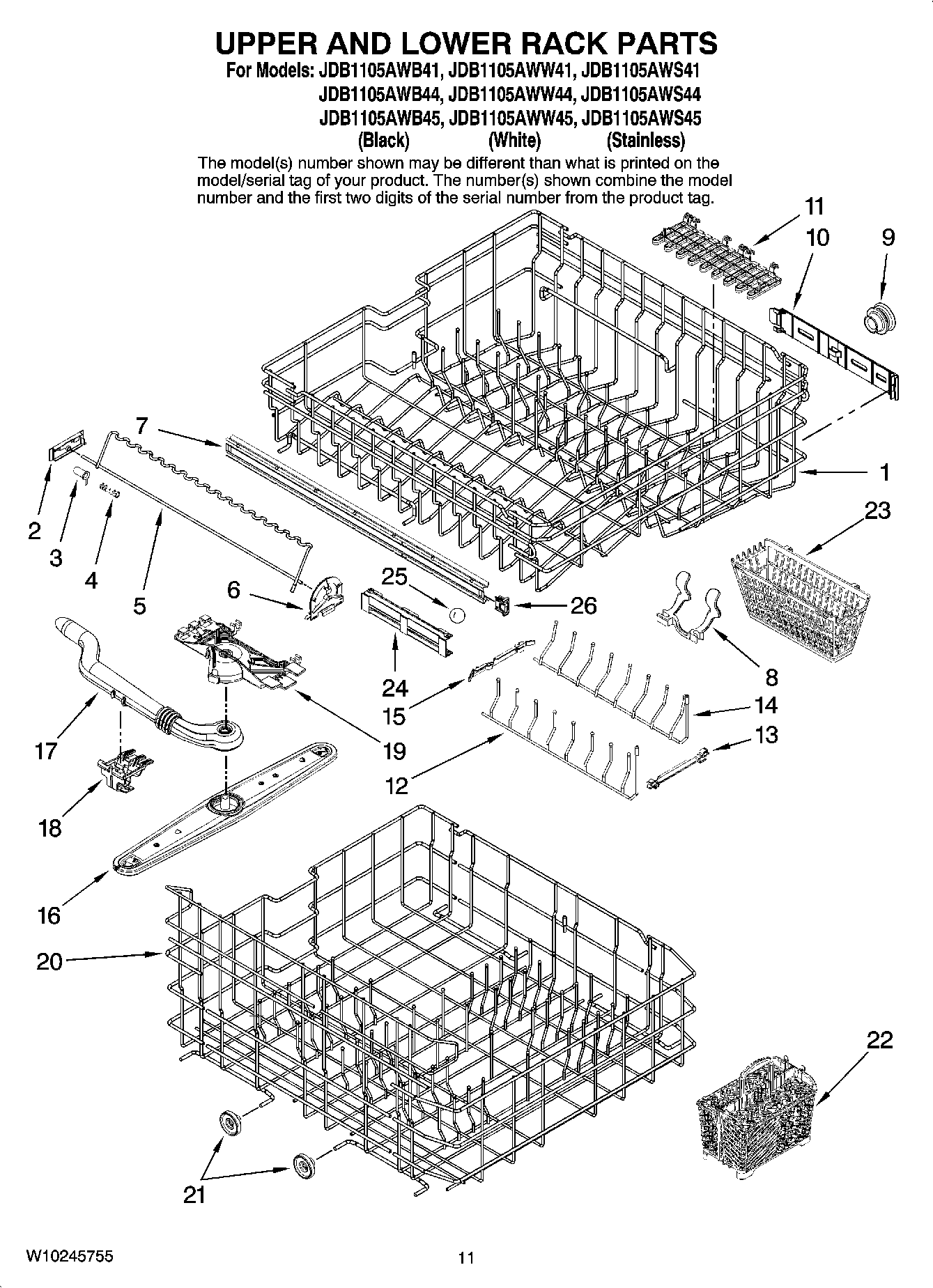

JDB1105AWS44 09 – UPPER AND LOWER RACK PARTS

JDB1105AWS44 09 – UPPER AND LOWER RACK PARTS

Written by

in

JDB1105AWS44 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1MAY W10137104
2VARILOCK (REAR)
3MAY 99003245
4MAY 99002715
5MAY 99003246
6VARILOCK (FRT)
7MAY 99003066
8MAY 99003249
9WP99003148 Whirlpool Dishwasher Wheel
10MAY 99003063
11SHELF, CUP (UPR)
12TINE, FOLD AWAY (RT)
13MAY 99003254
14TINE, FOLD AWAY (LT)
15MAY 99003256
16WP99003070 Whirlpool Dishwasher Wash Arm
17MAY 99003142
1899003071 Whirlpool Dishwasher Upper Wash Manifold Clip
19MAY 99003072
20MAY W10137099
21WP99003149 Whirlpool Rack Wheel
22BASKET, SILVERWARE (SPLIT/FIT)
23MAY 99003248
24MAY 99003069
25WP99003068 Whirlpool Dishwasher Bearing
26WP99003282 Whirlpool Dishwasher Rail Stop
