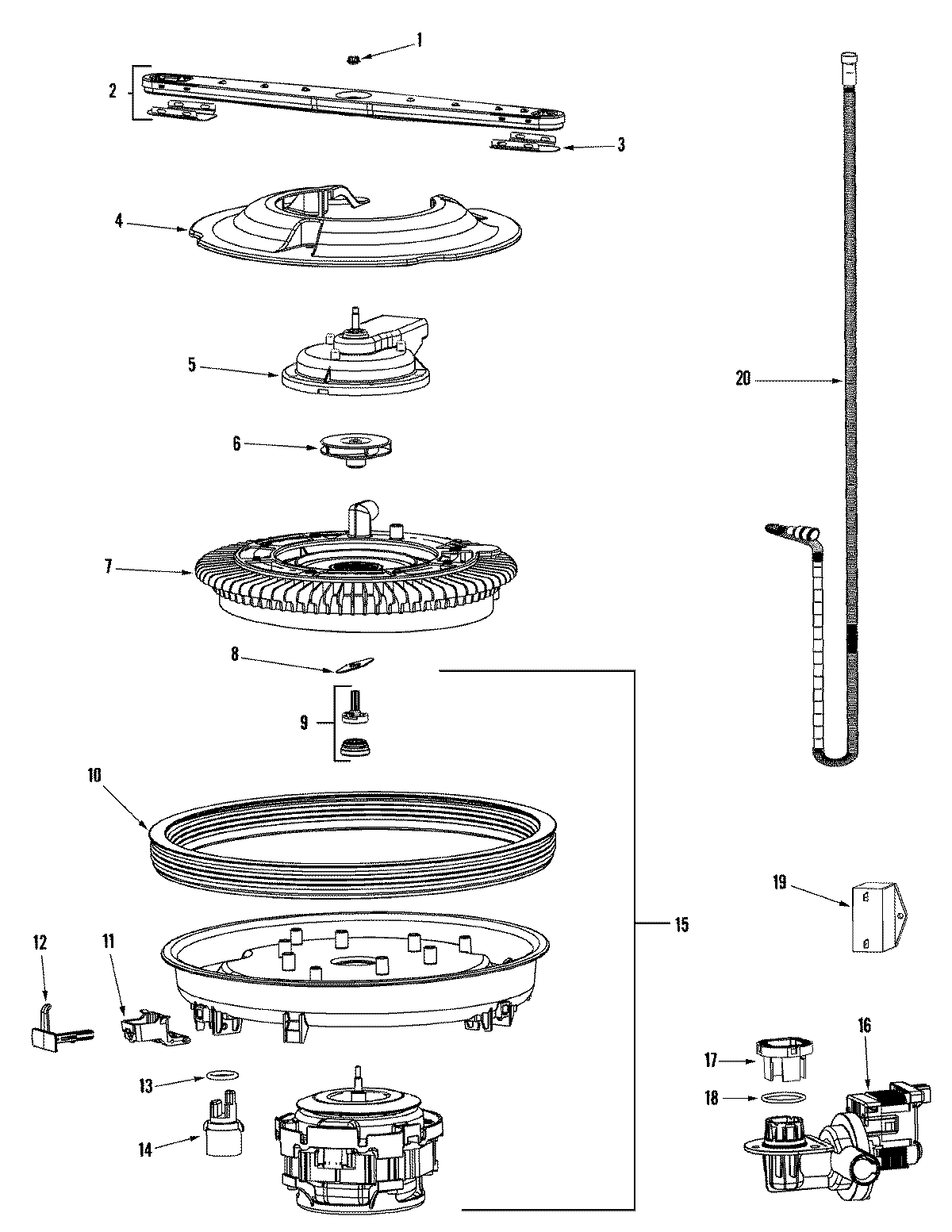

JDB1250AWP 02 – PUMP & MOTOR

Products

Position	Product
1	CAP, WASH ARM (DARK GRAY)
2	WP6-918806 Whirlpool Dishwasher Lower Spray Arm
3	MAY 99002653
4	MAY 99002666
4	MAY 99003084
5	SCREW, DISCHARGE HOUSING
5	MAY 99003145
6	MAY 99002987
6	WP99002659 Whirlpool Impeller
7	MAY 99003235
7	SCREW, STAINLESS PAN HEAD
8	MAY 99003427
9	MAY 99002981
10	12002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
11	MAY 99003056
12	MAY 99003057
13	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
14	MAY 99003613
14	SCREW, No.8X1/2 HEX WASHER HEAD
14	WPW10120019 Whirlpool Dishwasher Sensor
15	WASH MOTOR ASSY SEAL NOT INCL
15	MAY 6-919963
16	DRAIN PUMP ASSEMBLY
16	SCREW, TRUSS HEAD (10-18X.75)
16	MAY 99002815
17	MAY 99003058
18	MAY 99002857
19	CAPACITOR, MOTOR
19	SCREW 10-32X.400 (T-20 HEAD)
20	WP99002656 Whirlpool Dishwasher Drain Clamp
20	WP99002652 Whirlpool Drain Hose
